Home ProductsFROGED FITTING ASME B16.11

ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs

Certification
China Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd. certification
China Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd. certification
I'm Online Chat Now

ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs

ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs
ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs

Large Image :  ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO9001 , PED CE AD2000 W0
Model Number: 1/2"-4"
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 1USD-100USD
Packaging Details: PLYWOODEN CASE
Delivery Time: 15-30DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 500TONS ONE MONTH

ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs

Description

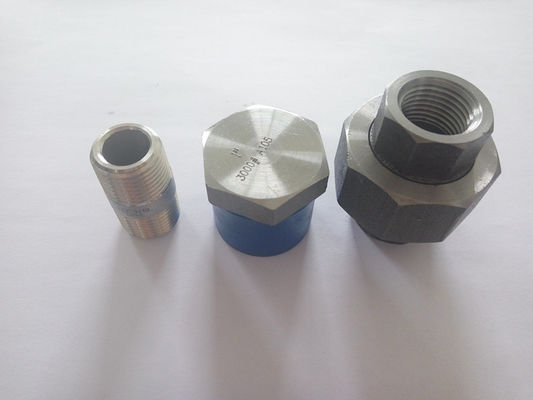

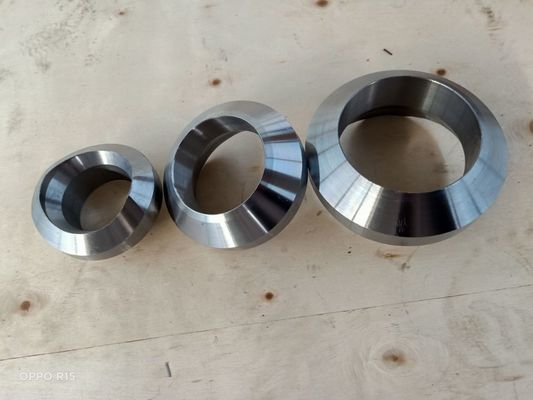

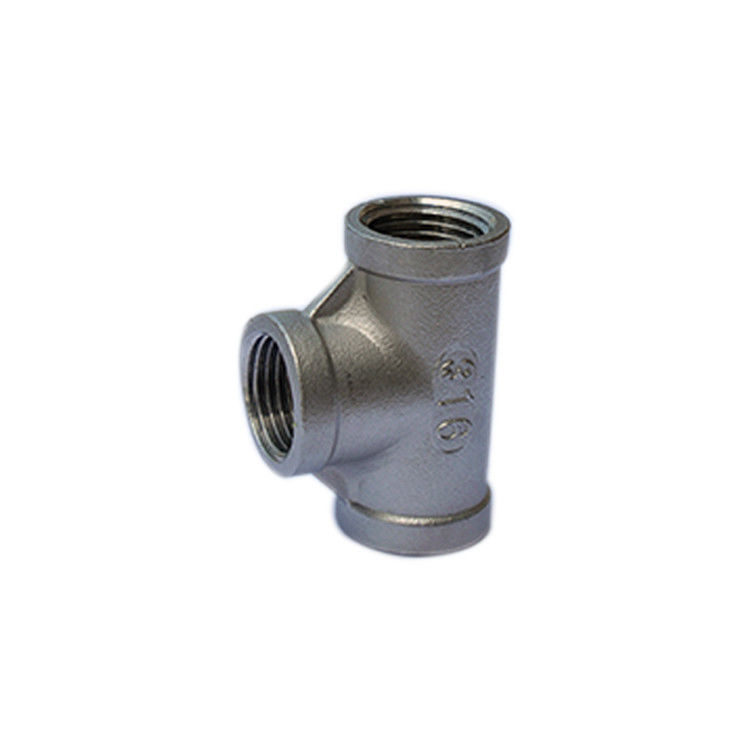

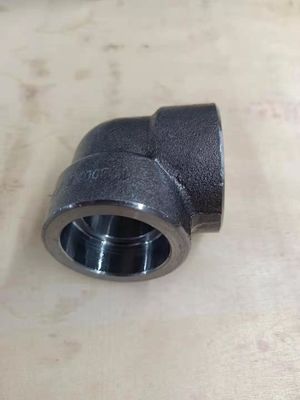

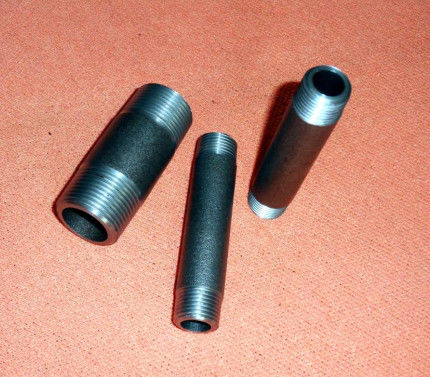

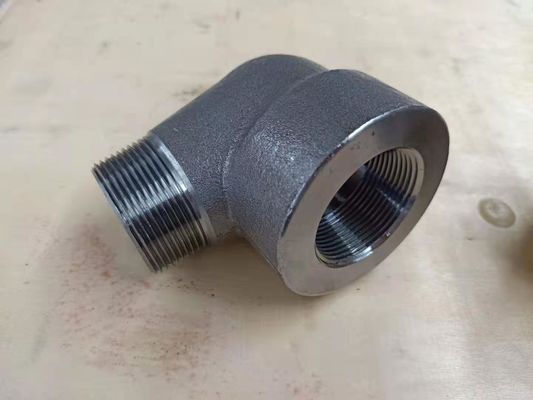

Product Type: SOCKET-WELDING PIPE FITTINGS AND THREADED PIPE FITTINGS Main Products: ELBOW ,TEE , FULL COUPLING , HALF COUPLING , UNION ,LATERAL CROSS CAP STREET ELBOW PLUG HEX HEAD BUSHING , HEX HEAD NIPPLE, NIPPLES SWAGE. WELDOLET
Product Form: SOCKET WELDED , THE THREAD LINK TYPE Material: 20# ,A105, 16MN ,A350LF2 A420 WPL6 , SS304/316
Pressure: 3000lbs ,6000lbs ,9000lbs,2000lbs Sch80, Sch160 Xxs Standard: ANSI B16.11 MSS-SP -79 MSS-SP-92 JIS B2316
High Light:

B16.11 Socket Welding Pipe Fittings

,

2000lbs Socket Welding Pipe Fittings

,

9000lbs Threaded Pipe Fittings

FROGED FITTING ASME B16.11 SOCKET-WELDING PIPE FITTINGS AND THREADED PIPE FITTINGS



Manufacturing Standards of ASME B16.11 Threaded Fittings

ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 Factory-Made Wrought Buttwelding Fittings
ASME B16.11 Forged Fittings, Socket – Welding and Threaded
MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95 Swage(d) Nipples and Bull Plugs
BS3799 Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry



Material & Grades of Stainless Steel Threaded Pipe Fittings Manufacturers  :

Threaded ASME B16.11 Fittings Stainless Steel – ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

The material for forged stainless steel fittings conforms to ASME A182
The dimensions for forged stainless steel fittings conform to ASME B16.11
NPT Threads conform to ASME B1.20.1

Forged Threaded Carbon Steel Fittings

Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB

The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11
NPT Threads conform to ASME B1.20.1



Forged Steel Threaded Fittings Dimensions :

ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs 0


ASME B16.11 Froged Socket Welding Pipe Fittings Threaded 9000lbs 2000lbs 1
