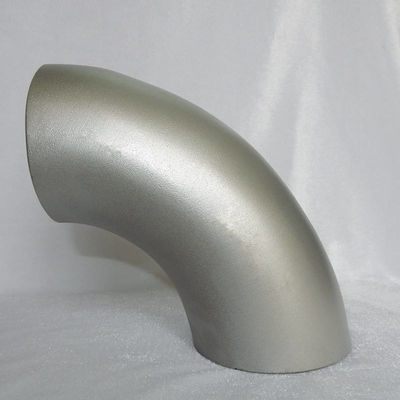

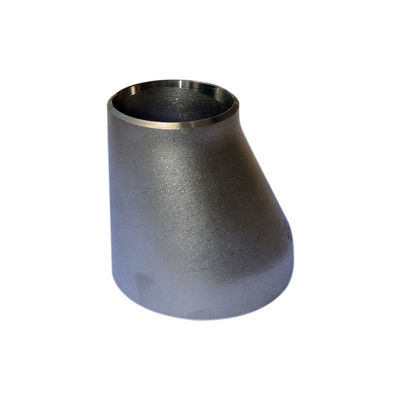

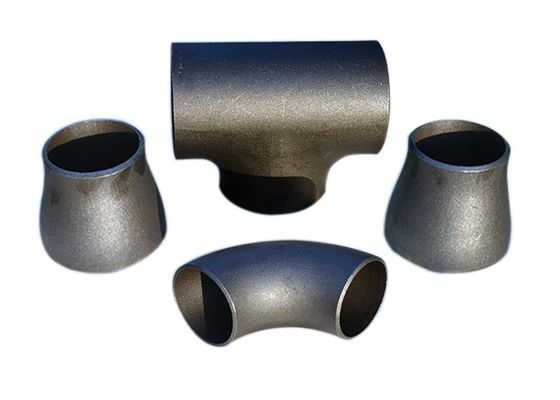

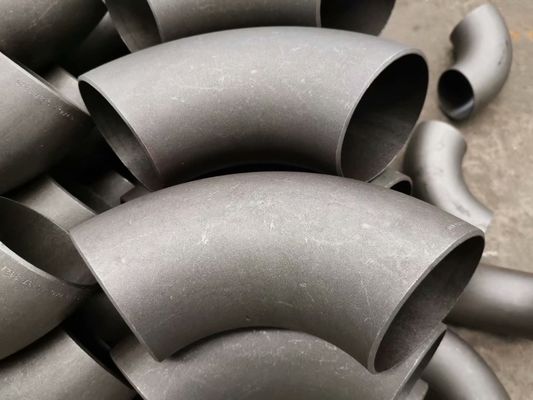

Carbon Steel Stainless Steel SGP JIS B2311 Elbow Tee Reducer And Cap 304 304

Carbon Steel Stainless Steel SGP JIS B2311 Elbow Tee Reducer And Cap 304 304
Carbon Steel Stainless Steel SGP JIS B2311 Elbow Tee Reducer And Cap 304 304 Carbon Steel Stainless Steel SGP JIS B2311 Elbow Tee Reducer And Cap 304 304 Carbon Steel Stainless Steel SGP JIS B2311 Elbow Tee Reducer And Cap 304 304 Carbon Steel Stainless Steel SGP JIS B2311 Elbow Tee Reducer And Cap 304 304

Large Image :  Carbon Steel Stainless Steel SGP JIS B2311 Elbow Tee Reducer And Cap 304 304

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO9001 , PED AND AD2000 W0 EN10204 3.1
Model Number: 1/2"-72"
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 1USD-100USD
Packaging Details: Plywood Cases And Pallets
Delivery Time: 15-30DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1500TONS ONE MONTH

Carbon Steel Stainless Steel SGP JIS B2311 Elbow Tee Reducer And Cap 304 304

Description
Standard: JIS B2311 Size: 1/2"*72"
Material: A234 WPB ,SS400 SS304/304L SS316/316L Coating: Oil , Cold Galvanized And Hot Galvanized
Package: Plywood Cases And Pallets Loading Port: Xingang , Tinjin Port
Thicknss: SGP Payment: TT LC DP DA
Production Type: ELBOW , REDUCER TEE CAP
High Light:

Stainless Steel SGP JIS B2311 Elbow

,

Carbon Steel JIS B2311 Elbow

,

Tee Reducer And Cap 304 304

Carbon Steel And Stainless Steel SGP JIS B2311 ELBOW TEE REDUCER AND CAP



SGP JIS B2311 ELBOW TEE REDUCER AND CAP



Standard: JIS B2311



Thickness:SGP



Material :A234 WPB ,SS400 SS304/304L SS316/316L



Size:1/2"-72"



Coating: Oil , Cold Galvanized and Hot Galvanized



Package:Plywood Cases And Pallets



Carbon Steel Stainless Steel SGP JIS B2311 Elbow Tee Reducer And Cap 304 304 0Carbon Steel Stainless Steel SGP JIS B2311 Elbow Tee Reducer And Cap 304 304 1Carbon Steel Stainless Steel SGP JIS B2311 Elbow Tee Reducer And Cap 304 304 2Carbon Steel Stainless Steel SGP JIS B2311 Elbow Tee Reducer And Cap 304 304 3





Dimensions of SGP Elbows in JIS B2311/B2312.

Dimensions of JIS B2311/ B2312 SGP standard Elbows.

JIS-B2311-B2312-SGP-ELBOW-BEND-DRAWING

JIS-B2311-B2312-SGP-ELBOW-BEND-DRAWING

45° and 90° SGP elbows dimensions in mm

Nominal OD Center to End 90˚Weight 45 °Weight
(NPS) 90˚(F) 45˚(H) KG/PC KG/PC
A B D Long Shot Long Long Short LONG
15 ½ 21.7 38.1 - 15.8 0.08 0.05 0.04
20 ¾ 27.2 38.1 - 15.8 0.1 0.07 0.05
25 1 34 38.1 25.4 15.8 0.15 0.1 0.08
32 42.7 47.6 31.8 19.7 0.26 0.17 0.13
40 48.6 57.2 38.1 23.7 0.35 0.24 0.18
50 2 60.5 76.2 50.8 31.6 0.64 0.43 0.32
65 76.3 95.3 63.5 39.5 1.12 0.75 0.56
80 3 89.1 114.3 76.2 47.3 1.58 1.05 0.79
90 101.6 133.4 88.9 55.3 2.17 1.45 1.09
100 4 114.3 152.4 101.6 63.1 2.91 1.94 1.46
125 5 139.8 190.5 127 78.9 4.49 2.99 2.25
150 6 165.2 228.6 152.4 94.7 7.09 4.73 3.55
200 8 216.3 304.8 203.2 126.3 14.4 9.61 7.2
250 10 267.4 381 254 157.8 25.4 16.9 12.7
300 12 318.5 457.2 304.8 189.4 38.1 25.4 19.05
350 14 355.6 533.4 355.6 220.9 56.7 37.8 28.35
400 16 406.4 609.6 406.4 252.5 74.3 49.5 37.15
450 18 457.2 685.8 457.2 284.1 94.2 62.8 47.1
500 20 508 762 508 315.6 116 77.7 58
550 22 558.8 838.2 558.8 347.2 141 94.1 70.5
600 24 609.6 914.4 609.6 378.7 168 112 84
650 26 660.4 990.6 660.4 410.3 198 132 99
700 28 711.2 1066.8 711.2 441.9 230 154 115
750 30 762 1143 762 473.4 264 176 132
800 32 812.8 1219.2 812.8 505 301 201 150.5
850 34 863.6 1295.4 863.6 536.6 340 227 170
900 36 914.4 1371.6 914.4 568.1 380 253 190
950 38 965.2 1447.8 965.2 599.7 425 283 212.5
1000 40 1016 1524 1016 631.2 471 314 235.5
1050 42 1066.8 1600.2 1066.8 662.8 518 346 259
1100 44 1117.6 1676.4 1117.6 694.4 570 380 285
1150 46 1168.4 1752.6 1168.4 725.9 623 415 311.5
1200 48 1219.2 1828.8 1219.2 757.5 677 452 338.5

180° SGP elbows Dimensions in mm

Nominal OD C to C End to End 180˚Weight
(NPS) 180˚ (P) 180˚(K) KG/PC
A B D Long Shot Long Shot Long Short
15 ½ 21.7 76.2 - 49 - 0.16 0.1
20 ¾ 27.2 76.2 - 51.7 - 0.2 0.14
25 1 34 76.2 50.8 55.1 42.4 0.3 0.2
32 42.7 95.2 63.6 69 53.2 0.52 0.34
40 48.6 114.4 76.2 81.5 62.4 0.7 0.48
50 2 60.5 152.4 101.6 106.5 81.1 1.28 0.86
65 76.3 190.6 127 133.5 101.7 2.24 1.5
80 3 89.1 228.6 152.4 158.9 120.8 3.16 2.1
90 101.6 266.8 177.8 184.2 139.7 4.34 2.9
100 4 114.3 304.8 203.2 209.6 158.8 5.82 3.88
125 5 139.8 381 254 260.4 196.9 8.98 5.98
150 6 165.2 457.2 304.8 311.2 235 14.18 9.46
200 8 216.3 609.6 406.4 413 311.4 28.8 19.22
250 10 267.4 762 508 514.7 387.7 50.8 33.8
300 12 318.5 914.4 609.6 616.5 464.1 76.2 50.8
350 14 355.6 1066.8 711.2 711.2 533.4 113.4 75.6
400 16 406.4 1219.2 812.8 812.8 609.6 148.6 99
450 18 457.2 - - - - 188.4 125.6
500 20 508 - - - - 232 155.4
550 22 558.8 - - - - 282 188.2
600 24 609.6 - - - - 336 224
650 26 660.4 - - - - 396 264
700 28 711.2 - - - - 460 308
750 30 762 - - - - 528 352
800 32 812.8 - - - - 602 402
850 34 863.6 - - - - 680 454
900 36 914.4 - - - - 760 506
950 38 965.2 - - - - 850 566
1000 40 1016 - - - - 942 628
1050 42 1066.8 - - - - 1036 692
1100 44 1117.6 - - - - 1140 760
1150 46 1168.4 - - - - 1246 830
1200 48 1219.2 - - - - 1354 904
