Product Details:
|
| Product Type: | SOCKET-WELDING PIPE FITTINGS AND THREADED PIPE FITTINGS | Main Products: | ELBOW ,TEE , FULL COUPLING , HALF COUPLING , UNION ,LATERAL CROSS CAP STREET ELBOW PLUG HEX HEAD BUSHING , HEX HEAD NIPPLE, NIPPLES SWAGE. WELDOLET |
|---|---|---|---|
| Product Form: | SOCKET WELDED , THE THREAD LINK TYPE | Material: | 20# ,A105, 16MN ,A350LF2 A420 WPL6 , SS304/316 |
| Pressure: | 3000lbs ,6000lbs ,9000lbs,2000lbs Sch80, Sch160 Xxs | Standard: | ANSI B16.11 MSS-SP -79 MSS-SP-92 JIS B2316 |
| High Light: | 3000lbs Fitting ASME B16.11,ASME B16.11 Socket Welding Pipe Fittings,6000lbs Threaded Pipe Fittings |
||

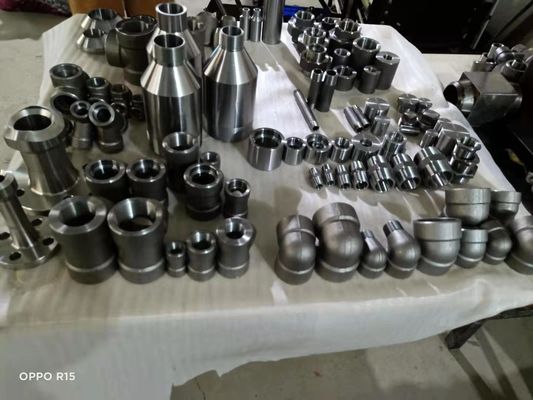

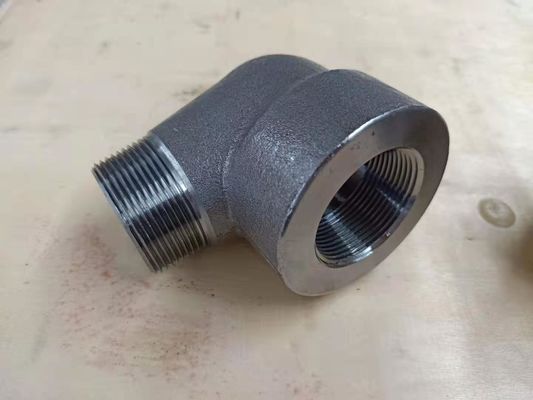

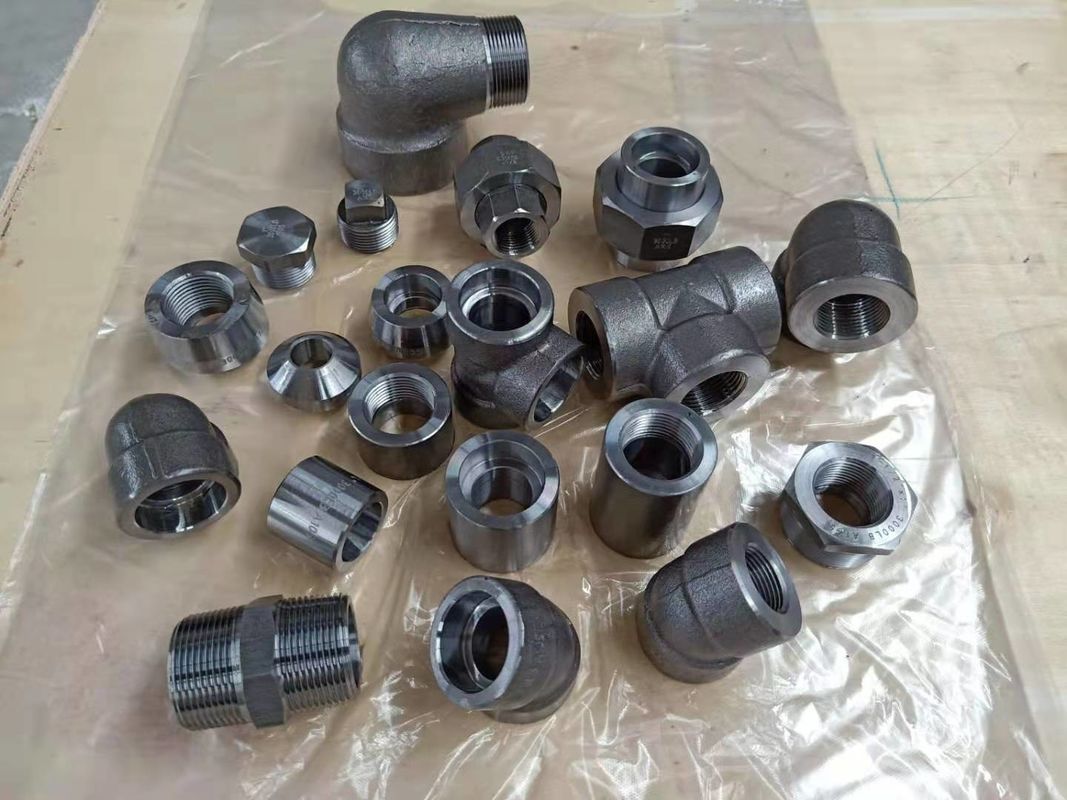

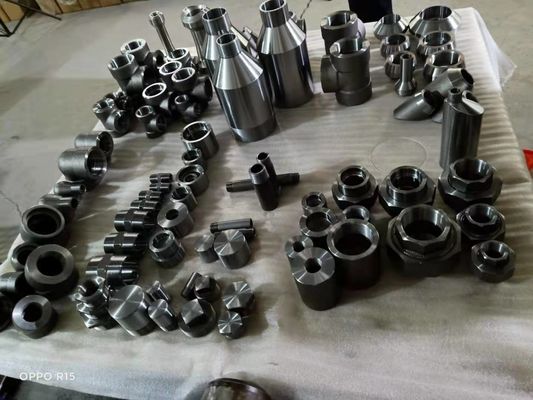

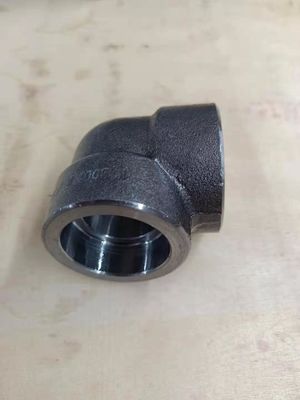

FROGED FITTING ASME B16.11 SOCKET-WELDING PIPE FITTINGS AND THREADED PIPE FITTINGS
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Forged Fittings, Socket – Welding and Threaded |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Threaded ASME B16.11 Fittings Stainless Steel – ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
The material for forged stainless steel fittings conforms to ASME A182
The dimensions for forged stainless steel fittings conform to ASME B16.11
NPT Threads conform to ASME B1.20.1
Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11
NPT Threads conform to ASME B1.20.1
