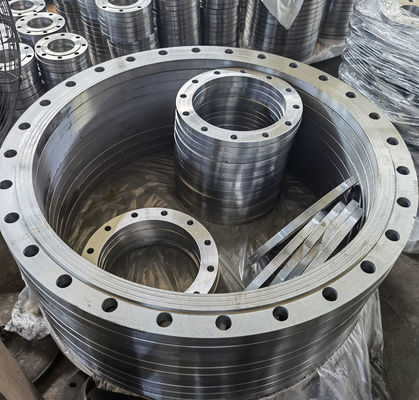

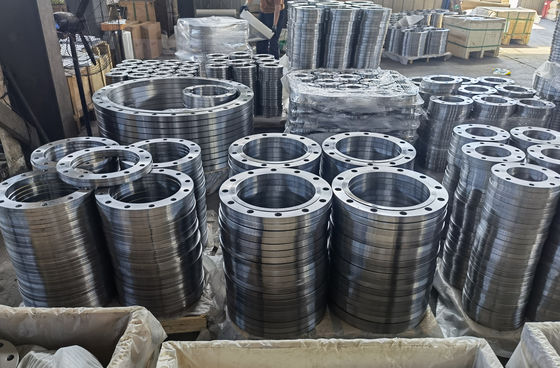

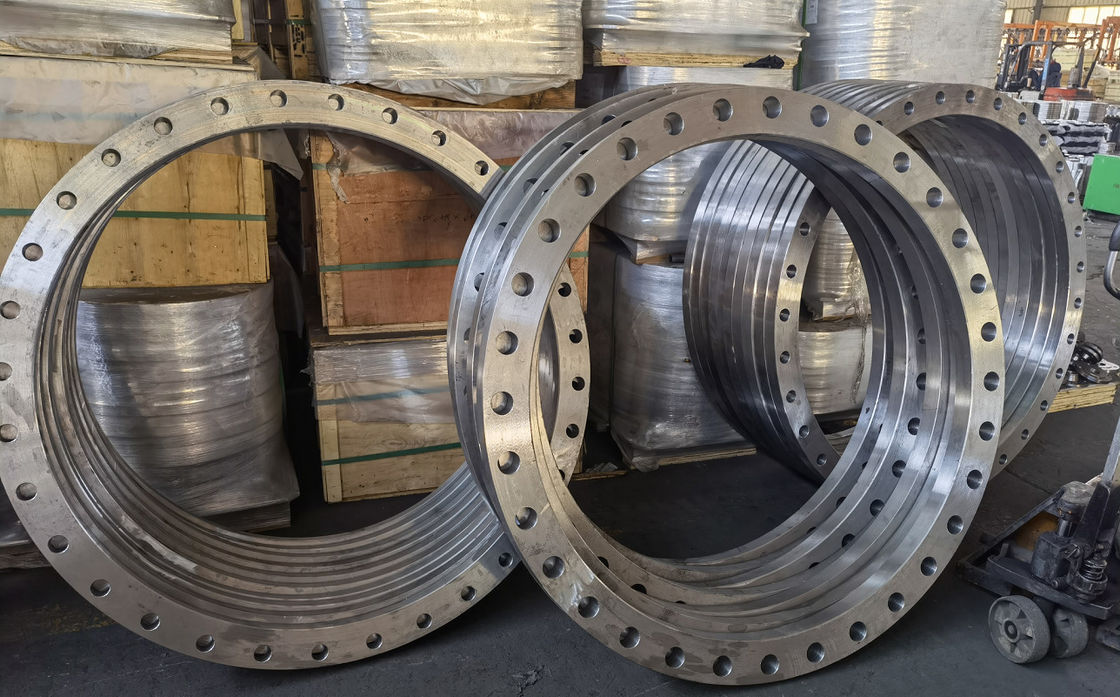

Anti Rust Oil AWWA C207-07 Hubbed Slip On Flange ISO9001 PED 2000

Anti Rust Oil AWWA C207-07 Hubbed Slip On Flange ISO9001 PED 2000
Anti Rust Oil AWWA C207-07 Hubbed Slip On Flange ISO9001 PED 2000 Anti Rust Oil AWWA C207-07 Hubbed Slip On Flange ISO9001 PED 2000 Anti Rust Oil AWWA C207-07 Hubbed Slip On Flange ISO9001 PED 2000 Anti Rust Oil AWWA C207-07 Hubbed Slip On Flange ISO9001 PED 2000

Large Image :  Anti Rust Oil AWWA C207-07 Hubbed Slip On Flange ISO9001 PED 2000

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: AWWA C207-07
Certification: ISO9001 PED2000
Model Number: class B / D
Payment & Shipping Terms:
Minimum Order Quantity: 2TONS
Price: 1
Packaging Details: seaworthy export standard plywooded cases
Delivery Time: 5
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5000TON PER MONTH
Contact Now

Anti Rust Oil AWWA C207-07 Hubbed Slip On Flange ISO9001 PED 2000

Description
Carbon Steel: A105 Stainless Steel: ASTM A182 F304 ASTM A182 F304L ASTM A182 F316 ASTM A182 F316L
Color: Black Or Yellow Or Anti-rust Oil Pressure: AWWA C207 Class B ,Class D ,Rings And Blind
OEM: Ok ODM: Available
High Light:

hubbed slip on flange ISO9001

,

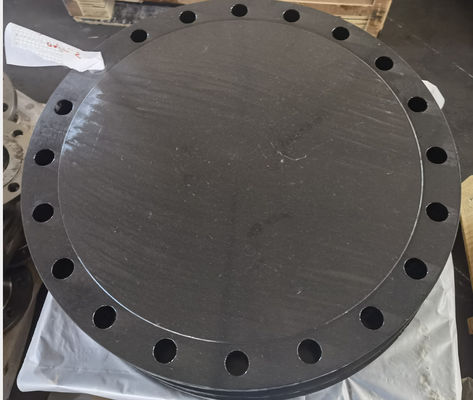

AWWA C207-07 hub blind flange

,

PED 2000 slip on pipe flanges

AWWA C207-07 Ring Type, Class B, Slip-On & Blind Steel Pipe Flanges
86 PSI

Awwa flange



Nom.
size		 Outside
Ø
(OD)		 Slip-on
Bore
(ID)		 No. of
Bolt
Holes		 Ø
of
Holes		 Ø
Bolt
Circle
(BC)		 Thickness
(T)		 Weight
(lbs)
Slip-on Blind Slip-on Blind
4 9.00 4.57 8 0.750 7.50 0.938 1.312 5.312 13
5 10.00 5.66 8 0.875 8.50 0.938 1.438 6.438 -
6 11.00 6.72 8 0.875 9.50 1.000 1.562 7.562 19
8 13.50 8.72 8 0.875 11.75 1.125 1.750 9.688 30
10 16.00 10.88 12 1.000 14.25 1.188 1.938 12.000 43
12 19.00 12.88 12 1.000 17.00 1.250 2.188 14.375 64
14 21.00 14.19 12 1.125 18.75 1.375 2.250 15.750 85
16 23.50 16.19 16 1.125 21.25 1.438 2.500 18.000 93
18 25.00 18.19 16 1.250 22.75 1.562 2.688 19.875 120
20 27.50 20.19 20 1.250 25.00 1.688 2.875 22.000 155
22 29.50 22.19 20 1.375 27.25 1.812 3.125 24.250 -
24 32.00 24.19 20 1.375 29.50 1.875 3.250 26.125 210
26 34.25 26.19 24 1.375 31.75 2.000 3.375 28.500 -
28 36.50 28.19 28 1.375 34.00 2.062 3.438 30.750 -
30 38.75 30.19 28 1.375 36.00 2.125 3.500 32.750 305
32 41.75 32.19 28 1.625 38.50 2.250 3.625 35.000 -
36 46.00 36.19 32 1.625 42.75 2.375 3.750 39.250 450
38 48.75 38.19 32 1.625 45.25 2.375 3.750 41.750 -
40 50.75 40.19 36 1.625 47.25 2.500 3.875 43.750 -
42 53.00 42.19 36 1.625 49.50 2.625 4.000 46.000 605
44 55.25 44.19 40 1.625 51.75 2.625 4.000 48.000 -
48 59.50 48.19 44 1.625 56.00 2.750 4.125 52.250 800
54 66.25 54.19 44 1.875 62.75 3.000 4.375 58.750 1025
60 73.00 60.19 52 1.875 69.25 3.125 4.500 65.250 1250
66 80.00 66.19 52 1.875 76.00 3.375 4.875 71.500 -
72 86.50 72.19 60 1.875 82.50 3.500 5.000 78.500 1925
78 93.00 78.19 64 2.125 89.00 3.875 5.375 84.500 -
84 99.75 84.19 64 2.125 95.50 3.875 5.375 90.500 2600
90 106.50 90.19 68 2.438 102.00 4.250 5.750 96.750 -
96 113.25 96.19 68 2.438 108.50 4.250 5.750 102.750 3275





AWWA C207-07 Ring Type, Class D, Slip-On & Blind Steel Pipe Flanges

150 - 175 PSI

Awwa flange

Nom.
size		 Outside
Ø
(OD)		 Slip-on
Bore
(ID)		 No. of
Bolt
Holes		 Ø
of
Holes		 Ø
Bolt
Circle
(BC)		 Thickness
(T)		 Weight
(lbs)
Slip-on Blind Slip-on Blind
2 6.00 2.44 4 0.750 4.75 0.625 0.625 3.90 4.7
2.5 7.00 2.94 4 0.750 5.50 0.625 0.625 5.30 6.5
3 7.50 3.57 4 0.750 6.00 0.625 0.625 5.70 7.5
4 9.00 4.57 8 0.750 7.50 0.625 0.625 7.70 10.6
5 10.00 5.66 8 0.875 8.50 0.625 0.650 8.80 13.6
6 11.00 6.72 8 0.875 9.50 0.688 0.693 10.70 17.7
8 13.50 8.72 8 0.875 11.75 0.688 0.812 15.30 31.8
10 16.00 10.88 12 1.000 14.25 0.688 0.953 19.20 51.7
12 19.00 12.88 12 1.000 17.00 0.812 1.117 33.10 86.7
14 21.00 14.19 12 1.125 18.75 0.938 1.133 46.90 107.4
16 23.50 16.19 16 1.125 21.25 1.000 1.265 60.10 149.8
18 25.00 18.19 16 1.250 22.75 1.062 1.331 63.60 177.7
20 27.50 20.19 20 1.250 25.00 1.125 1.448 79.40 233.6
22 29.50 22.19 20 1.375 27.25 1.188 1.568 89.90 290.5
24 32.00 24.19 20 1.375 29.50 1.250 1.661 113.40 364.5
26 34.25 26.25 24 1.375 31.75 1.312 1.786 128.00 448.2
28 36.50 28.25 28 1.375 34.00 1.312 1.906 140.50 542.6
30 38.75 30.25 28 1.375 36.00 1.375 2.008 163.30 647.3
32 41.75 32.25 28 1.625 38.50 1.500 2.150 210.10 798.6
34 43.75 34.25 32 1.625 40.50 1.500 2.252 219.10 916.9
36 46.00 36.25 32 1.625 42.75 1.625 2.370 259.40 1071.4
38 48.75 38.25 32 1.625 45.25 1.625 2.506 299.80 1278.2
40 50.75 40.25 36 1.625 47.25 1.625 2.609 311.10 1440.1
42 53.00 42.25 36 1.625 49.50 1.750 2.729 361.70 1648.1
44 55.25 44.25 40 1.625 51.75 1.750 2.849 385.00 1868.3
48 59.50 48.25 44 1.625 56.00 1.875 3.072 457.30 2340.7
54 66.25 54.25 44 1.875 62.75 2.125 3.435 610.60 3236.7
60 73.00 60.25 52 1.875 69.25 2.250 3.779 759.10 4327.6
66 80.00 66.25 52 1.875 76.00 2.500 4.136 1017.00 5722.2
72 86.50 72.25 60 1.875 82.50 2.625 4.480 1198.20 7249.0
78 93.00 78.25 64 2.125 89.00 2.750 - 1368.90 -
84 99.75 84.25 64 2.125 95.50 2.875 - 1639.70 -
90 106.50 90.25 68 2.438 102.00 3.000 - 1878.30 -
96 113.25 96.25 68 2.438 108.50 3.250 - 2298.30 -
102 120.00 102.25 72 2.688 114.50 3.250 - 2494.20 -
108 126.75 108.25 72 2.688 120.75 3.375 - 2892.50 -
120 140.25 120.25 76 2.938 132.75 3.500 - 3568.50 -
132 153.75 132.25 80 3.188 145.75 3.875 - 4628.60 -
144 167.25 144.25 84 3.438 158.25 4.125 - 5698.20 -
