Product Details:
|
| Standard: | ANSI B16.5 | Pressure: | 150LBS,300LBS,600LBS,900LBS,1500LBS,2500LBS |
|---|---|---|---|
| Stainless Steel: | A182 F304/304L,F316/316L | Size: | DN15-DN2000 |
| Type: | WN,SO,THREADED,BLIND | Material: | Carbon Steel A105 |
| Color: | Black,Yellow | Usage: | Connection The Pipe |
| Certificate: | ISO, PED | Output: | 2500ton/month |
| Technology: | Forged | Payment Item: | 30% Advance Payment,70% Against BL Copy |
| Location: | Hebei Province | Package: | Plywood Case Or Pallet |
| Application: | Petroleum And Gas | ||
| High Light: | DN 2000 flange wn ansi 150,DN15 flange wn ansi 150,F304 F316 dn 2000 flange |
||
WN Flange ANSI B16.5 B16.47 SO Blind Threaded LJ SW ASME A105 150LBS A182 F304 F316
HEBEI XINFENG is a leading manufacturer who is specialized in stainless steel seamless pipes , We has the most advanced producing and testing equipment . We can totally satisfy your requirement.
FORGED FLANGE
1) ANSI B16.5, ASME B16.5/B16.47 FLANGE
Size range: 1/2" to 80" DN15 to DN2000
Design: welding neck, slip on, blind, socket welding, threaded, lap-joint
Pressure: 150#, 300#, 600#,900#,1500#, 2500#
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
Material: Carbon steel A105, Stainless steel 304/304L, 316/316L
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
2) EN1092-1 FLANGE
Size range: DN15 to DN2000
Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking type12 slip on flange, type 13 threaded flange
Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100
Material: Carbon steel C22.8, S235, S235JR, P235GH, P245GH,P250GH,P280GH,P265GH.Stainless steel: 304/304L, 316/316L
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
3) DIN FLANGE
Size range: DN15 to DN2000
Design: slip on flange DIN2573,2576,2502,2503, 2543,2545
welding neck falnge DIN2631, 2632,2633,2634,2635
blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40
threaded falnge DIN2565,2566,2567,2567
loose flange DIN 2641,2642,2656,2673
Material: Carbon steel ST37.2/S235JR,C22.8. Stainless steel 1.4301, 1.4404
4) GOST FLANGE
Size range: DN15 to DN 2000
Design : plate falnge 12820-80, welding neck flange 12821-80
Pressure: PN6, PN10, PN16, PN25, PN40
Material: Carbon steel CT-20. Stainless steel 304/304L, 316/316L
Coating: rust-proof oil, cold and hot galvanize
5) JIS B2220 FALNGE
Size ragne : 15A to 2000A
Design: SOP, BIND, SOH,
Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K
Material: Carbon steel SS400, Stainless steel SUS304, SUS316
Coating : rust-proof oil, cold and hot galvanize
PRODUCT INTRODUCTION:
| Dimensions : | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| SIZE | 1/2″ (15 NB) to 48″ (1200NB) |
| CLASS/ PRESSURE | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| DIN | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Surface | pickling, annealing, bright, sandblast, hairline |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Type: | Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange |
| Connection Type | Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small Tongue, Groove. |
| Production Grade | ASTM A182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316L, 316Ti, 316L, 317, 317L, 321 |
Product information:
Flange is the parts which connects two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected as a group of combined sealing structure of the detachable connection. The gasket is added between the two flanges and then fastened by bolts. Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection, usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts can be called "flange type part", but this connection is only part of a device, such as the connection between flange and water pump, it's not inapposite to call water pump as flange type parts,but relative small valve,it can be called as flange type parts .

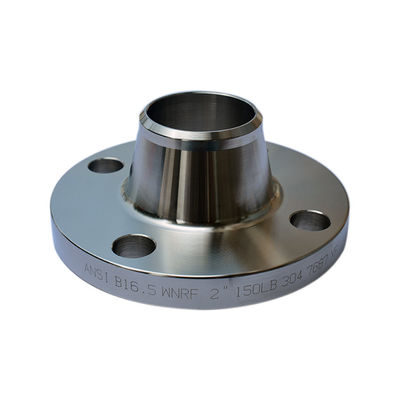

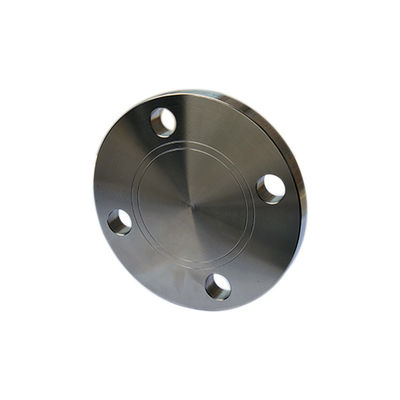

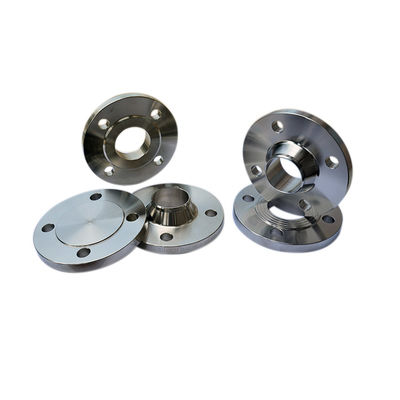

Product Pictures:
Material Detail:
| MECHANICAL PROPERTIES 力学性能 | MECHANICAL PROPERTIES 力学性能 | |||||||||||||||
| Standard | C | Mn | P | S | Si | Cu | Ni | Cr | Mo | Tensile Strength | Yield Strength | Elongation | Reduction of Area | Hardness | ||
| 碳 | 锰 | 磷 | 硫 | 硅 | 铜 | 镍 | 铬 | 钼 | 抗拉强度 | 屈服强度 | 延伸率最小 | 面收缩率 | 硬度 | |||
| % | % | % | % | % | % | % | % | % | Mpa | Mpa | % | % | HB | |||
| A105 | ASTM A105 | MIN% | 0.60 | 0.10 | 485 | 250 | 22 | 30 | ||||||||
| MAX% | 0.35 | 1.05 | 0.035 | 0.040 | 0.35 | 0.40 | 0.40 | 0.30 | 0.12 | 187 | ||||||
| A350LF2 | ASTM A350 | MIN% | 0.60 | 0.15 | 485 | 250 | 22 | 30 | ||||||||
| MAX% | 0.30 | 1.35 | 0.035 | 0.040 | 0.30 | 0.40 | 0.40 | 0.30 | 0.12 | 655 | 197 | |||||
| F304 | ASTM A182 | MIN% | 8.00 | 18.00 | 515 | 205 | 30 | 50 | ||||||||
| (1.4301) | MAX% | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 11.00 | 20.00 | 215 | |||||||
| F304L | ASTM A182 | MIN% | 8.00 | 18.00 | 485 | 170 | 30 | 50 | ||||||||
| (1.4307) | MAX% | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 12.00 | 20.00 | 215 | |||||||
| F316 | ASTM A182 | MIN% | 10.00 | 16.00 | 2.00 | 515 | 205 | 30 | 60 | |||||||
| (1.4401) | MAX% | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 14.00 | 18.00 | 3.00 | 215 | ||||||
| F316L | ASTM A182 | MIN% | 10.00 | 16.00 | 2.00 | 515 | 205 | 30 | 60 | |||||||
| (1.4404) | MAX% | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 14.00 | 18.00 | 3.00 | 215 | ||||||
| F321 | ASTM A182 | MIN% | 9.00 | 17.00 | 515 | 205 | 30 | 50 | ||||||||
| MAX% | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 12.00 | 19.00 | |||||||||
2016 Dusseldorf Tube
2015 OTC
2018 Dusseldorf Tube
Working Ispection:
COMPNAY INTRODUCTION
HEBHEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO., LTD ( XINFENG) was founded in 1988, specializing in the manufacture of forged flanges and pipe fittings. Located in Mengcun Hui Nationality Autonomous Region, known as the base for manufacture of elbows and pipe fittings in China, XINFENG enjoys a pleasant environment and convenient transportation, with Beijing and Tianjin city to the north and the Bohai Sea to the east.
XINFENG was licensed with independent export entitlement in 2006 and now its products are mainly for oversee markets, exported far to South Korea, Russia, countries and regions in middle-east, southeast Asia, south America and west Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.
With a new stance, we hope to tighten our relationships with customers from both abroad and domestics on the purpose of mutual benefit and development for our prosperous future. Warmly welcome customers to us for friendship and business negotiation.
FAQ
Q1. Can I have a sample order for stainless steel Flanges products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days;
Q3. Do you have any MOQ limit Flanges products order?
A:3ton
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping was also optional. For mass products, ship freight is preferred.
Q5. Is it OK to print my logo on products?
A: Yes.
Q6: How to ensure quality?
A: Mill Test Certificate is supplied with the shipment. If needed, a Third Party Inspection is acceptable
