ISO PED ASME B16.9 CON ECC Steel Pipe Reducer SCH40 A234 WPB Black Paint

ISO PED ASME B16.9 CON ECC Steel Pipe Reducer SCH40 A234 WPB Black Paint
ISO PED ASME B16.9 CON ECC Steel Pipe Reducer SCH40 A234 WPB Black Paint ISO PED ASME B16.9 CON ECC Steel Pipe Reducer SCH40 A234 WPB Black Paint ISO PED ASME B16.9 CON ECC Steel Pipe Reducer SCH40 A234 WPB Black Paint

Large Image :  ISO PED ASME B16.9 CON ECC Steel Pipe Reducer SCH40 A234 WPB Black Paint

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO9001 , PED AND AD2000 W0 EN10204 3.1
Model Number: 1/2"-48"
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 1USD-100USD
Packaging Details: Plywood Cases And Pallets
Delivery Time: 15-30DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1500TONS ONE MONTH
Contact Now

ISO PED ASME B16.9 CON ECC Steel Pipe Reducer SCH40 A234 WPB Black Paint

Description
STANDARD: ASME B16.9 Size: 1/2"-48"
Material: A234 WPB SS304/304L SS316/316L Thickness: SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH80, SCH120, SCH160
Coating: Black Paint , Oil , Cold Galvanized And Hot Galvanized Package: Plywood Cases And Pallets
High Light:

ASME B16.9 CON Steel Pipe Reducer

,

ASME B16.9 ECC Steel Pipe Reducer

,

ISO PED A234 WPB Black Reducer

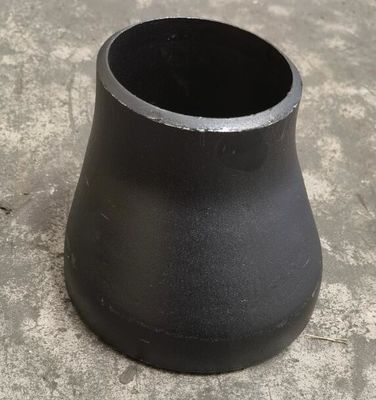

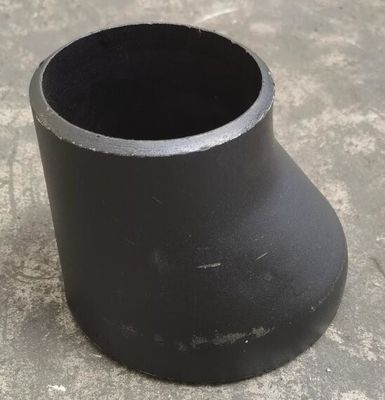

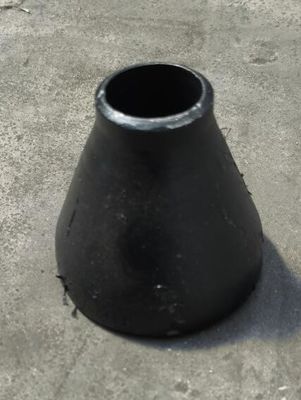

ASME B16.9 CON REDUCER ECC REDUCER SCH40 A234 WPB WITH BLACK PAINT



Material :A234 WPB SS304/304L SS316/316L



Size:1/2"-48"



Thickness:SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH80, SCH120, SCH160





Coating:Black paint , Oil , Cold Galvanized and Hot Galvanized



Package:Plywood Cases And Pallets



Detailed Product Description
Product Name: ELBOW, REDUCER,TEE,CAP Standard: ANSI B16.9,EN10253,DIN
Material: A234 WPB/P245GH/S235JRG2/ST37-2 Type: Seamless Fitting, Welded Fitting
Color: Black, Rust Proof Oil Steel: Carbon Steel, Stainless Steel
Location: Hebei Payment: 30% Advance Payment,70% Against BL Copy
Certificate: ISO,PED Usage: Pipe Connection

ANSI /ASME B16.9 Reducers Dimensions, Buttweld Concentric Reducer Dimensions Chart, Eccentric Buttweld Reducers Dimensions:

Eccnetric Reducer Dimensions ANSI B16.9

Stainless Steel Reducers Dimensions

Code RCD REISO Ø BIG Ø SMALL HEIGHT H mm THEORETICAL WEIGHT KG
DN D mm Thickness S mm DN d mm Thickness s mm
27 21 3/4 26.9 2.3 1/2 21.3 2.0 38 0.08
33 21 1 33.7 2.6 1/2 21.3 2.0 50 0.09
33 27 3/4 26.9 2.3 0.09
42 21 1″1/4 42.4 2.6 1/2 21.3 2.0 50 0.12
42 27 3/4 26.9 2.3 0.13
42 33 1 33.7 2.6 0.14
*48 21 1″1/2 48.3 2.6 1/2 21.3 2.0 64 0.18
48 27 3/4 26.9 2.3 0.19
48 33 1 33.7 2.6 0.20
48 42 1″1/4 42.4 2.6 0.20
60 27 2 60.3 2.9 3/4 26.9 2.3 76 0.30
60 33 1 33.7 2.6 0.31
60 42 1″1/4 42.4 2.6 0.32
60 48 1″1/2 48.3 2.6 0.33
76 33 2″1/2 76.1 2.9 1 33.7 2.6 90 0.40
76 42 1″1/4 42.4 2.6 0.47
76 48 1″1/2 48.3 2.6 0.48
76 60 2 60.3 2.6 0.49
89 42 3 88.9 3.2 1″1/4 42.4 2.6 90 0.55
89 48 1″1/2 48.3 2.6 0.61
89 60 2 60.3 2.9 0.62
89 76 2″1/2 76.1 2.9 0.63
114 48 4 114.3 3.6 1″1/2 48.3 2.6 100 0.85
114 60 2 60.3 2.9 0.98
114 76 2″1/2 76.1 2.9 1.00
114 89 3 88.9 3.2 1.02
139 60 5 139.7 4.0 2 60.3 2.9 127 1.60
139 76 2″1/2 76.1 2.9 1.70
139 89 3 88.9 3.2 1.74
139 114 4 114.3 3.6 1.76
*168 76 6 168.3 4.5 2″1/2 76.1 2.9 140 2.60
168 89 3 88.9 3.2 2.70
168 114 4 114.3 3.6 2.82
168 139 5 139.7 4.0 2.94
219 114 8 219.1 6.3 4 114.3 3.6 152 5.03
219 139 5 139.7 4.0 5.12
219 168 6 168.3 4.5 5.18
*273 114 10 273.0 6.3 4 114.3 3.6 178 7.00
*273 139 5 139.7 4.0 7.20
273 168 6 168.3 4.5 7.40
273 219 8 219.1 6.3 7.55
323 168 12 323.9 7.1 6 168.3 4.5 203 11.00
323 219 8 219.1 6.3 11.10
323 273 10 273 6.3 11.20

N.B. code RCD = concentric reducers – code REISO = excentric reducers

* Only concentric



ANSI / ASME B16.9 REDUCER – Dimensional Tolerances of Concnentric Reducer and Eccentric Pipe Reducers

Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)		 + 1.6
– 0.8		 1.6 1.6 + 2.4
– 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)		 + 4
– 3.2		 + 6.4
– 4.8		 + 6.4
– 4.8		 + 6.4
– 4.8
Inside Diameter at End 3.2 4.8 + 6.4
– 4.8		 + 6.4
– 4.8
Overall Length (H) 2 2 5 5
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness
