Product Details:
|
| STANDARD: | ASME B16.9 | Material: | A234 WPB |
|---|---|---|---|
| Size: | 1/2"-48" | Thickness: | SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH80, SCH120, SCH160 |
| Radius: | L/R AND S/R | Angle: | 45D 90D 180D |
| Package: | Plywood Cases And Pallets | Coating: | Black Paint , Oil , Cold Galvanized And Hot Galvanized |
| High Light: | B16.9 Butt Welded Pipe Fittings,ASME Butt Welded Pipe Fittings SCH10,ASME SCH80 black steel elbow |
||

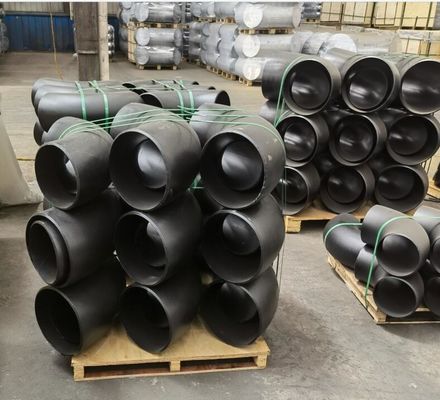

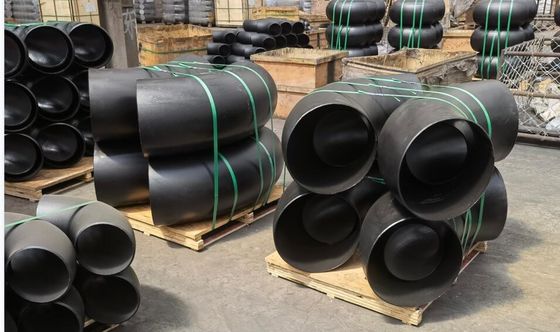

ASME B16.9 BUTT WELDED PIPE FITTINGS BLACK PAINT ELBOW
Material :A234 WPB SS304/304L SS316/316L
Size:1/2"-48"
Thickness:SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH80, SCH120, SCH160
Radius:L/R AND S/R
Angle:45D 90D 180D
Coating:Black paint , Oil , Cold Galvanized and Hot Galvanized
Package:Plywood Cases And Pallets

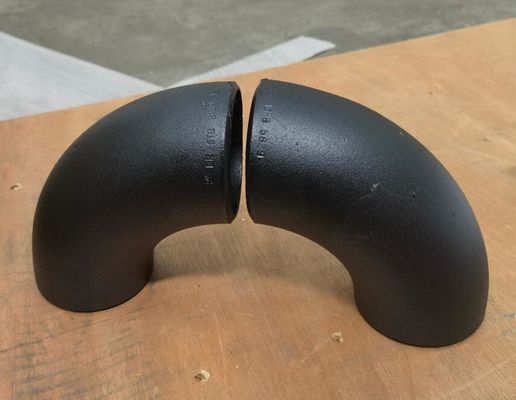

45 Degree/90 Degree/180 Degree Elbow, Long Radius/Short Radius Elbow
• Standards:
ASTM A234 WPB, ASME B16.9,MSS SP-43,DIN 2617,JIS B2313
90 Elbows Radius = 1.5d
INSIDE |
WALL |
CENTRELINE |
WEIGHT |
|---|---|---|---|
| Diameter | Thickness | Radius | Per Piece |
| ‘A’ mm | ‘B’ mm | ‘C’ mm | kilos |
| 15 | 1.50 | 30 | 0.03 |
| 20 | 1.50 | 35 | 0.04 |
| 25 | 1.50 | 32.5 | 0.06 |
| 32 | 1.50 | 45 | 0.11 |
| 40 | 1.50 | 60 | 0.20 |
| 50 | 2.00 | 73 | 0.31 |
| 65 | 2.00 | 95 | 0.52 |
| 80 | 2.00 | 123 | 0.77 |
| 100 | 2.00 | 150 | 1.20 |
| 100 | 3.00 | 150 | 1.79 |
| 125 | 2.00 | 188 | 1.88 |
| 150 | 2.00 | 225 | 2.69 |
| 150 | 3.00 | 225 | 4.09 |
| WEIGHTS OF FITTINGS | ||||||||
|---|---|---|---|---|---|---|---|---|
| NPS inches |
ELBOWS 1.5D |
ELBOWS 1.5D |
||||||
| Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
|
| 1/2 | 0.05 | 0.06 | 0.08 | 0.10 | 0.03 | 0.04 | 0.05 | 0.07 |
| 3/4 | 0.06 | 0.07 | 0.09 | 0.11 | 0.04 | 0.05 | 0.06 | 0.07 |
| 1 | 0.09 | 0.15 | 0.18 | 0.20 | 0.06 | 0.10 | 0.12 | 0.13 |
| 1 1/4 | 0.13 | 0.20 | 0.25 | 0.35 | 0.09 | 0.13 | 0.17 | 0.12 |
| 1 1/2 | 0.18 | 0.30 | 0.40 | 0.50 | 0.12 | 0.20 | 0.27 | 0.33 |
| 2 | 0.30 | 0.50 | 0.70 | 0.90 | 0.20 | 0.33 | 0.47 | 0.60 |
| 2 1/2 | 0.60 | 0.85 | 1.35 | 1.80 | 0.40 | 0.60 | 0.90 | 1.20 |
| 3 | 0.90 | 1.30 | 2.00 | 2.90 | 0.60 | 0.90 | 1.35 | 1.90 |
| 4 | 1.40 | 2.00 | 4.00 | 5.90 | 0.90 | 1.35 | 2.65 | 3.90 |
| 5 | 2.90 | 3.60 | 6.50 | 9.70 | 1.95 | 2.40 | 4.35 | 6.50 |
| 6 | 4.00 | 5.00 | 10.5 | 16.0 | 2.70 | 3.35 | 7.00 | 10.5 |
| 8 | 7.40 | 10.0 | 21.5 | 33.5 | 4.90 | 6.70 | 14.5 | 22.5 |
| 10 | 13.6 | 16.8 | 38.5 | 52.5 | 9.10 | 11.2 | 25.6 | 35.0 |
| 12 | 23.4 | 27.0 | 59.0 | 79.0 | 15.6 | 18.0 | 39.5 | 53.0 |
| 14 | 29.0 | 35.0 | 70.0 | 94.0 | 19.3 | 23.5 | 47.0 | 63.0 |
| 16 | 41.3 | 47.0 | 95.0 | 125 | 27.5 | 31.5 | 63.5 | 84.0 |
| 18 | 51.8 | 59.0 | 120 | 158 | 34.5 | 39.5 | 80.0 | 105 |
| 20 | 73.0 | 85.0 | 146 | 194 | 49.0 | 57.0 | 98.0 | 129 |
| 24 | 122 | 140 | 210 | 282 | 82.0 | 94.0 | 140 | 188 |
| Stainless Steel Butt Weld Fittings | |
|---|---|
| Fittings Types | 90º LRs, 90º SRs, 45º Elbows, Concentric Reducers, Eccentric Reducers, Tees, Reducing Tees and Stub Ends Fittings |
| Sizes | 1/2" – 12" |
| Schedules | Sch 10S - 80S |
* Higher pressure ratings and larger sizes than listed above available upon request.
