Product Details:
|
| Material: | Carbon Steel And Stainless Steel | Collor: | Light Oil |
|---|---|---|---|
| Pressure: | PN6-100 | ||
| High Light: | DIN2502 DIN2503 FLANGE,DIN2573 DIN2576 FLANGE,CARBON STEEL ST37.2 PLATE FLANGE |
||

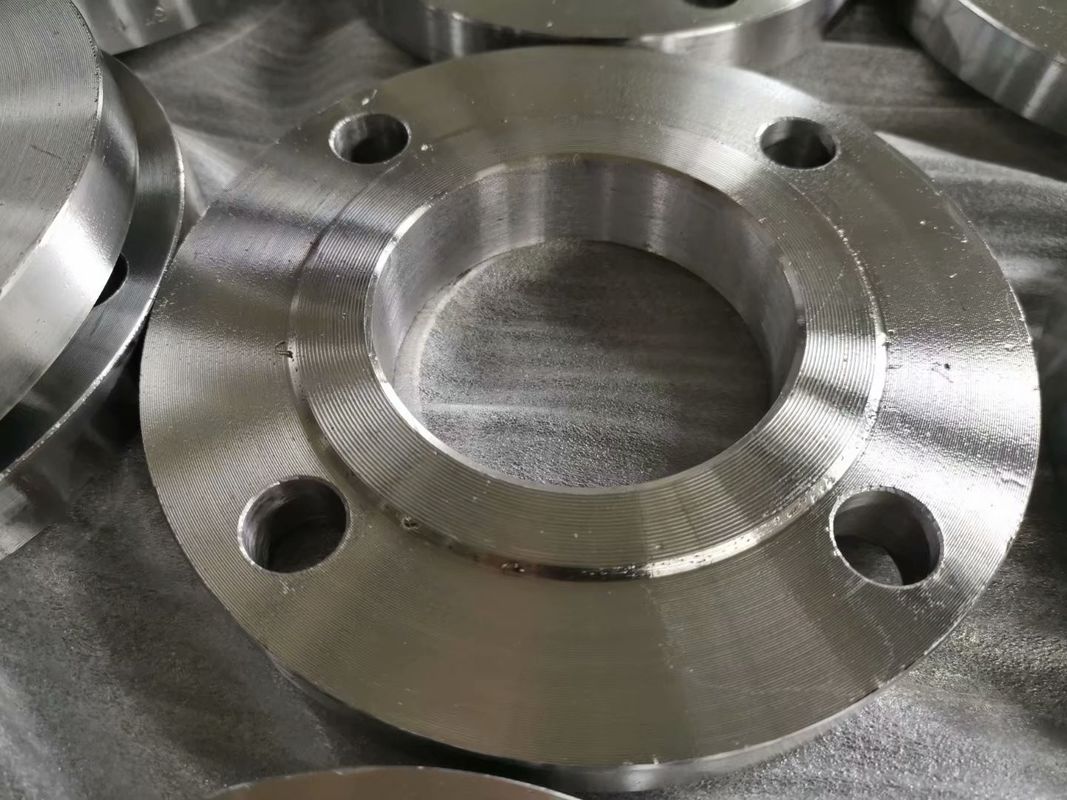

DIN2573 DIN2576 DIN2502 DIN2503 FLANGE CARBON STEEL ST37.2 PLATE FLANGE PRESSURE PN06-PN100
|
STANDARD
|
Type |
Pressure |
Material | size |
Process |
Surface treatment |
|
DIN
|
SO,BLIND,WN LAPJOINT BSP |
PN06,PN10,PN16, PN25,PN40,PN64, PN100, |
carbon steel stainless steel |
DN15-DN3000 |
FORGED, FORGING |
Black paint Yellow paint Light oil |

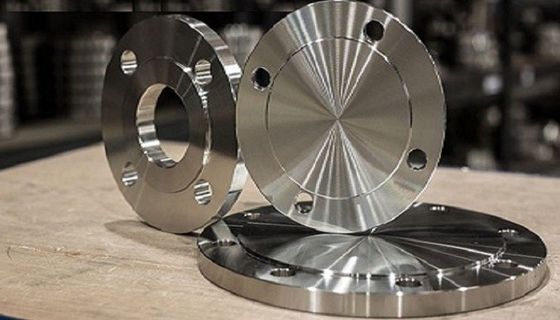

DIN2527 Blind Flanges PN6-PN100
DIN2543,2544,2545 Flat Flange for welding(slip-on)PN16-PN40
DIN2565,2566,2567,2568,2569 Threaded flange with neck PN6-PN40
DIN2573,2576,2502,2503 Flat flange for welding(slip-on) PN6-PN40
DIN2631,2632,2633,2634,2635,2636 Welding Neck flange PN06-PN100
........
| DIN PN16 STANDARD(weight kgs) | |||
| SIZE | DIN2502 PN16 | DIN2633 PN16 | DIN 2527 PN16 |
| KGS/PC | KGS/PC | KGS/PC | |
| DN 15 | 0.67 | 0.65 | 0.72 |
| DN 20 | 0.94 | 0.95 | 1.01 |
| DN 25 | 1.11 | 1.14 | 1.23 |
| DN 32 | 1.62 | 1.69 | 1.80 |
| DN 40 | 1.86 | 1.86 | 2.09 |
| DN 50 | 2.47 | 2.53 | 2.88 |
| DN 65 | 3.00 | 3.06 | 3.66 |
| DN 80 | 3.79 | 3.70 | 4.77 |
| DN 100 | 4.03 | 4.62 | 5.65 |
| DN 125 | 5.46 | 6.30 | 8.42 |
| DN 150 | 6.57 | 7.75 | 10.40 |
| DN 200 | 9.31 | 11.00 | 16.10 |
| DN 250 | 13.40 | 15.60 | 24.90 |
| DN 300 | 17.40 | 22.00 | 35.10 |
| DN 350 | 26.60 | 28.80 | 47.80 |
| DN 400 | 30.90 | 36.30 | 63.50 |
| DN 500 | 54.00 | 61.00 | 102.00 |
| DN 600 | 77.60 | 75.40 | 149.70 |
Material
1) Carbon Steel P245GH,P250GH,S235 & Stainless Steel SS304, SS316, SS316L
Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Black paint coating
Surface antirust 3: Yellow paint coating
Surface antirust 4: Galnavized (Hot Dipped Galvanized or Electro Galvanized)
Connect Face:
Surface 1: Smooth finish
Surface 2: Sprial serrated
Surface 3: Two or three grooves (Water Lines)
(Raised face=RF ,Flat face=FF)
Terms:
1) Payment: Irrevocable L/C at sight or T/T, D/P
2) Delivery term FOB China Port or CIF Buyer’s Port
3) Packing: Plywood Pallet/case
Contact:
Sales Manager: Grace Zhang
HEBEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO.,LTD.
Add.: Mencun County,Cangzhou City,Hebei province,China 061400
Mobile:86 18031772015 (wechat, whatsapp)
Tel: 86-317-6725755
Email: info4@hbxfgj.com
Skype: cangzhouzhangnan
FAQ:
1. What is your MOQ?
Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 150m - 200m.
3. What is your delivery time?
We wil deliver in 30-45 days
4. Can you accept mixed products in one container?
Yes, we accept for sure.
