Product Details:
|
| Standard: | Plate Flanges(GOST12820-80),Blind Flanges(GOST12836-67); Welding Neck Flanges(GOST12821-80); Steel Butt-Welded Flanges GOST12821-80 | Pressure: | PN6Mpa, PN10Mpa, PN16Mpa, PN25Mpa, PN40Mpa, PN64Mpa, PN100Mpa, PN160 Mpa |
|---|---|---|---|
| Connection Type: | Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large, Tongue & Groove, Small Tongue & Groove | Flange Face Type: | Flat Face (FF), Raise Face (RF), Ring Joint (RJT) |
| Coating/Surface Treatment: | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold And Hot Dip Galvanized | Material: | 20CT, ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L |
| Packing: | No Fumigate Or Fumigate Plywood/Wood Pallet Or Case | Usage/Applications: | Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects Etc. |
| High Light: | 12820 GOST Flange ASTM A182,PED 33259 GOST Flange,astm a182 flange A240 310 321 |
||
GOST STANDARD FLANGE (GOST 12820/GOST 12821/GOST 33259) – MANUFACTURERS & STOCKISTS
GOST Standard Flanges abide by the standard called GOST. It is a Russian standard that adapts to the standards of European, Asian standards and many other national standards. Dinesh Industries is a producer of different flanges in different material grades that come with the GOST standard. The Gost Standard Flange Dimensions vary with specification and other standards. There are small to medium scale diameter flanges that operate in different applications. The Gost 12821 Flange is a stainless steel flange that can range between the DIN15 to DIN1600. There are different types of the flanges as well. The GOST 12821 80 flange is used in oil fields, offshore oil industries, natural gas industries and in water systems.

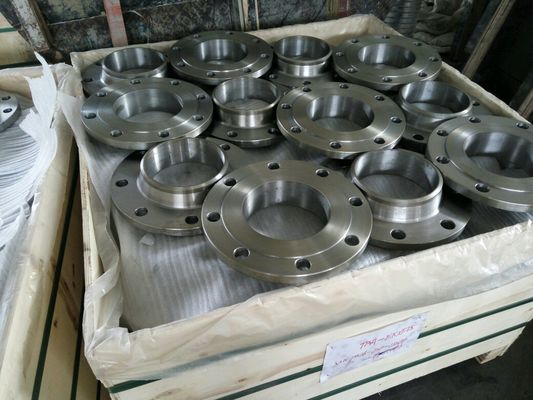

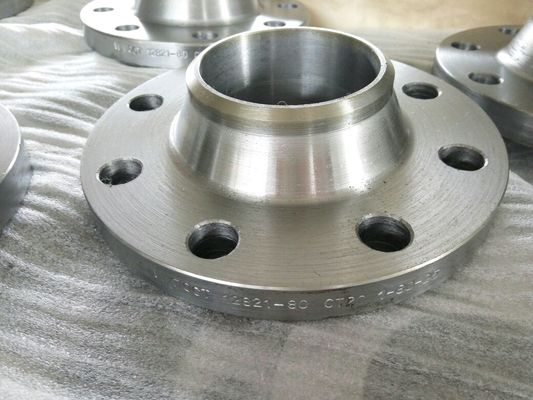

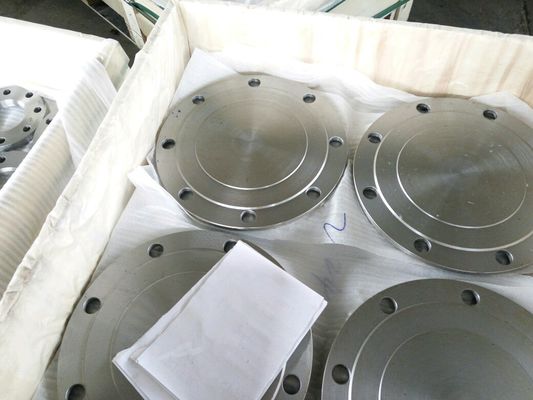

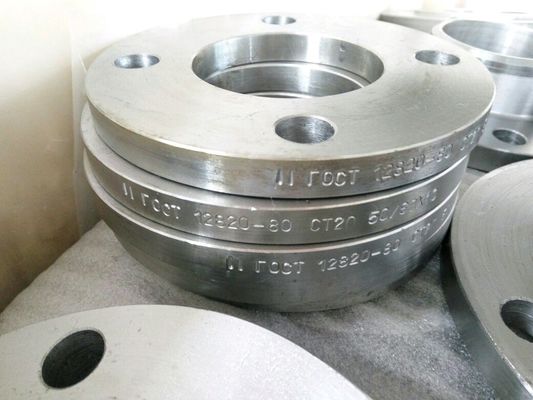

The electric power plants and shipbuilding industries use this standard of flanges as well. There are different types such as the weld neck, slip on, butt weld and blind flanges. The Ghost Blind Flange is used to terminate a pipe line either temporarily or permanently. The Ghost Weld Neck Flange is used to have more welding surface and strength over connection. The Ghost Plate Flange is used to add more connection surface to blunt pipe ends and the Ghost Slip On Flange is useful when connecting seamless pipes together. You can get any types of flanges from us and please feel free to contact us with your inquiry.
Table of Content
| Producty Type | GOST Flanges |
|---|---|
| Size | ½” to 48″ |
| Pressure Class Ratings | Class 1500, Class 150, Class 400, Class 900, Class 300, Class 2500, Class 600 | PN16, PN40, PN6, PN10, PN64, PN25 |
| Specialize | As per drawing |
| Standard | ANSI B16.47, MSS SP44, ANSI B16.5, ANSI B16.36, ANSI B16.48 ,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820DIN : DIN2527, DIN2633, DIN2636, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2637, DIN2638, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2634, DIN2635, DIN2632, DIN2673B.S : BS1560, BS4504, BS4504 , BS10 |
| Connection Type / Flange Face Type | Flat Face, Large Male-Female, Ring Type Joint, Lap-Joint Face, Large Tongue & Groove, Raised Face, Small Male-Female, Small Tongue & Groove |
GOST Standard Flanges are Available in Class 150 to Class 2500, in Dimensions like ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, AWWA
| Проход условный Dy | d1 | b | h4 | Dm | Dn | Масса, кг | ||||
| с соединительным выступом | с выступом | с впадиной | с шипом | с пазом | ||||||
| 10 | 8 | 10 | 27 | 22 | 15 | 0,34 | 0,34 | 0,32 | 0,34 | 0,33 |
| 15 | 12 | 28 | 28 | 19 | 0,40 | 0,40 | 0,38 | 0,40 | 0,40 | |
| 20 | 18 | 30 | 36 | 26 | 0,53 | 0,53 | 0,50 | 0,53 | 0,52 | |
| 25 | 25 | 12 | 42 | 33 | 0,76 | 0,77 | 0,72 | 0,75 | 0,75 | |
| 32 | 31 | 33 | 50 | 39 | 1,10 | 1,08 | 1,04 | 1,08 | 1,08 | |
| 40 | 38 | 35 | 60 | 46 | 1,36 | 1,37 | 1,28 | 1,30 | 1,34 | |
| 50 | 49 | 70 | 58 | 1,53 | 1,51 | 1,44 | 1,46 | 1,47 | ||
| 65 | 66 | 88 | 77 | 1,97 | 2,06 | 1,83 | 1,72 | 1,75 | ||
| 80 | 78 | 13 | 37 | 102 | 90 | 2,76 | 2,76 | 2,80 | 2,65 | 2,72 |
| 100 | 96 | 38 | 122 | 110 | 3,35 | 3,04 | 3,03 | 3,03 | 3,04 | |
| 125 | 121 | 15 | 40 | 148 | 135 | 4,66 | 4,24 | 3,66 | 4,50 | 4,55 |
| 150 | 146 | 43 | 172 | 161 | 5,37 | 5,85 | 4,93 | 5,29 | 5,35 | |
| (175) | 177 | 17 | 47 | 210 | 196 | 7,32 | 8,10 | 6,92 | 7,11 | 7,16 |
| 200 | 202 | 50 | 235 | 222 | 8,37 | 9,35 | 7,75 | 7,98 | 8,05 | |
| (225) | 226 | 260 | 248 | 9,45 | 9,25 | 8,72 | 8,98 | 9,06 | ||
| 250 | 254 | 18 | 288 | 278 | 10,99 | 10,69 | 10,14 | 12,20 | 12,30 | |
| 300 | 303 | 340 | 330 | 14,82 | 14,28 | 14,10 | 13,81 | 14,11 | ||
| 350 | 351 | 390 | 382 | 17,69 | 18,65 | 17,64 | 16,35 | 16,72 | ||
| 400 | 398 | 440 | 432 | 20,55 | 19,69 | 19,30 | 18,83 | 19,31 | ||
| (450) | 450 | 494 | 484 | 23,63 | 23,60 | 21,90 | 21,62 | 22,24 | ||
| 500 | 501 | 19 | 545 | 535 | 26,63 | 29,10 | 25,90 | 24,44 | 25,10 | |
| 600 | 602 | 55 | 650 | 636 | 35,79 | 35,60 | 33,40 | 37,49 | 33,67 | |
| (700) | 692 | 740 | 726 | 44,31 | 44,10 | 41,10 | 40,60 | 41,86 | ||
| 800 | 792 | 60 | 844 | 826 | 56,17 | 55,20 | 52,20 | 51,67 | 53,36 | |
| (900) | 892 | 21 | 944 | 926 | 66,79 | – | – | – | – | |
| 1000 | 992 | 1044 | 1028 | 73,51 | ||||||
| 1200 | 1192 | 23 | 70 | 1248 | 1228 | 111,43 | ||||
| 1400 | 1392 | 27 | 85 | 1456 | 1428 | 156,58 | ||||
| 1600 | 1592 | 32 | 95 | 1660 | 1628 | 218,57 | ||||
|
