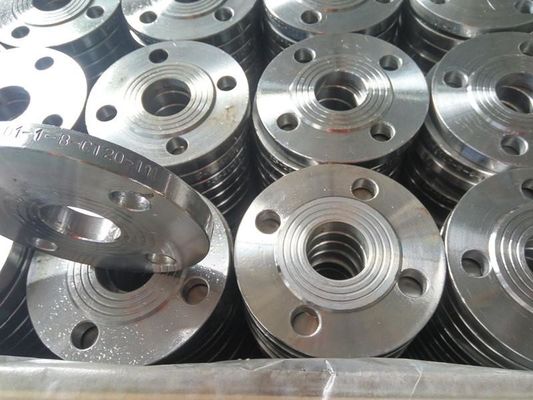

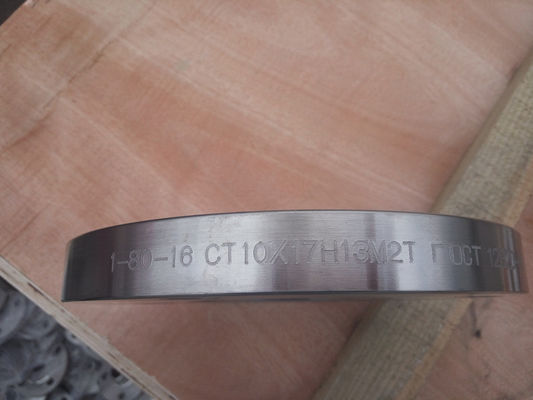

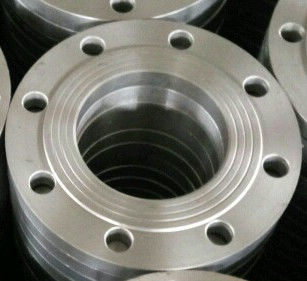

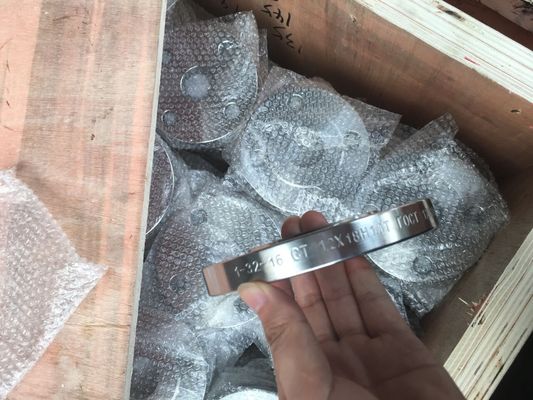

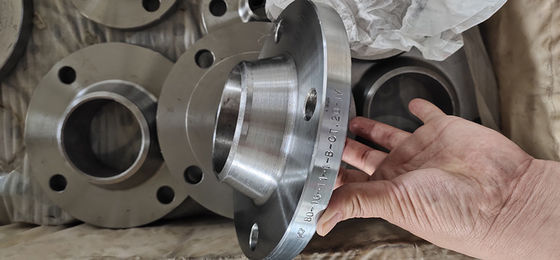

CARBON STEEL CT20 FLANGE GOST33259 TYPE01 PLATE FLANGE 16MN GOST33258 TYPE11 WN
Gost flange is a flange system from Russia, include Plate Flanges(GOST12820-80),Blind Flanges(GOST12836-67),Welding neck Flanges(GOST12821-80), Steel Butt-Welded Flanges GOST12821-80 etc., size from DN15 to DN1600, Plate flange, welding neck flange, slip on welding plate flange.
Type: Plate Flange,Blind Flange, Welding neck flange, steel butt-welded flanges
Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
Standard: Plate Flanges(GOST12820-80),Blind Flanges(GOST12836-67); Welding neck Flanges(GOST12821-80); Steel Butt-Welded Flanges GOST33259 Type01/ Type11
Size: DN15-DN1200
Pressure: PN6Mpa,PN10Mpa,PN16Mpa,PN25Mpa,PN40Mpa,PN64Mpa,PN100Mpa,PN160 Mpa
Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case
Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized.
E-catalogue: Available , please visit catalogue of flange
Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
| Specifications | GOST Flanges |
|---|---|
| GOST Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges. |
| ASME B16.5 GOST Flange size range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| GOST Flange Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| GOST Flange Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| GOST Flange Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| GOST Flange Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| GOST Flange Standard GOST | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Most common types of GOST Flanges |
|
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove |
| GOST Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|
| Special design |
As per your drawing AS, ANSI, BS, DIN and GOST GOST Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Specialized manufacturer of |
|
| Test | Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | West Europe /Indian / USA / Japan / Korean |
| GOST 12815 Flanges Standard |
ANSI DIN, GOST, GOST, UNI, BS, AS2129, AWWA, EN, GOST, NFE etc.
|
| Key markets and industries for GOST Flange |
|
| Export to | Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Dubai, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, Oman etc |
| GOST 12815 Flanges Application |
|
Dimensions & Masses of GOST 33259 Flange PN0.6MPa
|
Давление PN = 0,6 МПа (6 кгс/с м²)
|
|||||||
|
Наименование
|
D, мм
|
D1, мм
|
dв, мм
|
b, мм
|
d, мм
|
отв., шт.
|
Масса, кг.
|
|
Фланец плоский ГОСТ 12820-80 (01) 1-15-6 ст.3 (20)
|
80
|
55
|
19
|
10
|
11
|
4
|
0,33
|
|
Фланец плоский ГОСТ 12820-80 (01) 1-20-6 ст.3 (20)
|
90
|
65
|
26
|
12
|
0,53
|
||
|
Фланец плоский ГОСТ 12820-80 (01) 1-25-6 ст.3 (20)
|
100
|
75
|
33
|
12
|
0,64
|
||
|
Фланец плоский ГОСТ 12820-80 (01) 1-32-6 ст.3 (20)
|
120
|
90
|
39
|
13
|
14
|
1,01
|
|
|
Фланец плоский ГОСТ 12820-80 (01) 1-40-6 ст.3 (20)
|
130
|
100
|
46
|
13
|
1,21
|
||
|
Фланец плоский ГОСТ 12820-80 (01) 1-50-6 ст.3 (20)
|
140
|
110
|
59
|
13
|
1,33
|
||
|
Фланец плоский ГОСТ 12820-80 (01) 1-65-6 ст.3 (20)
|
160
|
130
|
78
|
13
|
1,63
|
||
|
Фланец плоский ГОСТ 12820-80 (01) 1-80-6 ст.3 (20)
|
185
|
150
|
91
|
15
|
18
|
2,44
|
|
|
Фланец плоский ГОСТ 12820-80 (01) 1-100-6 ст.3 (20)
|
205
|
170
|
110
|
15
|
2,85
|
||
|
Фланец плоский ГОСТ 12820-80 (01) 1-125-6 ст.3 (20)
|
235
|
200
|
135
|
17
|
8
|
3,88
|
|
|
Фланец плоский ГОСТ 12820-80 (01) 1-150-6 ст.3 (20)
|
260
|
225
|
161
|
17
|
4,39
|
||
|
Фланец плоский ГОСТ 12820-80 (01) 1-200-6 ст.3 (20)
|
315
|
280
|
222
|
19
|
5,89
|
||
|
Фланец плоский ГОСТ 12820-80 (01) 1-250-6 ст.3 (20)
|
370
|
335
|
273
|
20
|
12
|
7,67
|
|
|
Фланец плоский ГОСТ 12820-80 (01) 1-300-6 ст.3 (20)
|
435
|
395
|
325
|
20
|
22
|
10,28
|
|
|
Фланец плоский ГОСТ 12820-80 (01) 1-350-6 ст.3 (20)
|
485
|
445
|
377
|
22
|
12,58
|
||
|
Фланец плоский ГОСТ 12820-80 (01) 1-400-6 ст.3 (20)
|
535
|
495
|
426
|
24
|
16
|
15,2
|
|
|
Фланец плоский ГОСТ 12820-80 (01) 1-500-6 ст.3 (20)
|
640
|
600
|
530
|
25
|
19,72
|
||
|
Фланец плоский ГОСТ 12820-80 (01) 1-600-6 ст.3 (20)
|
755
|
705
|
630
|
25
|
26
|
20
|
26,24
|
|
Фланец плоский ГОСТ 12820-80 (01) 1-800-6 ст.3 (20)
|
975
|
920
|
820
|
27
|
30
|
24
|
46,14
|
|
Фланец плоский ГОСТ 12820-80 (01) 1-1000-6 ст.3 (20)
|
1 175
|
1 120
|
1 020
|
31
|
28
|
64,36
|
|
|
Фланец плоский ГОСТ 12820-80 (01) 1-1200-6 ст.3 (20)
|
1 400
|
1 340
|
1 220
|
34
|
33
|
32
|
99,03
|
