Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS

Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS
Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS

Large Image :  Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO.CE,PED,ADW2000
Model Number: 1/2"-60"
Payment & Shipping Terms:
Minimum Order Quantity: 1ton
Price: negociation
Packaging Details: ply wooden cases,pallet
Delivery Time: 30days
Payment Terms: L/C, D/P, T/T
Supply Ability: 10000tons per month

Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS

Description
Type: Seamless, Welded Size: 1/2"-72"
Thickness: STD,SCH20 SCH40 SCH80 SCH120 XS XXS Material: WPB A234, ASTM 403 304/304L, 316/316L
Paintting: Light Oiling, Black Painting Packing: Ply Wooden Cases,pallet
High Light:

Seamless Concentric Eccentric Reducer SCH40

,

SCH80 eccentric reducer pipe fitting

,

SCH120 XXS 3x2 eccentric reducer

Concentric/Eccentric reducer Seamless Welded STD SCH40 SCH80 SCH120 XXS



A steel pipe reducer is a component used in the pipelines to reduce its size from large to small bore in accordance to the inner diameter. The length of the reduction here is equal to an average of the smaller and larger pipe diameters. Here, the reducer can be used as a diffuser or a nozzle. The reducer helps in meeting the existing piping of varied sizes or hydraulic flow of the piping systems.



The usage of a steel reducer is carried out in the chemical factories and power plants. It makes the piping system reliable and compact. It safeguards the piping system from any kind of adverse impact or thermal deformation. When it is on the pressure circle, it prevents from any type of leakage and is easy to install. The nickel or chrome coated reducers extends the product life, useful for high vapor lines, and prevents corrosion.

Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS 0

Reducer Types

There are two types of reducer, concentric reducer and eccentric reducer.

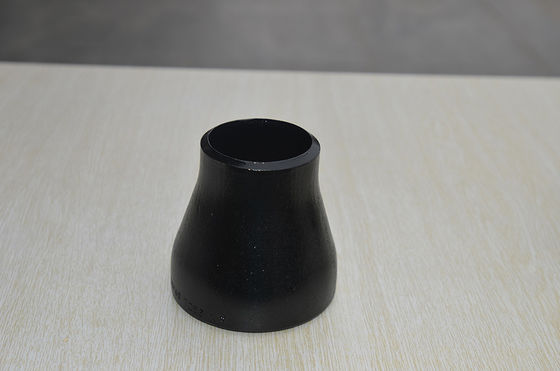

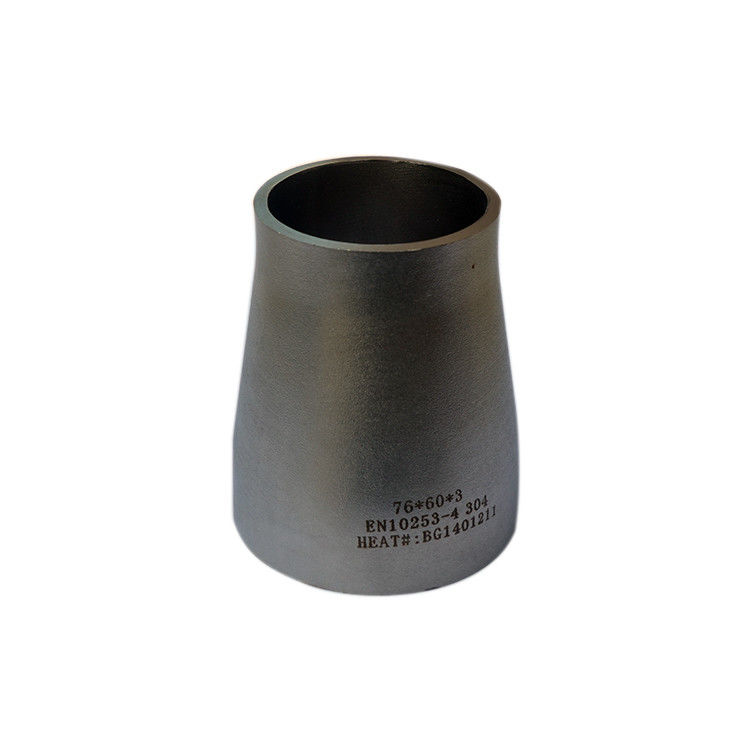

Concentric Reducer

Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS 1

This reducer consists of the symmetrical and conical shaped fittings that enlarge or reduce the diameter equally about the center line. For an example, when 1” pipe transitions to ¾” pipe, then the top or bottom of the pipe do not remain level. It is widely used when single or multiple diameter changes.

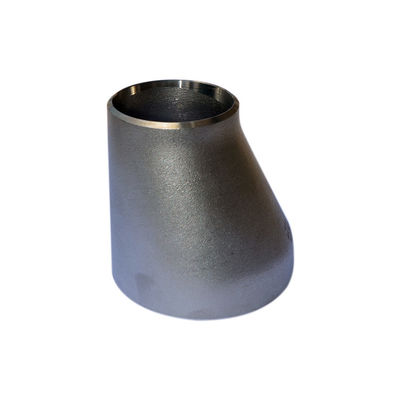

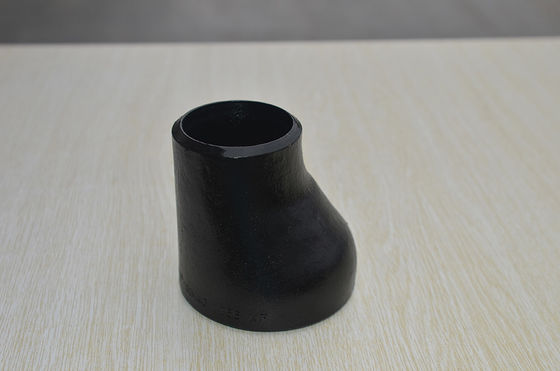

Eccentric Reducer

Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS 2

A conically shaped fitting that reduces or enlarges the diameter, but it is not symmetrical about the center line. This is used in pipe-work systems for reducing the diameter of a pipe from one size to larger or small size.

Ranges from different connection types, pipe reducer could be classified with socket weld reducer and butt weld reducer.

Socket weld reducer also called socket weld insert, it has three types 1, 2 and 3. Manufacturing standards comply to ASME B16.11.



The Socket Weld resists ½ of the strength of butt welding, so it is used for small-diameter pipes possessing a diameter of NPS 2 or less. Butt Weld has good strength, as it is suitable for high pressure and temperature pipelines.



Butt weld reducer ends in plan or beveled, manufactured in accordance with ASME B16.9 and welding process according ASME B16.25.



Place of Origin: China

Pipe reducers come into concentric reducers and eccentric reducers.They are made of carbon steel,alloy steel,stainless steel,low temperature steel or high performance steel,etc

Product Name: Concentric/Eccentric reducer

Size: 1/2″–72″
Seamless elbow: 1/2″~24″ DN15~DN600
Welded Elbow: 4″~72″ DN150~DN1800
Wall Thinkness: sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s
Maximum thickness: 120mm

Standard: ANSI B16.9 / 16.28, ASTM A53/A106, API 5L, ASME B36.10M—1996, DIN2605 / 2615 / 2616, JIS P2311/2312

Material: Carbon steel , alloy steel, stainless steel

Surface treatment: Transparent oil, rust-proof black oil or hot galvanized.



Drawing with data:



Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS 3



Process of manufacturing:



Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS 4



Products showing of our company:



Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS 5

Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS 6





Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS 7



Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS 8

Seamless Welded Concentric Eccentric Reducer Pipe Fitting STD SCH40 SCH80 SCH120 XXS 9
