45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend

Certification
China Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd. certification
China Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd. certification
I'm Online Chat Now

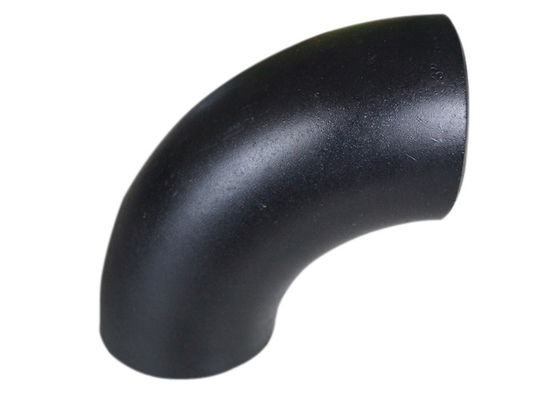

45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend

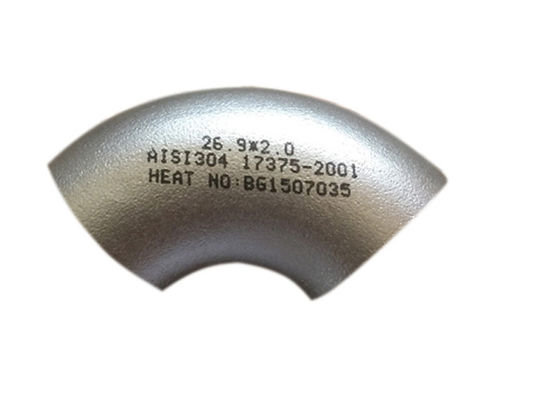

45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend

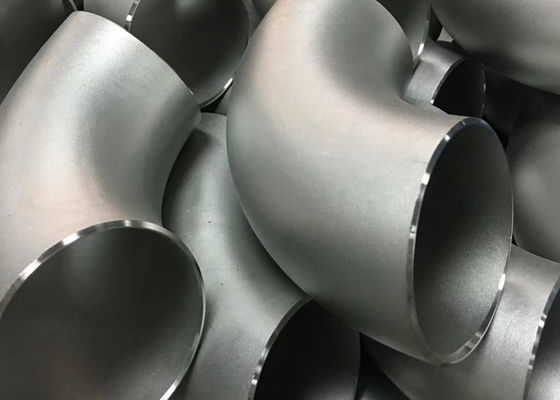

45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend 45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend 45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend 45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend 45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend

Large Image :  45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO9001,PED,CE,ADW2000
Model Number: 1/2"-60"
Payment & Shipping Terms:
Minimum Order Quantity: 1TON
Price: NEGO
Packaging Details: PLYWOODEN CASES,PALLET
Delivery Time: 30DAYS
Payment Terms: T/T, L/C, D/P
Supply Ability: 10000TON PER MONTH

45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend

Description
Type: 45 Degree/90 Degree/180 Degree Elbow, Long Radius/Short Radius Elbow Specification: NPS: 1/2''~24''(Seamless), 24''~72''(Welded) DN: 15~1200
Thickness: SCH20,40,80,120,160,XS, XXS,DIN,SGP Bending Radius: R=1D~10D, R=15D, R=20D
Standard: Carbon Steel ASME B16.9, ASTM A234 WPB Stainless Steel ,ASTM A403 304/304L/310/310S/316/316L/317L/32,Alloy Steel ,ASTM A234 WP1/5/9/11/12/22/91 Paintting: Light Oiling, Black Painting,anti-oil
High Light:

180 degree steel pipe elbow SCH40

,

4 inch 180 degree bend SCH160

,

3'' 180 degree elbow Welded Bend

45 Degree/90 Degree/180 Degree Elbow, Long Radius/Short Radius Elbow



Place of Origin:China

Steel Elbow

The elbow is bent with a complete set of bending equipment, which is divided into two processes: cold simmering and hot pushing.No matter what kind of machine equipment and pipeline, most of the use of elbow, mainly used for oil, gas, infusion, engineering bridge construction.Our pipe caps are made of carbon steel,stainless steel and alloy steel,etc.They feature high strength,good toughness,and high resistance to corrosion,and vibration.

Material:

Carbon steel: ASTM/ASME A234 WPB WPC.

Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911.

Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N.

ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti.

ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H.

Low-temperature steel: ASTM/ASME A402 WPL 3-WPL 6.

High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70.



  • Size
    • Bending radius: R=1D~10D
    • Seamless elbow: 1/2″~24″ DN15~DN600
    • Welded Elbow: 4″~72″ DN150~DN1800
    • Wall Thinkness: sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s
    • Maximum thickness: 120mm

      •  Standards:

      ASTM A234 WPB, ASME B16.9,MSS SP-43,DIN 2617,JIS B2313      ,GB/T12459,GB/T13401,SH3408,SH3409,HG/T21635,HG/T21631

45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend 0



      •  Process of manufacturing

       45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend 1



 •Specification

45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend 2





Range Of Buttweld [B/W] Fitting
Sr. No. Material Size Schedule Specification Item
1 Mild Steel 15 NB To 500 NB Sch. 40 to Sch. XXs A-234 WPB B/W Seamless ANSI B16.9 Bend (Long & Short)
Elbow (180o, 90o & 45o)
Tee (Equal & Unequal)
Reducer (Con & Ecc)
CAP
Stubend
200 NB To 600 NB Sch. 10 To Sch. 80s A-234 WPW B/W Welded ANSI B16.9 (Long & Short)
Nipple (Barrel)
2 Low Temperature Carbon Steel 15 NB To 300 NB Sch. 40 To Sch. XXs A-420 WPL 6 B/W Seamless ANSI B16.9
200 NB To 600 NB Sch. 10 To Sch. 80s A-420 WPL 6 B/W Welded ANSI B16.9




Chemical Composition Requirements of ASTM A105

Element Composition,%
Carbon (C) 0.35max
Manganese (Mn) 0.60–1.05
Phosphorus (P) 0.035max
Sulfur (S) 0.040max
Silicon (Si) 0.10–0.35
Copper (Cu) 0.40max
Nickel (Ni) 0.40max
Chromium (Cr) 0.30max
Molybdenum (Mo) 0.12max
Vanadium (V) 0.08max




Mechanical Properties of ASTM A105

Mechanical Properties Requirements
Tensile strength,min,psi [MPa] 70000 [485]
Yield strength,min,psi [MPa] 36000 [250]
Elongation, min, % 30
Reductionofarea,min,% 30
Hardness,HB,max 187

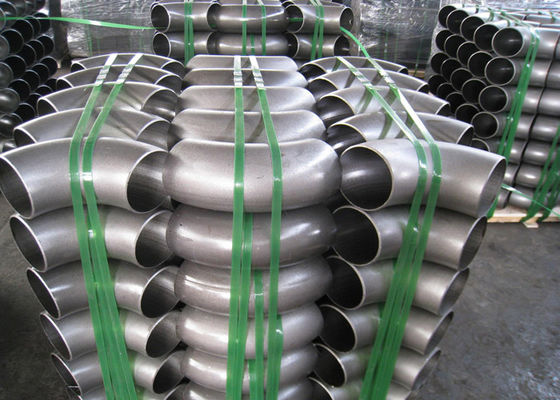

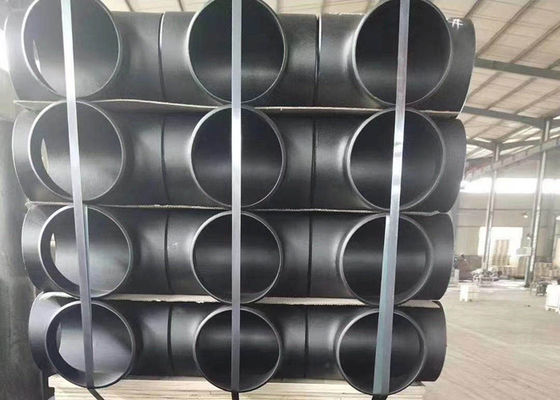

• PACKAGE


Wooden case or wooden pallets or as customer's request....





45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend 3

45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend 4



45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend 5



45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend 6

45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend 7
