Product Details:
|
| Standard: | ANSI B16.9,EN10253,DIN | Material: | A234 WPB/P245GH/S235JRG2/ST37-2 |
|---|---|---|---|
| Stainless Steel: | A182 F304/304L,A182 F3016/316L | Color: | Black, Rust Proof Oil |
| Using: | Pipe Connection | Type: | ELBOW,TEE,REDUCER,CAP |
| High Light: | 72'' Pipe Fitting Elbow ASME,Elbow Tee B16.28 B16.25,A234 WPB EN10253 B16.9 reducer |
||

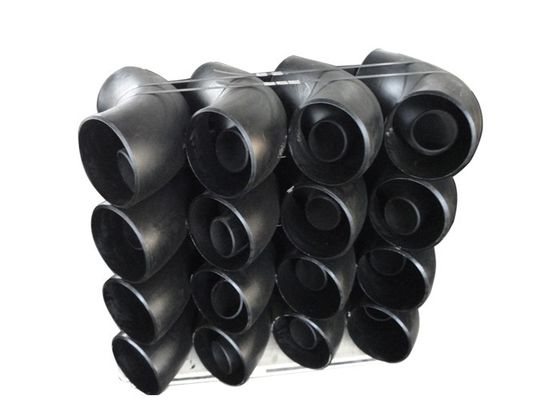

Pipe Fitting Elbow Tee ASME B16.9 and B16.28 Reuder Cap A234 WPB EN10253
The product range below:

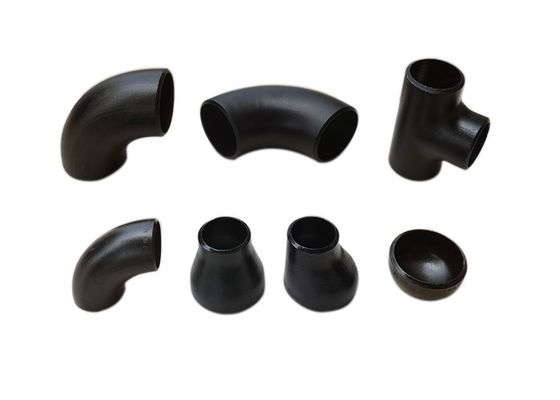

1. Carbon steel pipe fitting
· Kind: Elbow /Tee /Reducer /Cap
· Size: 1/2"-72"
· Material: ASTM A234 WPB
· Thickness: SCH10-SCH160 /STD/XS/XXS
· Standard: ASME B16.9 / B16.28 / B16.25
2. Carbon steel flange (Forged and cast)
· Kind: WN /SO /PL /BL/LJ
· Size: 1/2"-104"
· Material: ASTM A105,SS400,RST37.2,Q235,16Mn,20#,20Mn,S235JR,P245GH,P265GH,P280GH and so on.
· Standard: ASME B,GOST,EN1090-1,DIN,BS4504,AWWA,SABS1123,UNI.

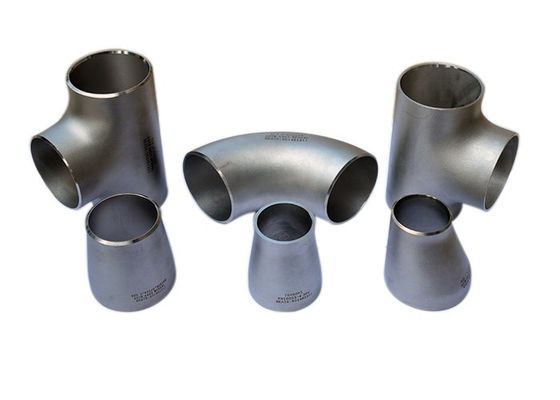

3. Stainless steel pipe fitting
· Kind: Elbow /Tee /Reducer /Cap
· Size: 1/2"-72"
· Material: 304/304L,316/316L.
· Thickness: SCH10-SCH160 /STD/XS/XXS
· Standard: ASME B16.9 / B16.28 / B16.25
4. Stainless steel flange(forged and cast)
· Kind: WN /SO /PL /BL/LJ
· Size: 1/2"-104"
· Material: A182 F304/304L,F316/316L,316Ti,321,317L.
· Standard: ASME B,GOST,EN1090-1,DIN,BS4504,AWWA C207,SABS1123,UNI.
| BUTT-WELDING PIPE FITTINGS DETAILS | ||
| MATERIAL | Carbon Steel : | |
| ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn, | ||
| DIN St37, St45.8, St52.4,St.35.8,St.35.8. | ||
| Stainless Steel: | ||
| 1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti | ||
| 00Cr17Ni14Mo2 304 304L 316 316L | ||
| STANDARD | ASTM / JIS / DIN / BS / GB/GOST | |
| MODEL | 1.Tee(Straight and Reducing) 2.180 DEG Return | |
| 3.Elbow (45/90/180 DEG) 4.Cap | ||
| 5. Reducer(Concentric and Eccentric) | ||
| TYPE | Seam Or Seamless | |
| ELBOW DEGREE | 45 degree, 90 degree, 180 degree | |
| SURFACE | Black Paint, Anti Rust Oil, Hot-Dipped Galvanize | |
| WALL THICKNESS | SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40,STD,XS,SCH60, | |
| SCH80,SCH100,SCH120,SCH140,SCH160,XXS,2MM | ||
| SIZE | 1/2"-48"(Dn15-Dn1200) | |
| CONNECTION | Welding | |
| SHAPE | Equal, Reducing | |
| CERTIFICATE | ISO9001 | |
| APPLICATION | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc | |
| RELATED PRODUCTS | 1. Carbon steel nipples and sockets | 2. Flanges |
| 3. Malleable iron pipe fittings | 4. Pipes | |
| 5. High-pressure fittings | ||
| Customers’ drawings or designs are available. | ||
| PACKAGE | 1> 1/2" - 2" in cartons. | |
| 2>Above 2" in wooden cases. | ||
| Big size is workable by pallets. | ||
| DELIVERY DETAILS | According to the quantities and specifications of each order. | |
| Normal delivery time is from 30 to 45 days after receiving the deposit. | ||
| DN | ø Ext. (D.E.) | Esp. (E) | Raio ( R ) |
| 1/2" | 21,3 | 2,77 | 38,1 |
| 3/4" | 26,7 | 2,87 | 38,1 |
| 1" | 33,4 | 3,38 | 38,1 |
| 1.1/4" | 42,2 | 3,56 | 47,6 |
| 1.1/2" | 48,3 | 3,68 | 57,2 |
| 2" | 60,3 | 3,91 | 76,2 |
| 2.1/2" | 73 | 5,16 | 95,3 |
| 3" | 88,9 | 5,49 | 114,3 |
| 3.1/2" | 101,6 | 5,74 | 133,4 |
| 4" | 114,3 | 6,02 | 152,4 |
| 5" | 141,3 | 6,55 | 190,5 |
| 6" | 168,3 | 7,11 | 228,6 |
| 8" | 219,1 | 8,18 | 304,8 |
| 10" | 273 | 9,27 | 381 |
| 12" | 323,9 | 9,52 | 457,2 |
| 14" | 355,6 | 11,1 |
533,4 |
COMPNAY INTRODUCTION
HEBHEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO., LTD ( XINFENG) was founded in 1988, specializing in the manufacture of forged flanges and pipe fittings. Located in Mengcun Hui Nationality Autonomous Region, known as the base for manufacture of elbows and pipe fittings in China, XINFENG enjoys a pleasant environment and convenient transportation, with Beijing and Tianjin city to the north and the Bohai Sea to the east.
Covering an area of 12000 square meters, equipped with advanced production lines and inspection instruments, Xinfeng now has become one of the biggest flange and pipe manufactures in Hebei Pro., China, with an annual capacity of 8000 tons. Its main production equipment includes forging hammers, ring-rolling machine, lathes, drillers, pushing machine, presses, shot blasting machine etc. for the production of flanges, elbows, tees, reducers and caps at different size range. Materials available are carbon steel, stainless steel and alloy steel. XINFENG has a group of rich-experienced engineers and technical professionals, making it strong in technical force. Products are manufactured in accordance with international standards such as ANSI,DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. XINFENG has obtained ISO 9002 certificate and follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.
XINFENG was licensed with independent export entitlement in 2006 and now its products are mainly for oversee markets, exported far to South Korea, Russia, countries and regions in middle-east, southeast Asia, south America and west Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.
With a new stance, we hope to tighten our relationships with customers from both abroad and domestics on the purpose of mutual benefit and development for our prosperous future. Warmly welcome customers to us for friendship and business negotiation.
1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. What's your terms of payment?
A: T/T, L/C,D/P
7.Do you accept custom design on size?
A: Yes, if the size is reasonable
