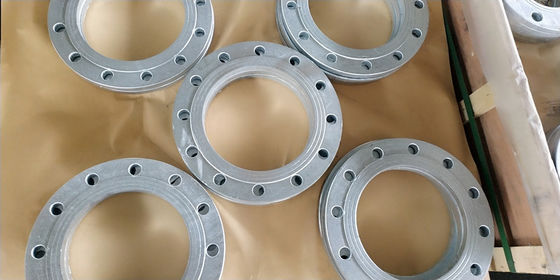

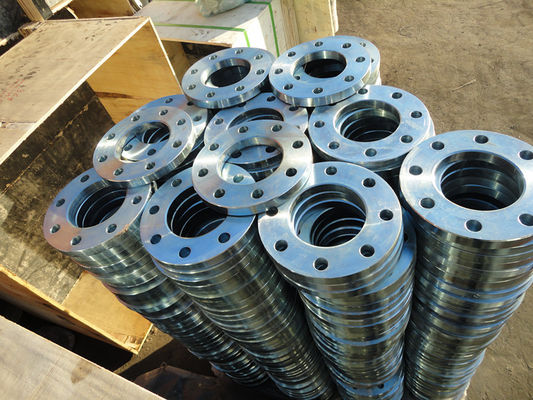

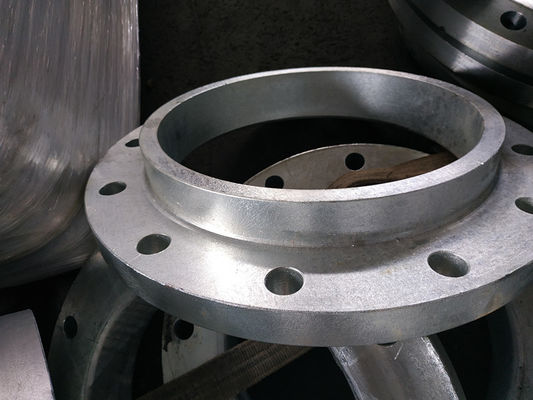

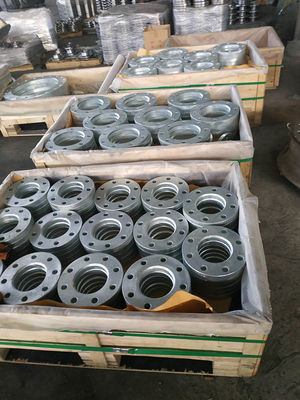

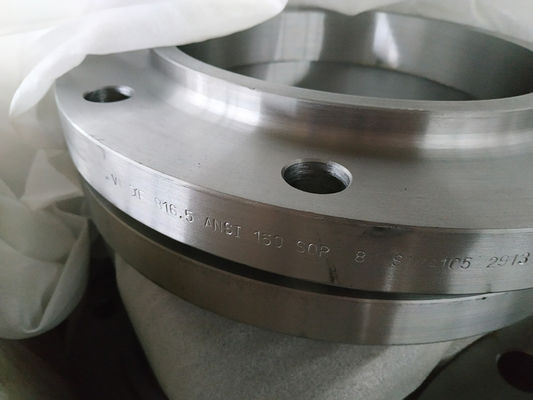

0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange

0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange
0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange 0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange 0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange 0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange 0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange

Large Image :  0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO, CE
Model Number: XF-FLANGE058
Payment & Shipping Terms:
Minimum Order Quantity: 2TONS
Price: USD1580/TON TO USD2640/TON
Packaging Details: PLYWOOD CASES AND PALLETS
Delivery Time: 10-45DAYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000TONS/MONTH
Contact Now

0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange

Description
PRESSURE: 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB STANDARD: ANSI B16.5, ANSI B16.47A, ANSI B16.47B, AWWA CLASS D, DIN, EN1092-1
TYPE: WN FLANGE, SO FLANGE, BLIND FLANGE, SW FLANGE, PLATE FLANGE, LAP JOINT FLANGE SIZE: 1/2" TO 80", 0.5 INCH TO 80 INCH
SURFACE TREATMENT: BLACK PAINTING, YELLOW PAINTING, GALVANISING, ANTI-RUST OIL SEALING FACE FLANGE: RAISED FACE (RF), FLAT FACE (FF), RING JOINT TYPE(RTJ)
Package: Sea Worthy Plywood Cases/pallets Price Term: FOB, CIF, CFR
Production Period: Less Than 60tons Within 30days, More Than 60tons 50days Certificate: PED, ISO
MATERIAL: CARBON STEEL A105 A36 STAINLESS STEEL SS304L SS316L
High Light:

0.5Inch galvanized steel flange

,

80Inch galvanized steel flange

,

Sorf Forged galvanized pipe flange

GALVANIZED STEEL FLANGE ANSI B16.5 ASME B16.47 SLIP ON FLANGE SORF FORGED FLANGE



The Weld neck flange is designed to joint a piping system by butt welding. The hub, or neck, transfer the stresses to the pipe to reduce high stress concentrations. The bore of the weld neck flange matches the pipe bore.
Weld Neck flange is typically provided with a raised face(RF), flat face(FF), or ring type joint face(RTJ). When a raised face is necessary for weld neck flange, the standard height is 1/16" for blind flanges under 400#. For blind flange of 400# and up, the standard blind flange raised face height is 1/4".
Weld Neck Flange manufacturer Duwa Piping can supply weld neck flanges in all materials grades, specification and sizes. Duwa Piping have some stock and can delivery weld neck flange in 3 days.
Specifications:
Size: 1/2" to 96".
Flange Face: Raised Face(RF), Flat Face(FF), Ring Type Joint(RTJ), T&G.
Flange Pressure: 150#--6000#(PN6-PN40).
Schedule: SCH40/XS, STD.
Material:
Carbon Steel: ASTM A105.
Low-Temperature: ASTM A350 LF1 LF2 CL1/CL2, LF3 CL1/CL2.
Stainless Steel: ASTM A182 F304/304L, F316/316L, F321.




SIZE MATERIAL FLANGE TYPE
1/2"-80" Stainless Steel weld neck flange
Slip on Flange
socket weld flange
LAP Joint Flange
Threaded flange
blind flange
CARBON STEEL, STAINLESS STEEL weld neck flange
Slip on Flange
socket weld flange
LAP Joint Flange
Threaded flange
blind flange
Sealing face of flanges RF with serrated finish
FF with 3 waterlines
FF with smooth finis
RTJ (Ring Joint Type)
FF with serrated finish
RF with water lines





Material: ASTM A182 F316.
Class: PN 20.
Size: DN 150.
Standard: ASME B16.5.



ANSI B16.5 Forged Steel Weld Neck Flange, PN50, ASTM A516 - Landee Flange
ø D b g m a J* h k Holes l Kg.
1/2" 88,9 11,1 34,9 30,2 21,3 15,7 47,6 60,3 4 15,9 0,500
3/4" 98,4 12,7 42,9 38,1 26,7 20,8 52,4 69,8 4 15,9 0,700
1" 107,9 14,3 50,8 49,2 33,5 26,7 55,6 79,4 4 15,9 1,100
1 1/4" 117,5 15,9 63,5 58,8 42,2 35,1 57,1 88,9 4 15,9 1,500
1 1/2" 127,0 17,5 73,0 65,1 48,3 40,9 61,9 98,4 4 15,9 1,800
2" 152,4 19,0 92,1 77,8 60,3 52,6 63,5 120,6 4 19,0 2,700
2 1/2" 177,8 22,2 104,8 90,5 73,1 62,7 69,8 139,7 4 19,0 4,400
3" 190,5 23,8 127,0 107,9 88,9 78,0 69,8 152,4 4 19,0 5,200
3 1/2" 215,9 23,8 139,7 122,2 101,6 90,2 71,4 177,8 8 19,0 6,400
4" 228,6 23,8 157,2 134,9 114,3 102,4 76,2 190,5 8 19,0 7,500
5" 254,0 23,8 185,7 163,5 141,2 128,3 88,9 215,9 8 22,2 9,200
6" 279,4 25,4 215,9 192,1 168,4 154,2 88,9 241,3 8 22,2 11,000
8" 342,9 28,6 269,9 246,1 219,1 202,7 101,6 298,4 8 22,2 18,300
10" 406,4 30,2 323,8 304,8 273,0 254,5 101,6 361,9 12 25,4 25,000
12" 482,6 31,7 381,0 365,1 323,8 304,8 114,3 431,8 12 25,4 39,000
14" 533,4 34,9 412,7 400,0 355,6 336,5 127,0 476,2 12 28,6 51,000
16" 596,9 36,5 469,9 457,2 406,4 387,3 127,0 539,7 16 28,6 60,000
18" 635,0 39,7 533,4 504,8 457,2 438,1 139,7 577,8 16 31,7 71,000
20" 698,5 42,9 584,2 558,8 508,0 488,9 144,5 635,0 20 31,7 88,000
22" 749,3 46,0 641,2 609,6 558,8 539,7 149,2 692,1 20 34,9 102,000
24" 812,8 47,6 692,1 663,6 609,6 590,5 152,4 749,3 20 34,9 119,000







Keywords: 1/2", CS A105, GAL, FLANGE, RF, 150 LB, SCRD.
Name: Carbon Steel Threaded Flange.
Material: ASTM A105.
Size: 1/2 Inch (DN15).
Pressure: 150 LB (PN20).
Ends: RF.
Surface Treatment: Galvanized.

Carbon Steel Threaded Flange, 150 LB, 1/2IN, RF
Pipe Normal Diam. O.D. Flange Thk. Of Flange Min Diam.
of
Hub		 Diameter of Raised Face Length Hub.Y Thread Length Diam.
of Bolt
Circle		 Diam.
of Bolt
Holes		 Number
of Bolts		 Diam. of
Bolts
(inch)		 KG LB
inch dn O C X G Y T BC BH BN BD
1/2" 15 89.00 11.20 30.20 35.10 15.70 15.70 60.50 15.80 4 1/2" 0.4 0.9
3/4" 20 98.50 12.70 38.10 42.90 15.70 15.70 69.90 15.80 4 1/2" 0.7 1.5
1" 25 108.00 14.20 49.30 50.80 17.50 17.50 79.30 15.80 4 1/2" 0.8 1.8
1-1/4" 32 117.50 15.70 58.70 63.50 20.60 20.60 88.90 15.80 4 1/2" 1.2 2.6
1-1/2" 40 127.00 17.50 65.00 73.20 22.40 22.40 98.60 15.80 4 1/2" 1.5 3.3
2" 50 152.50 19.10 77.70 91.90 25.40 25.40 120.70 19.10 4 5/8" 2.3 5.1
2-1/2" 65 178.00 22.40 90.40 104.60 28.40 28.40 139.70 19.10 4 5/8" 3.7 8.1
3" 80 190.50 23.90 108.00 127.00 30.20 30.20 152.40 19.10 4 5/8" 4.1 9
3-1/2" 90 216.00 23.90 122.20 139.70 31.80 31.80 177.80 19.10 8 5/8" 5.1 11.2
4" 100 228.50 23.90 134.90 157.20 33.30 33.30 190.50 19.10 8 5/8" 5.9 13
5" 125 254.00 23.90 163.60 185.70 36.60 36.60 215.90 22.40 8 3/4" 7 15.4
6" 150 279.50 25.40 192.00 215.90 39.60 39.60 241.30 22.40 8 3/4" 8.4 18.5
8" 200 343.00 28.40 246.10 269.70 44.50 44.50 298.50 22.40 8 3/4" 13 28.6
10" 250 406.50 30.20 304.80 323.90 49.30 49.30 362.00 25.40 12 7/8" 18 39.5
12" 300 482.50 31.80 365.30 381.00 55.60 55.60 431.80 25.40 12 7/8" 29 64
14" 350 533.50 35.10 400.10 412.80 57.20 57.20 476.30 28.50 12 1" 39 86
16" 400 597.00 36.60 457.20 469.90 63.50 63.50 539.80 28.50 16 1" 47 103
18" 450 635.00 39.60 505.00 533.40 68.30 68.30 577.90 31.80 16 1 1/8" 57 126
20" 500 698.50 42.90 558.80 584.20 73.20 73.20 635.00 31.80 20 1 1/8" 76 167
24" 600 813.00 47.80 663.40 692.20 82.60 82.60 749.30 35.10 20 1 1/4" 97 214





0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange 2



0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange 3



0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange 4



0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange 5
