Product Details:
|
| Standard: | ANSI B16.9,EN10253,DIN | Type: | ELBOW,TEE,REDUCER,CAP |
|---|---|---|---|
| Material: | A234 WPB/P245GH/S235JRG2/ST37-2 | Export: | Since 1988 |
| Stainless Steel: | A182 F304/304L,A182 F3016/316L | Payment: | 30% Advance Payment,70% Against BL Copy |
| Color: | Black, Rust Proof Oil | Location: | Hebei |
| Using: | Pipe Connection | Usage: | GAS Or Petrolem |
| Manufacture: | Seamless And Welded | ||
| High Light: | ST37-2 Elbow Pipe Fitting,S235JR Elbow Pipe Fitting,EN 10253 Tee Reducer Cap |
||

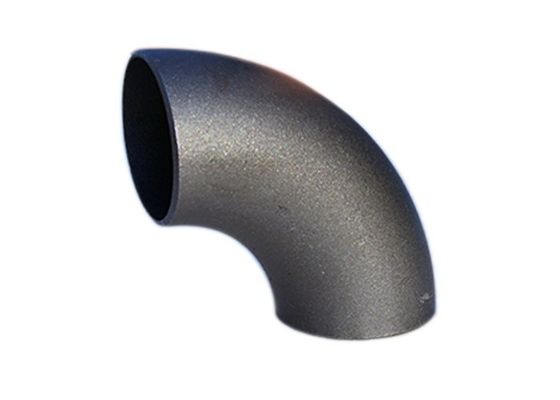

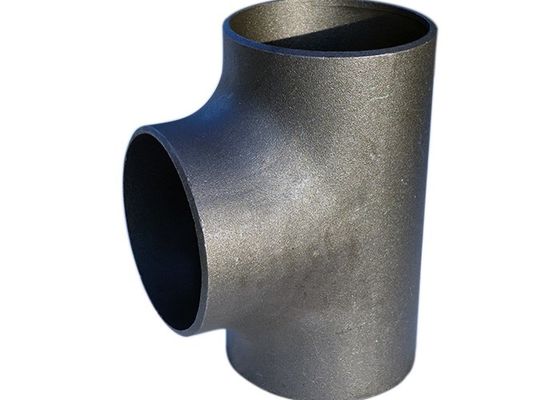

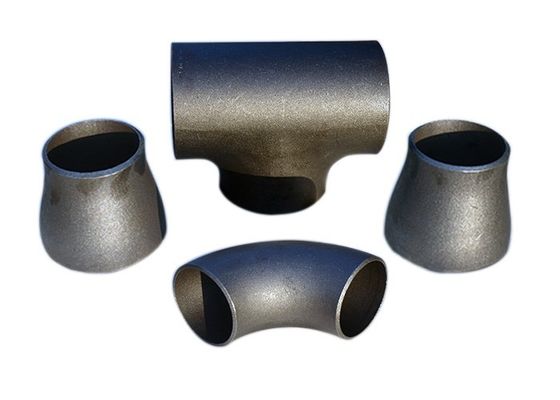

Elbow Tee Fitting DIN and EN10253 Reuder Cap S235JR ST37-2
GERMAN STANDARD PIPE FITTING-BUTT WELDING PIPE FITTING DIN2605-2617 STANDARD:DIN2605,2615,2616,2617
PRODUCT:DIN2605 ELBOW 2D/3D/5D,45/90/180DEG, DIN2615 TEE STRAIGHT/REDUCING,DIN2616 REDUCER CONCENTRIC/ECCENTRIC,DIN2617 CAP
SIZE: 1/2”-24” SEAMLESS; 4-72”SEAM-WELDED
WALL THICKNESS:2MM-25MM
MATERIAL: CARBON STEEL ST35.8; P265GH STAINLESS STEEL 1.4301(304); 1.4306(304L); 1.4436(316); 1.4435(316L); 1.4541(321)
| Product Name | Pipe fitting | |
|
Material |
ASTM |
Carbon Steel :ASTM A234WPB, |
| Stainless steel(ASTM A403 WP304,304L,316,316L,321 | ||
|
DIN |
Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Standard Specification | ASTM,JIS,BS,DIN,UNI etc. | |
| Connection | Welding | |
| Shape | Equal | |
| Technics | Casting | |
| Qualification | ISO9001, API,CE | |
| Equipment | Pushing Machine,Beveling Machine,Sand Blasting Machine | |
| Thickness | Sch10-Sch160 XXS | |
| Size | Seamless 1/2" To 24" Welded 24" To 72" | |
| Surface of Finish | Antirust Oil,Hot Galvanized and Polish | |
| Pressure | Sch5--Sch160,XXS | |
| Standard | ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2 | |
| The third party inspection | BV, SGS, LOIYD, TUV, and other party alloyed by clients. | |
| Minimum Order Quantity | 3ton | |
| Supply Ability | 1500Tons per month | |
| Price | Depending on quantity | |
| Payment Terms | T/T or Western Union or LC | |
| Delivery Time | 7-15 days depending on quantity | |
| Packing | PLY-wooden case or pallet or as for clients' requirements | |
| Application | Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, | |
|
Advantages |
1. 20 + years of production experience at your service. 2. The fastest delivery 3. The lowest price 4. Most comprehensive standards and materials for your choice. 5. 100% export. 6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc. |
|
| Special design available as the requirement of customer | ||
DIN Thickness Standard
| SIZE | Outside Diameter | Wall Thickness |
| DIN | DIN | |
| ½" | 21.3 | 2 |
| ¾" | 26.9 | 2.3 |
| 1" | 33.7 | 2.6 |
| 1¼" | 42.4 | 2.6 |
| 1½" | 48.3 | 2.9 |
| 2'' | 60.3 | 2.9 |
| 2½" | 76.1 | 2.9 |
| 3'' | 88.9 | 3.2 |
| 4'' | 114.36 | 3.6 |
| 5" | 139.7 | 4 |
| 6" | 167.3 | 4.5 |
| 8" | 219.1 | 6.3 |
| 10" | 273 | 6.3 |
| 12" | 329.9 | 7.1 |
| 14" | 355.6 | 8 |
| 16" | 406.4 | 8.8 |
| 18" | 457 | 10 |
| 20" | 508 | 11 |
| 24" | 610 | 12.5 |
COMPNAY INTRODUCTION
HEBHEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO., LTD ( XINFENG) was founded in 1988, specializing in the manufacture of forged flanges and pipe fittings.
XINFENG has a group of rich-experienced engineers and technical professionals, making it strong in technical force. Products are manufactured in accordance with international standards such as ANSI,DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. XINFENG has obtained ISO 9002 certificate and follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.
XINFENG was licensed with independent export entitlement in 2006 and now its products are mainly for oversee markets, exported far to South Korea, Russia, countries and regions in middle-east, southeast Asia, south America and west Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.
With a new stance, we hope to tighten our relationships with customers from both abroad and domestics on the purpose of mutual benefit and development for our prosperous future. Warmly welcome customers to us for friendship and business negotiation.
PACKING WAY:
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 7-30days ,if less than 100ton. 40-50days above 100ton.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you want to get more information of the products, send me e-mail or by skype, whatsapp etc.
Q4:How to visit our company?
A: Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Contact Person: Miss. Mandy Liu
Tel: 0086 18903173335
Fax: 86-0317-6853077-6723871
