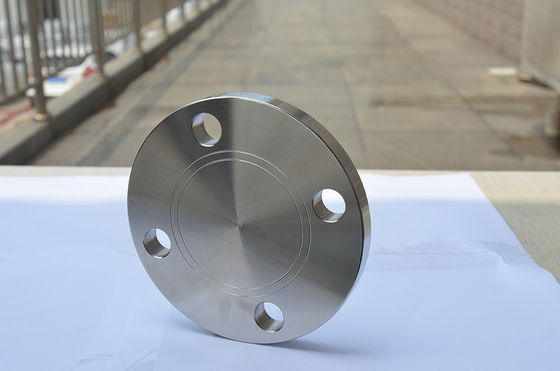

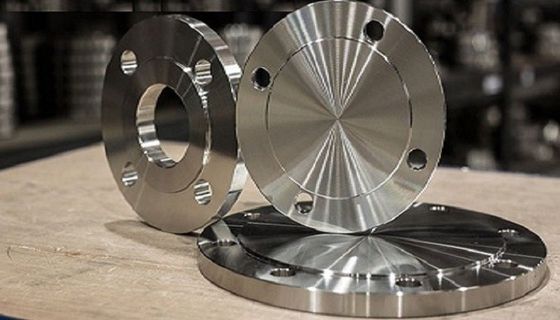

ANSI B16.5 B16.47 Stainless Steel Blind Flange CS A105 WNRF SORF BLIND SWRF LJFF

ANSI B16.5 B16.47 Stainless Steel Blind Flange CS A105 WNRF SORF BLIND SWRF LJFF
ANSI B16.5 B16.47 Stainless Steel Blind Flange CS A105 WNRF SORF BLIND SWRF LJFF ANSI B16.5 B16.47 Stainless Steel Blind Flange CS A105 WNRF SORF BLIND SWRF LJFF

Large Image :  ANSI B16.5 B16.47 Stainless Steel Blind Flange CS A105 WNRF SORF BLIND SWRF LJFF

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO,TUV,CE
Model Number: BLIND WNRF SORF LJFF
Payment & Shipping Terms:
Minimum Order Quantity: 5 Tons
Packaging Details: plywood case and pallet
Delivery Time: 30-40 days
Payment Terms: L/C,, D/P, T/T
Supply Ability: 3000 tons/month

ANSI B16.5 B16.47 Stainless Steel Blind Flange CS A105 WNRF SORF BLIND SWRF LJFF

Description
Material: A105 Color: Black And Yellow Paint
Pressure: Class150-2500
High Light:

B16.47 Stainless Steel Blind Flange

,

LJFF stainless steel blind flange

,

CS A105 threaded blind flange



STANDARD



Type

Pressure

Material size

Process

Surface

treatment



ANSI B16.5, ASME16.47



SORF

WNRF

BLIND

SWRF

LJFF

150LBS,300LBS,

400LBS,600LB

900LBS,1500LBS,2500LBS

carbon steel

stainless steel



1/2"---60"

FORGED, FORGING

Black paint

Yellow paint

Light oil



CLASS 150
APPROXIMATE WEIGHT
SIZE welding neck Slip-on and Threaded Lap Joint Blind Socket welding
SCH40 SCH80 SCH160
1/2" 0.60 0.60 0.60 0.41 0.40 0.43 0.41
3/4" 0.90 0.90 0.90 0.58 0.58 0.63 0.58
1" 1.14 1.18 1.24 0.80 0.80 0.89 0.80
1-1/4" 1.41 1.48 1.54 1.07 1.07 1.20 1.07
1-1/2" 1.81 1.90 2.01 1.37 1.37 1.58 1.37
2" 2.72 2.84 3.07 2.21 2.21 2.39 2.21
2 1-2" 4.45 4.70 4.98 3.32 3.34 4.07 3.32
3" 5.22 5.54 5.90 3.83 3.83 4.92 3.83
3-1/2" 6.40 6.76 7.46 5.20 5.20 5.90 5.20
4" 7.49 7.96 8.90 5.40 5.40 7.13 5.90
5" 9.53 10.54 12.04 6.26 6.26 8.72 6.80
6" 11.80 13.12 15.11 7.50 7.50 11.40 8.60
8" 19.10 21.34 25.84 12.30 12.40 20.10 13.60
10" 24.50 28.85 35.74 17.10 17.10 28.70 19.50
12" 39.90 46.80 58.01 26.50 26.50 43.80 29.10
14" 51.80 62.58 77.60 34.50 38.50 58.20 40.90
16" 64.50 79.42 98.82 45.50 51.20 77.40 44.50
18" 74.90 97.63 124.32 48.50 55.70 94.00 59.00
20" 89.40 120.44 154.18 61.80 70.20 122.70 74.90
24" 121.70 169.37 223.92 87.70 98.70 187.00 99.90

ANSI B16.5 B16.47 Stainless Steel Blind Flange CS A105 WNRF SORF BLIND SWRF LJFF 0

Flange Details:

Material
1) Carbon Steel A105 & Stainless Steel SS304, SS316, SS316L
Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Black paint coating
Surface antirust 3: Yellow paint coating
Surface antirust 4: Galnavized (Hot Dipped Galvanized or  Electro Galvanized)

Connect Face:
Surface   1: Stock finish
Surface   2: Sprial serrated
Surface   3: Two or three grooves (Water Lines)
Surface   4: Smooth finish

Terms
1) Payment: Irrevocable L/C at sight or T/T, D/P
2) Delivery term FOB China Port or CIF Buyer’s Port
3) Packing: Plywood Pallet/case
