Product Details:
|
| CARBON STEEL: | A234WPB | SS STEEL: | 304L ,316L |
|---|---|---|---|

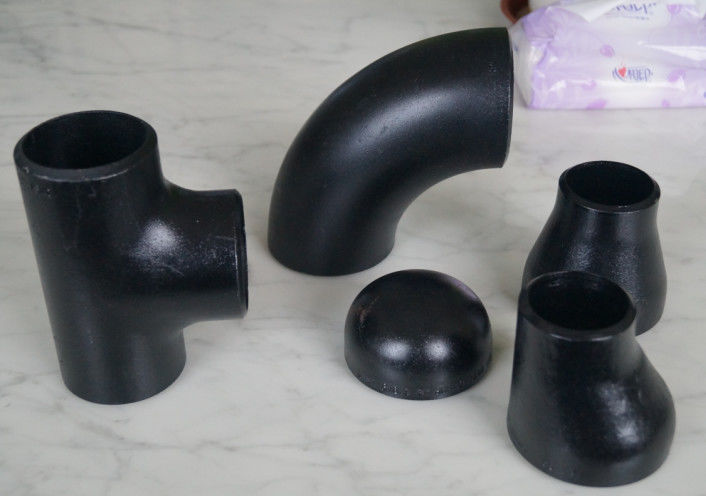

| TYPE: | ELBOW ,TEE ,REDUCER ,CAP | DEGREE: | --- |
| Coating: | Anti-Rust Oil , Black Painting | ||
| High Light: | 316L Reducing Tee Pipe Fitting,304L reducing tee pipe fitting,A234WPB Con Ecc Reducer Cap |
||

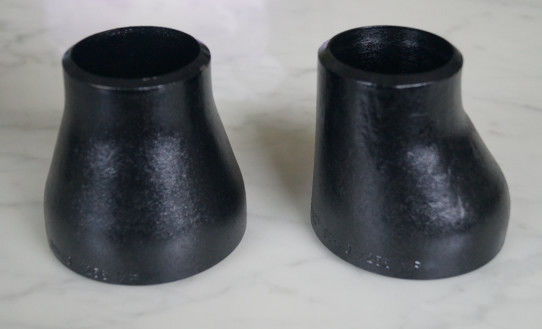

The Specification for ASME B16.9 is a standard that covers Factory Made Wrought Steel Buttwelding Fittings like the Reducer Fitting. This Standard covers parameters such as the overall dimensions, ratings, tolerances, testing, and markings for both wrought carbon as well as alloy steel factory-made buttwelding fittings. The size range of the Reducer En 10253 2 covered in this specification ranges between NPS ½ inch up to 48 inches. The size range for both seamless and welded Ansi B16.9 Reducer is different. To specify, the size range for seamless Asme B16.9 Reducer Dimensions are up to 24 inches, whereas welded Asme B16 9 Reducer Dimensions are available in the size range between 8 inches up to 36 inches.

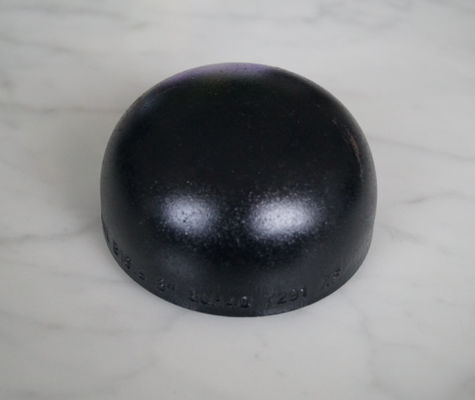

ASME B16.9 Cap act as defensive devices and are planned to secure ANSI B16.9 cap of different shapes. The main reason for utilizing ASME B16.9 Cap is to waterproof the associations. They are too utilized to shut the closes of water-powered or pneumatic channels and tubes. SS End Caps are utilized within the plumbing device of residential, commercial and mechanical water supply lines, machinery and preparing hardware, etc. They are moreover fitted on water pump lines with the sole reason for expelling air blocks.

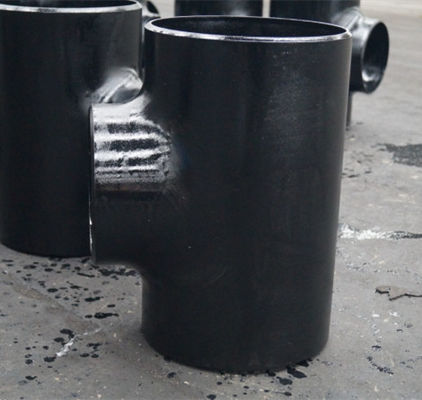

A Reducing Tee is a T-shaped pipe fitting with two outlets that cut at 90 degrees to the most line. These tees are accessible with a combination of differing outlet sizes. In ASME B16.9 Reducing Tee branch port estimate is littler than the other ports of the run. Stainless Steel Reducing tee may be a sort of pipe fitting in which the branch port measure is littler than the ports of the run. This sort of pipe fitting can moreover consider measure decrease from one of the run ports to the other.

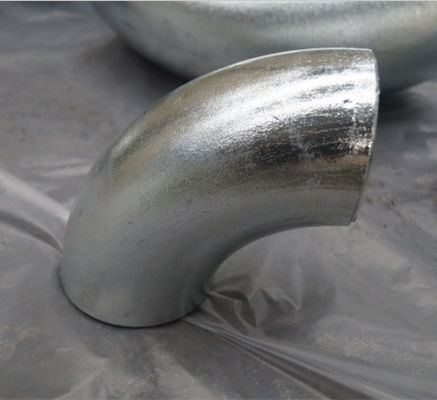

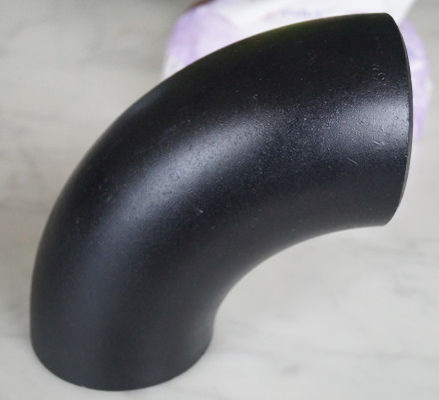

According to the shape, there are straight and reducing elbow.
Depending on the angle, there are normally 45 degree, 90 degree and 180 degree elbow.
As based on radius, there are long radius ( 1.5D) and short radius ( 1D) elbow.
For connection, they can divided into socket weld elbow, butt weld elbow and threaded elbow.
Contact Person: Miss. Mandy Liu
Tel: 0086 18903173335
Fax: 86-0317-6853077-6723871
