Product Details:
|
| Standard: | ANSI B16.5 | Pressure: | 150LBS,300LBS,600LBS,900LBS,1500LBS,2500LBS |
|---|---|---|---|
| Size: | DN15-DN2000 | Type: | WN,SO,THREADED,BLIND |
| Material: | Carbon Steel A105 | Stainless Steel: | A182 F304/304L,F316/316L |
| Color: | Black,Yellow | Usage: | Connection The Pipe |
| Technology: | Forged | Payment Item: | 30% Advance Payment,70% Against BL Copy |
| Application: | Petroleum And Gas | Package: | Plywood Case Or Pallet |
| Location: | Hebei Province | ||
| High Light: | 80"carbon steel blind flange 304L,1/2" carbon steel blind flange 316L,Stainless Steel Slip On Flange |
||
Forged Flange ANSI B16.5 B16.47 SO WN BLIND Threaded ASME A105 Carbon Steel 150LBS 300LBS
FORGED FLANGE
1) ANSI B16.5, ASME B16.5/B16.47 FLANGE
Size range: 1/2" to 80" DN15 to DN2000
Design: welding neck, slip on, blind, socket welding, threaded, lap-joint
Pressure: 150#, 300#, 600#,900#,1500#, 2500#
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
Material: Carbon steel A105, Stainless steel 304/304L, 316/316L
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
2) EN1092-1 FLANGE
Size range: DN15 to DN2000
Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking type12 slip on flange, type 13 threaded flange
Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100
Material: Carbon steel C22.8, S235, S235JR, P235GH, P245GH,P250GH,P280GH,P265GH.Stainless steel: 304/304L, 316/316L
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
3) DIN FLANGE
Size range: DN15 to DN2000
Design: slip on flange DIN2573,2576,2502,2503, 2543,2545
welding neck falnge DIN2631, 2632,2633,2634,2635
blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40
threaded falnge DIN2565,2566,2567,2567
loose flange DIN 2641,2642,2656,2673
Material: Carbon steel ST37.2/S235JR,C22.8. Stainless steel 1.4301, 1.4404
4) GOST FLANGE
Size range: DN15 to DN 2000
Design : plate falnge 12820-80, welding neck flange 12821-80
Pressure: PN6, PN10, PN16, PN25, PN40
Material: Carbon steel CT-20. Stainless steel 304/304L, 316/316L
Coating: rust-proof oil, cold and hot galvanize
5) JIS B2220 FALNGE
Size ragne : 15A to 2000A
Design: SOP, BIND, SOH,
Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K
Material: Carbon steel SS400, Stainless steel SUS304, SUS316
Coating : rust-proof oil, cold and hot galvanize
PRODUCT INTRODUCTION:
| Flange Material | Carbon steel | ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH |
| P250GH, P280GHM 16MN, 20MN ,20# | ||
| Stainless steel | ASTM A182, F304/304L, F316/316L | |
| Alloy steel | ASTM A182 A182 F12,F11,F22,F5,F9,F91etc. | |
| Flange Standard | ANSI | Class 150 Flanges-Class 2500 Flanges |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| JIS | 5K Flanges-20K Flanges | |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| Flange TYPE | 1.Welding neck Flange;;; 2.Slip on | |
| 3.Blind flange4.Long welding neck flange | ||
| 5.Lap joint flange 6.Socket welding | ||
| 7.Threaded flange 8.Flat flange | ||
| Flange Surface | Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer, hot-dipped Galvanized, electrical galvanized | |
| Connection | Welding, Threaded | |
| Technical | Forged, Casting | |
| Flange Size | DN10-DN3600 | |
| Flange Package | 1.>Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside). 2:As Customers' Requirements | |
| Flange Heat Treatment | Normalizing, Annealing, Quenching+Tempering | |
| Flange Certificate | TUV,ISO9001:2008;PED97/23/EC,ISO14001:2004,OHSAS18001:2007 | |
| Flange Applications | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. |
|
Product information:
Flange is the parts which connects two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected as a group of combined sealing structure of the detachable connection. The gasket is added between the two flanges and then fastened by bolts. Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection, usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts can be called "flange type part", but this connection is only part of a device, such as the connection between flange and water pump, it's not inapposite to call water pump as flange type parts,but relative small valve,it can be called as flange type parts .
Materail Detail:
| MECHANICAL PROPERTIES 力学性能 | MECHANICAL PROPERTIES 力学性能 | |||||||||||||||
| Standard | C | Mn | P | S | Si | Cu | Ni | Cr | Mo | Tensile Strength | Yield Strength | Elongation | Reduction of Area | Hardness | ||
| 碳 | 锰 | 磷 | 硫 | 硅 | 铜 | 镍 | 铬 | 钼 | 抗拉强度 | 屈服强度 | 延伸率最小 | 面收缩率 | 硬度 | |||
| % | % | % | % | % | % | % | % | % | Mpa | Mpa | % | % | HB | |||
| A105 | ASTM A105 | MIN% | 0.60 | 0.10 | 485 | 250 | 22 | 30 | ||||||||
| MAX% | 0.35 | 1.05 | 0.035 | 0.040 | 0.35 | 0.40 | 0.40 | 0.30 | 0.12 | 187 | ||||||
| A350LF2 | ASTM A350 | MIN% | 0.60 | 0.15 | 485 | 250 | 22 | 30 | ||||||||
| MAX% | 0.30 | 1.35 | 0.035 | 0.040 | 0.30 | 0.40 | 0.40 | 0.30 | 0.12 | 655 | 197 | |||||
| A694F42 | ASTM A694 | MIN% | 0.15 | 415 | 290 | 20 | ||||||||||
| MAX% | 0.26 | 1.40 | 0.025 | 0.250 | 0.35 | |||||||||||
| A694 F60 | ASTM A694 | MIN% | 0.60 | 0.15 | 517 | 415 | 22 | 30 | ||||||||
| MAX% | 0.22 | 1.35 | 0.025 | 0.025 | 0.35 | 197 | ||||||||||
| A694 F65 | ASTM A694 | MIN% | 0.15 | 530 | 450 | 20 | 45 | 152 | ||||||||
| MAX% | 0.26 | 1.60 | 0.025 | 0.025 | 0.35 | 235 | ||||||||||
| F304 | ASTM A182 | MIN% | 8.00 | 18.00 | 515 | 205 | 30 | 50 | ||||||||
| (1.4301) | MAX% | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 11.00 | 20.00 | 215 | |||||||
| F304L | ASTM A182 | MIN% | 8.00 | 18.00 | 485 | 170 | 30 | 50 | ||||||||
| (1.4307) | MAX% | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 12.00 | 20.00 | 215 | |||||||
| F316 | ASTM A182 | MIN% | 10.00 | 16.00 | 2.00 | 515 | 205 | 30 | 60 | |||||||
| (1.4401) | MAX% | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 14.00 | 18.00 | 3.00 | 215 | ||||||
| F316L | ASTM A182 | MIN% | 10.00 | 16.00 | 2.00 | 515 | 205 | 30 | 60 | |||||||
| (1.4404) | MAX% | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 14.00 | 18.00 | 3.00 | 215 | ||||||
| F321 | ASTM A182 | MIN% | 9.00 | 17.00 | 515 | 205 | 30 | 50 | ||||||||
| MAX% | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 12.00 | 19.00 | |||||||||

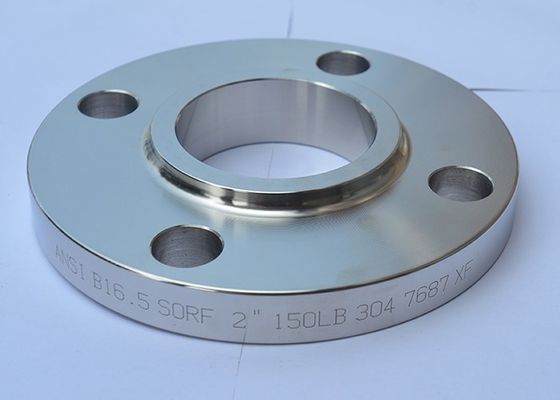

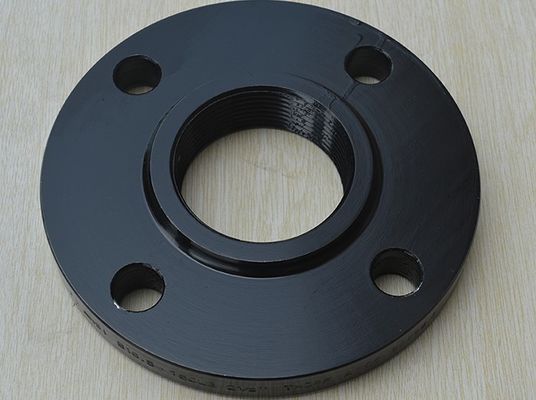

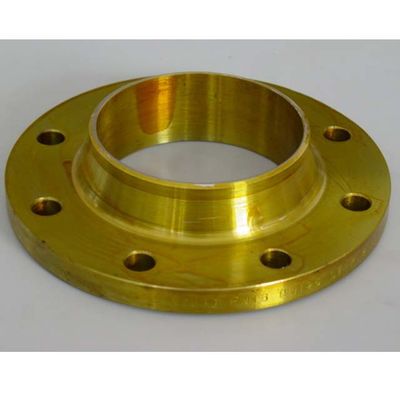

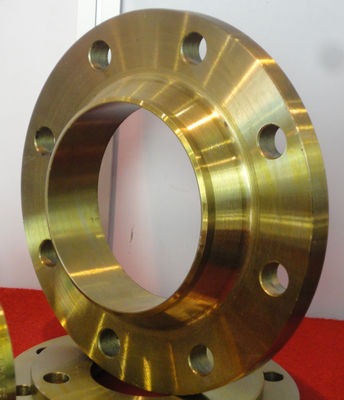

Product Pictures:
Inspection:
COMPNAY INTRODUCTION
HEBHEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO., LTD ( XINFENG) was founded in 1988, specializing in the manufacture of forged flanges and pipe fittings. Located in Mengcun Hui Nationality Autonomous Region, known as the base for manufacture of elbows and pipe fittings in China, XINFENG enjoys a pleasant environment and convenient transportation, with Beijing and Tianjin city to the north and the Bohai Sea to the east.
XINFENG was licensed with independent export entitlement in 2006 and now its products are mainly for oversee markets, exported far to South Korea, Russia, countries and regions in middle-east, southeast Asia, south America and west Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.
With a new stance, we hope to tighten our relationships with customers from both abroad and domestics on the purpose of mutual benefit and development for our prosperous future. Warmly welcome customers to us for friendship and business negotiation.
We are manufacturer ,You can see the Alibaba certification.
Generally 30-40days if less 200ton. Above 200ton, 50days.
Yes, we could offer the sample for free charge but need pay the cost of freight.
30% advance payment,70% against BL copy
