Product Details:
|
| Payment Term: | T/T , L/C , D/P 30% ADVATANGE PAYMENT | DELIVERY TERMS: | FOB/CIF/CFR |
|---|---|---|---|
| Welding Type: | Butt Welded | PORT OF LOADING: | XINGANG |
| COATING: | ANTI-RUST OIL, BLACK PAINTING, GALVANISED | SIZE: | 1/2"-64" |
| MATERIAL: | CARBON STEEL, STAINLESS STEEL | THICKNESS: | SCH5, SCH10, SCH20, STD, SCH40, SCH80, SCH160 |
| STANDARD: | ANSI B16.9, SGP, DIN, GOST, EN | RADIUS: | SHORT RADIUS, LONG RADIUS, 3D, 5D |
| ELBOW DEGREE: | 45D, 90D, 180D | ||
| Highlight: | 180D Carbon Steel Pipe Fittings,90D carbon steel buttweld fittings,45D Butt Welded Pipe Fittings |
||
CARBON STEEL PIPE FITTINGS ASME B16.9 & B16.28 A234WPB BUTT WELDED PIPE FITTINGS
Product Description
| Type | STEEL PIPE FITTINGS ASME B16.9 |
| Size | Seamless Fittings:1/2"~24" DN15~DN600 Welded Fittings: 1/2"~100" DN15~DN2500 |
| Wall thickness | sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s |
| Standards | ANSI B16.9, ASME,DIN2506, JIS, BS,GOST |
| Material | Carbon steel: ASTM/ASME A234 WPB,WPC, ST37-2,ST54 Alloy steel: ASTM/ASME A234 WP9-WP12-WP11-WP22-WP5-WP91 Stainless steel: ASTM/ASME A403 WP 304-304L, WP 316-316L,WP 321,201 |
| Surface treatment | Transparent oil, rust-proof black oil or hot galvanized |
| Packing | wooden case, pallet or as customers' requirement |
| Applications | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
| Min order | 10 piece |
| Delivery time | 7 after receipt of advanced payment |
| Certification | ASME, ISO9001:2000 |
| Delivery Term | FOB(30% down payment in advance, the balance before shipment) CIF or C&F(30% in advance , the balance against with the copy of B/L) |

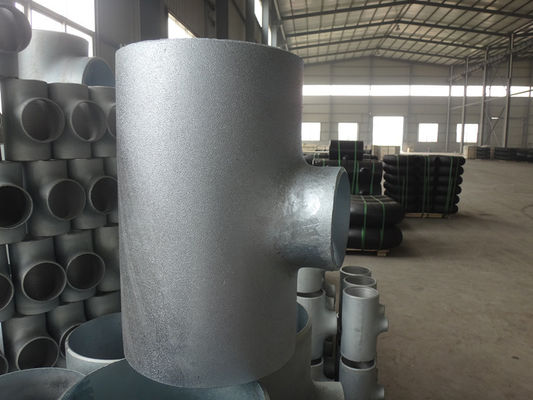

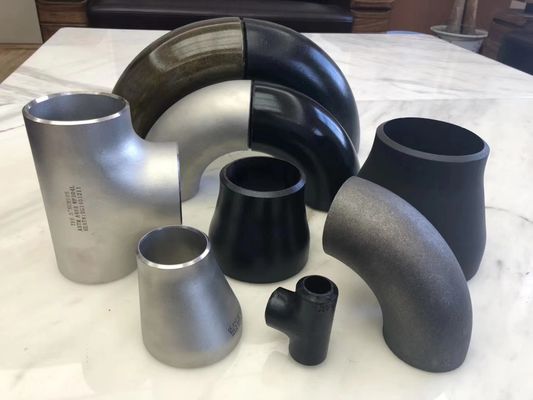

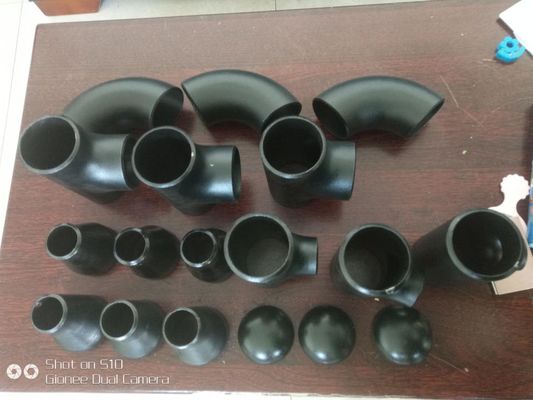

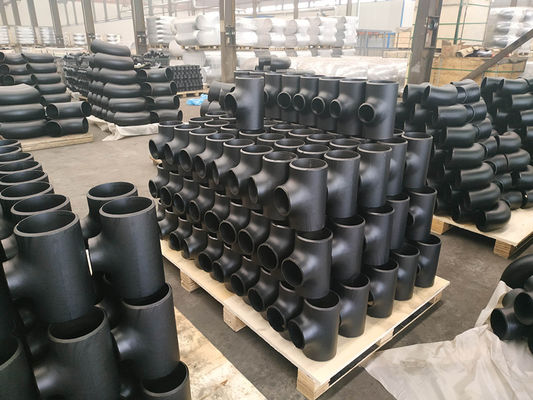

Product picture
Carbon Steel A234WPB, SS304/L, SS316L ELBOW, 45D/ 90D/180D ELBOW, Pipe Fittings Elbow Manufacturer
Dimensions of ASTM A105 Carbon Steel Sch60 45 Degree Pipe Fittings Elbow
| NPS | O.D. D |
90° Long Rad Center to End A |
45° Long Rad Center to End B |
90° 3D Center to End A |
45° 3D Center to End B |
| 1/2 | 21.3 | 38 | 16 | / | / |
| 3/4 | 26.7 | 38 | 19 | 57 | 24 |
| 1 | 33.4 | 38 | 22 | 76 | 31 |
| 1.1/4 | 42.2 | 48 | 25 | 95 | 39 |
| 1.1/2 | 48.3 | 57 | 29 | 114 | 47 |
| 2 | 60.3 | 76 | 35 | 152 | 63 |
| 2.1/2 | 73 | 95 | 44 | 190 | 79 |
| 3 | 88.9 | 114 | 51 | 229 | 95 |
| 3.1/2 | 101.6 | 133 | 57 | 267 | 111 |
| 4 | 114.3 | 152 | 64 | 305 | 127 |
| 5 | 141.3 | 190 | 79 | 381 | 157 |
| 6 | 168.3 | 229 | 95 | 457 | 189 |
| 8 | 219.1 | 305 | 127 | 610 | 252 |
| 10 | 273 | 381 | 159 | 762 | 316 |
| 12 | 323.8 | 457 | 190 | 914 | 378 |
| 14 | 355.6 | 533 | 222 | 1067 | 441 |
| 16 | 406.4 | 610 | 254 | 1219 | 505 |
| 18 | 457 | 686 | 286 | 1372 | 568 |
| 20 | 508 | 762 | 318 | 1524 | 632 |
| 22 | 559 | 838 | 343 | 1676 | 694 |
| 24 | 610 | 914 | 381 | 1829 | 757 |
| 26 | 660 | 991 | 406 | 1981 | 821 |
| 28 | 711 | 1067 | 438 | 2134 | 883 |
| 30 | 762 | 1143 | 470 | 2286 | 946 |
| 32 | 813 | 1219 | 502 | 2438 | 1010 |
| 34 | 864 | 1295 | 533 | 2591 | 1073 |
| 36 | 914 | 1372 | 565 | 2743 | 1135 |
| 38 | 965 | 1448 | 600 | 2896 | 1200 |
| 40 | 1016 | 1524 | 632 | 3048 | 1264 |
| 42 | 1067 | 1600 | 660 | 3200 | 1326 |
| 44 | 1118 | 1676 | 695 | 3353 | 1389 |
| 46 | 1168 | 1753 | 727 | 3505 | 1453 |
| 48 | 1219 | 1829 | 759 | 3658 | 1516 |
