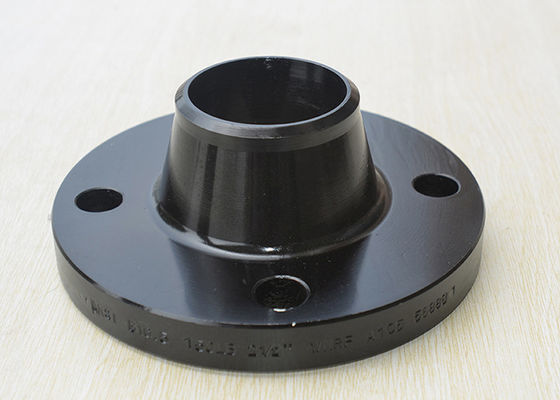

WELD NECK RF FLANGE WNRF 150LBS 300LBS 600LBS 1500LBS A105N F304 304L F316 316L

Large Image : WELD NECK RF FLANGE WNRF 150LBS 300LBS 600LBS 1500LBS A105N F304 304L F316 316L

Product Details:

Place of Origin:	CHINA
Brand Name:	XF
Certification:	ISO PED
Model Number:	1/2"-80"

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Discussible
Packaging Details:	PLYWOODEN CASE
Delivery Time:	4WEEKS
Payment Terms:	T/T, L/C, D/A, D/P
Supply Ability:	4000TON PER MONTH

Contact Now

WELD NECK RF FLANGE WNRF 150LBS 300LBS 600LBS 1500LBS A105N F304 304L F316 316L

Description

Material:	A105N,F304/304L,F316/316L	Color:	Black Paint And Yellow Paint
Size:	1/2"-80"	Surface:	RF,FF
Pressure:	150LBS,300LBS.400LBS,600LBS,1500LBS,2500LBS	Standard:	ANSI B16.5 ,ANSI B16.47-A
Pack:	Pallet,Plywood Cases	Certificate:	MTC,ISO,TUV
High Light:	A105n F304 Weld Neck Rf FLANGE , weld neck raised face flange , FLANGE Wnrf 150lbs 300lbs 316l

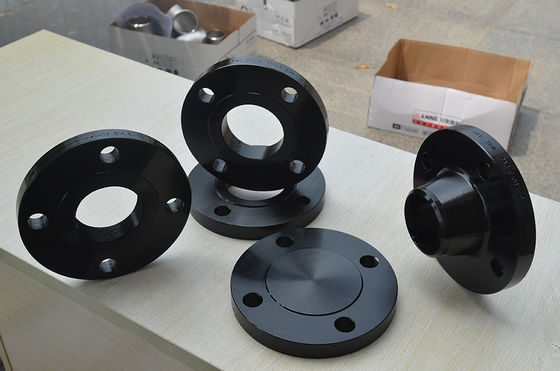

Forged steel flange ANSI B16.5 ASME B16.47 ASTM A105

STANDARD

Type

Pressure

Material

size

Process

Surface

treatment

ANSI B16.5, ASME16.47

SORF

WNRF

BLIND

SWRF

LJFF

150LBS,300LBS,

400LBS,600LB

900LBS,1500LBS,2500LBS

carbon steel

stainless steel

1/2"---60"

FORGED, FORGING

Black paint

Yellow paint

Light oil

WELD NECK RF FLANGE WNRF 150LBS 300LBS 600LBS 1500LBS A105N F304 304L F316 316L 0

ANSI B16.5 Specification

Flange type: welding neck; slip on; blind; lap joint; threaded; socket welding;

Size range: 1/2" to 24"

Pressure: class 150; 300; 400; 600; 900; 1500; 2500

Wall thicnkess: SCH5,SCH10,SCH20,SCH30,XS ,SCH40, SCH80,SCH160,SCH XXS

Sealing joint type: FF (flat face) ; RF ( raisd face) ; LJ (lap joint) RTJ (right joint)

ASME B16.47 Specification

Flange type: welding neck ; blind;

Size range: 12" to 80"

Pressure: class 75; 150; 300; 600; 900;

Wall thicnkess: SCH5,SCH10,SCH20,SCH30,XS ,SCH40, SCH80,SCH160,SCH XXS

Sealing joint type: FF (flat face) ; RF ( raisd face) ; LJ (lap joint) RTJ (right joint)

Material:
1)Carbon Steel: ASTM A105/A105N ,A350 LF1/LF2,A694 F42/46/48/52/60/75 2) Stainless Steel:ASTM A182 F304/304L,316/316L,F321,F51,ASTM A182 F11/F12/F22

Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Black paint coating

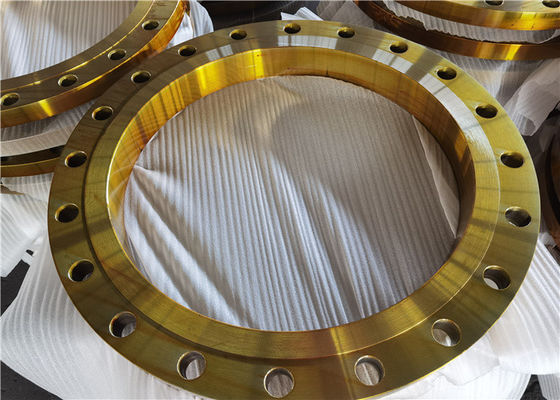

Surface antirust 3: Yellow paint coating
Surface antirust 4: Galnavized (Hot Dipped Galvanized or Electro Galvanized)

Connect Face:
Surface 1: Stock finish
Surface 2: Sprial serrated
Surface 3: Two or three grooves (Water Lines)
Surface 4: Smooth finish

Terms
1) Payment: Irrevocable L/C at sight or T/T, D/P
2) Delivery term FOB China Port or CIF Buyer’s Port

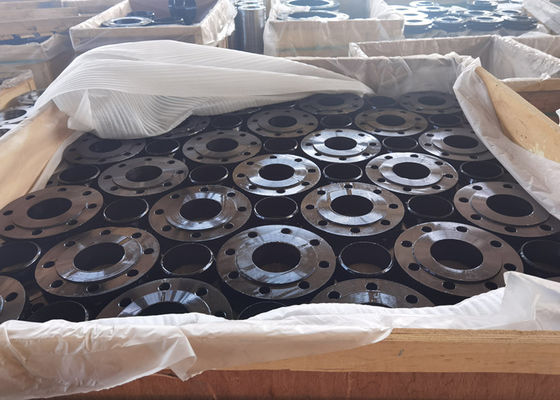

3) Packing: Plywood Pallet/case

ANSI B16.5 Flanges Dimensions

ASME B16.5 Class 150 Dimensions in MM

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. of Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
1⁄2	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
3⁄4	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
11⁄4	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
11⁄2	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
21⁄2	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
31⁄2	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94

DIMENSIONS ARE IN INCHES
Bolt hole diameter 1/8" larger than bolt diameter

ANSI B16.5 Class 300 Flange Dimensions, ASME B16.5 Class 300 Flange Dimensions in mm

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
1⁄2	3.75	0.50	1.38	4	0.63	2.62	0.88	0.62	1.50	0.84	0.81	2.00
3⁄4	4.62	0.56	1.69	4	0.75	3.25	1.09	0.82	1.88	1.05	0.94	2.19
1	4.88	0.62	2.00	4	0.75	3.50	1.36	1.05	2.12	1.32	1.00	2.38
11⁄4	5.25	0.69	2.50	4	0.75	3.88	1.70	1.38	2.50	1.66	1.00	2.50
11⁄2	6.12	0.75	2.88	4	0.88	4.50	1.95	1.61	2.75	1.90	1.13	2.63
2	6.50	0.81	3.62	8	0.75	5.00	2.44	2.07	3.31	2.38	1.25	2.69
21⁄2	7.50	0.94	4.12	8	0.88	5.88	2.94	2.47	3.94	2.88	1.44	2.94
3	8.25	1.06	5.00	8	0.88	6.62	3.57	3.07	4.62	3.50	1.63	3.06
31⁄2	9.00	1.12	5.50	8	0.88	7.25	4.07	3.55	5.25	4.00	1.69	3.13
4	10.00	1.19	6.19	8	0.88	7.88	4.57	4.03	5.75	4.50	1.82	3.32
5	11.00	1.31	7.31	8	0.88	9.25	5.66	5.05	7.00	5.56	1.94	3.82
6	12.50	1.38	8.50	12	0.88	10.62	6.72	6.07	8.12	6.63	2.00	3.82
8	15.00	1.56	10.62	12	1.00	13.00	8.72	7.98	10.25	8.63	2.38	4.32
10	17.50	1.81	12.75	16	1.12	15.25	10.88	10.02	12.62	10.75	2.56	4.56
12	20.50	1.94	15.00	16	1.25	17.75	12.88	12.00	14.75	12.75	2.82	5.06
14	23.00	2.06	16.25	20	1.25	20.25	14.14	13.25	16.75	14.00	2.94	5.56
16	25.50	2.19	18.50	20	1.38	22.50	16.16	15.25	19.00	16.00	3.19	5.69
18	28.00	2.31	21.00	24	1.38	24.75	18.18	17.25	21.00	18.00	3.44	6.19
20	30.50	2.44	23.12	24	1.38	27.00	20.20	19.25	23.12	20.00	3.69	6.32
22	33.00	2.57	25.25	24	1.63	29.25	22.22	21.25	25.25	22.00	3.93	6.43
24	36.00	2.69	27.62	24	1.63	32.00	24.25	23.25	27.62	24.00	4.13	6.56

* For flanges type 21 the outside hub diameter approximately corresponds to the outside pipe diameter.
Note : The p/t rating from ASME B16.5 apply only for flange type 05, 11, 12, 13 and 21 having nominal sizes up to and including DN 600. The p/t rating of all other flanges shall be agreed between the manufacturer and the purchaser.

ANSI B16.5 Class 400 Flange Dimensions

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	3.75	0.56	1.38	4	0.63	2.62	0.88	1.5	0.84	0.88	2.06	*
3⁄4	4.62	0.62	1.69	4	0.75	3.25	1.09	1.88	1.05	1.00	2.25	*
1	4.88	0.69	2.00	4	0.75	3.50	1.36	2.12	1.32	1.06	2.44	*
11⁄4	5.25	0.81	2.50	4	0.75	3.88	1.70	2.50	1.66	1.12	2.62	*
11⁄2	6.12	0.88	2.88	4	0.88	4.50	1.95	2.75	1.90	1.25	2.75	*
2	6.50	1.00	3.62	8	0.75	5.00	2.44	3.31	2.38	1.44	2.88	*
21⁄2	7.50	1.12	4.12	8	0.88	5.88	2.94	3.94	2.88	1.62	3.12	*
3	8.25	1.25	5.00	8	0.88	6.62	3.57	4.62	3.50	1.81	3.25	*
31⁄2	9.00	1.38	5.50	8	1.00	7.25	4.07	5.25	4.00	1.94	3.38	*
4	10.00	1.38	6.19	8	1.00	7.88	4.57	5.75	4.50	2.00	3.50	*
5	11.00	1.50	7.31	8	1.00	9.25	5.66	7.00	5.56	2.12	4.00	*
6	12.50	1.62	8.50	12	1.00	10.62	6.72	8.12	6.63	2.25	4.06	*
8	15.00	1.88	10.62	12	1.12	13.00	8.72	10.25	8.63	2.69	4.62	*
10	17.50	2.12	12.75	16	1.25	15.25	10.88	12.62	10.75	2.88	4.88	*
12	20.50	2.25	15.00	16	1.38	17.75	12.88	14.75	12.75	3.12	5.38	*
14	23.00	2.38	16.25	20	1.38	20.25	14.14	16.75	14.00	3.31	5.88	*
16	25.50	2.50	18.50	20	1.50	22.50	16.16	19.00	16.00	3.69	6.00	*
18	28.00	2.62	21.00	24	1.50	24.75	18.18	21.00	18.00	3.88	6.50	*
20	30.50	2.75	23.12	24	1.62	27.00	20.20	23.12	20.00	4.00	6.62	*
22	33.00	2.88	25.25	24	1.75	29.25	22.22	25.25	22.00	4.25	6.75	*
24	36.00	3.00	27.25	24	1.88	32.00	24.25	27.62	24.00	4.50	6.88	*

Bolt hole diameter 1/8" larger than bolt diameter

ANSI B16.5 Class 600 Flange Dimensions, ASME B16.5 Class 600 Blind Flange Dimensions

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	3.75	0.56	1.38	4	0.63	2.62	0.88	1.50	0.84	0.88	2.06	*
3⁄4	4.62	0.62	1.69	4	0.75	3.25	1.09	1.88	1.05	1.00	2.25	*
1	4.88	0.69	2.00	4	0.75	3.50	1.36	2.12	1.32	1.06	2.44	*
11⁄4	5.25	0.81	2.50	4	0.75	3.88	1.70	2.50	1.66	1.12	2.62	*
11⁄2	6.12	0.88	2.88	4	0.88	4.50	1.95	2.75	1.90	1.25	2.75	*
2	6.50	1.00	3.62	8	0.75	5.00	2.44	3.31	2.38	1.44	2.88	*
21⁄2	7.50	1.12	4.12	8	0.88	5.88	2.94	3.94	2.88	1.62	3.12	*
3	8.25	1.25	5.00	8	0.88	6.62	3.57	4.62	3.50	1.81	3.25	*
31⁄2	9.00	1.38	5.50	8	1.00	7.25	4.07	5.25	4.00	1.94	3.38	*
4	10.75	1.50	6.19	8	1.00	8.50	4.57	6.00	4.50	2.12	4.00	*
5	13.00	1.75	7.31	8	1.12	10.50	5.66	7.44	5.56	2.38	4.50	*
6	14.00	1.88	8.50	12	1.12	11.50	6.72	8.75	6.63	2.62	4.62	*
8	16.50	2.19	10.62	12	1.25	13.75	8.72	10.75	8.63	3.00	5.25	*
10	20.00	2.50	12.75	16	1.38	17.00	10.88	13.50	10.75	3.38	6.00	*
12	22.00	2.62	15.00	20	1.38	19.25	12.88	15.75	12.75	3.62	6.12	*
14	23.75	2.75	16.25	20	1.50	20.75	14.14	17.00	14.00	3.69	6.50	*
16	27.00	3.00	18.50	20	1.63	23.75	16.16	19.50	16.00	4.19	7.00	*
18	29.25	3.25	21.00	20	1.75	25.75	18.18	21.50	18.00	4.62	7.25	*
20	32.00	3.50	23.00	24	1.75	28.50	20.20	24.00	20.00	5.00	7.50	*
22	34.25	3.75	25.25	24	1.88	30.63	22.22	26.25	22.00	5.25	7.75	*
24	37.00	4.00	27.25	24	2.00	33.00	24.25	28.25	24.00	5.50	8.00	*

ANSI B16.5 Class 900 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	* WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
3	9.50	1.50	5.00	8	1.00	7.50	3.57	*	5.00	3.50	2.12	4.00
4	11.50	1.75	6.19	8	1.25	9.25	4.57	*	6.25	4.50	2.75	4.50
5	13.75	2.00	7.31	8	1.38	11.00	5.66	*	7.50	5.56	3.12	5.00
6	15.00	2.19	8.50	12	1.25	12.50	6.72	*	9.25	6.63	3.38	5.50
8	18.50	2.50	10.63	12	1.50	15.50	8.72	*	11.75	8.63	4.00	6.38
10	21.50	2.75	12.75	16	1.50	18.50	10.88	*	14.50	10.75	4.25	7.25
12	24.00	3.12	15.00	20	1.50	21.00	12.88	*	16.50	12.75	4.63	7.88
14	25.25	3.38	16.25	20	1.63	22.00	14.14	*	17.75	14.00	5.12	8.38
16	27.75	3.50	18.50	20	1.75	24.25	16.16	*	20.00	16.00	5.25	8.50
18	31.00	4.00	21.00	20	2.00	27.00	18.18	*	22.25	18.00	6.00	9.00
20	33.75	4.25	23.00	20	2.13	29.50	20.20	*	24.50	20.00	6.25	9.75
24	41.00	5.50	27.25	20	2.63	35.50	24.25	*	29.50	24.00	8.00	11.50

ANSI B16.5 Class 1500 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	So Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	4.75	0.88	1.38	4	0.88	3.25	0.88	1.50	0.84	1.25	2.38	*
3⁄4	5.12	1.00	1.69	4	0.88	3.50	1.09	1.75	1.05	1.38	2.75	*
1	5.88	1.12	2.00	4	1.00	4.00	1.36	2.06	1.32	1.62	2.88	*
11⁄4	6.25	1.12	2.50	4	1.00	4.38	1.70	2.50	1.66	1.62	2.88	*
11⁄2	7.00	1.25	2.88	4	1.12	4.88	1.95	2.75	1.90	1.75	3.25	*
2	8.50	1.50	3.63	8	1.00	6.50	2.44	4.12	2.38	2.25	4.00	*
21⁄2	9.62	1.62	4.13	8	1.12	7.50	2.94	4.88	2.88	2.50	4.12	*
3	10.50	1.88	5.00	8	1.25	8.00	-	5.25	3.50	-	4.62	*
4	12.25	2.12	6.19	8	1.38	9.50	-	6.38	4.50	-	4.88	*
5	14.75	2.88	7.31	8	1.63	11.50	-	7.75	5.56	-	6.12	*
6	15.50	3.25	8.50	12	1.50	12.50	-	9.00	6.63	-	6.75	*
8	19.00	3.62	10.63	12	1.75	15.50	-	11.50	8.63	-	8.38	*
10	23.00	4.25	12.75	12	2.00	19.00	-	14.50	10.75	-	10.00	*
12	26.50	4.88	15.00	16	2.12	22.50	-	17.75	12.75	-	11.12	*
14	29.50	5.25	16.25	16	2.38	25.00	-	19.50	14.00	-	11.75	*
16	32.50	5.75	18.50	16	2.63	27.75	-	21.75	16.00	-	12.25	*
18	36.00	6.38	21.00	16	2.88	30.50	-	23.50	18.00	-	12.88	*
20	38.75	7.00	23.00	16	3.12	32.75	-	25.25	20.00	-	14.00	*
24	46.00	8.00	27.25	16	3.63	39.00	-	30.00	24.00	-	16.00	*

ASME B16.5 Class 2500 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	5.25	1.19	1.38	4	0.88	3.50	1.69	0.84	1.56	2.88	*
3⁄4	5.50	1.25	1.69	4	0.88	3.75	2.00	1.05	1.69	3.12	*
1	6.25	1.38	2.00	4	1.00	4.25	2.25	1.32	1.88	3.50	*
11⁄4	7.25	1.50	2.50	4	1.12	5.13	2.88	1.66	2.06	3.75	*
11⁄2	8.00	1.75	2.88	4	1.25	5.75	3.12	1.90	2.38	4.38	*
2	9.25	2.00	3.63	8	1.12	6.75	3.75	2.38	2.75	5.00	*
21⁄2	10.50	2.25	4.13	8	1.25	7.75	4.50	2.88	3.12	5.62	*
3	12.00	2.62	5.00	8	1.38	9.00	5.25	3.50	-	6.62	*
4	14.00	3.00	6.19	8	1.63	10.75	6.50	4.50	-	7.50	*
5	16.50	3.62	7.31	8	1.88	12.75	8.00	5.56	-	9.00	*
6	19.00	4.25	8.50	8	2.12	14.50	9.25	6.63	-	10.75	*
8	21.75	5.00	10.63	12	2.12	17.25	12.00	8.63	-	12.50	*
10	26.50	6.50	12.75	12	2.63	21.25	14.75	10.75	-	16.50	*
12	30.00	7.25	15.00	12	2.88	24.38	17.38	12.75	-	18.25	*

WELD NECK RF FLANGE WNRF 150LBS 300LBS 600LBS 1500LBS A105N F304 304L F316 316L 8

WELD NECK RF FLANGE WNRF 150LBS 300LBS 600LBS 1500LBS A105N F304 304L F316 316L 9

1. who are we?
We are based in Hebei, China, start from 1986,sell flange and pipe fitting sold around the world.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Forged Flange, Fitting,Forged Fitting, Seamless Pipe.

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Arabic,French

Contact information:

EMAIL:info11@hbxfgj.com

TEL:+86-317-6016755 FAX:+86-317-6853755

Mob/Wechat/WhatsApp:0086-18031772026

Skype:angela.766437

QQ: 1608691724

Tag:

Carbon Steel ANSI B16.5 Flange,

ANSI B16.5 B16.47 SORF FLANGE,

FLANGE Wnrf 150lbs 300lbs 316l

Contact Details

Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd.

Contact Person: Miss. Mandy Liu

Tel: 0086 18903173335

Fax: 86-0317-6853077-6723871

Other Products

16" Ansi B16 5 Weld Neck Flange 150 Black Paint Coating

Customization: OEM, ODM

size: 1/ 2", 3/ 4", 1", 11/ 4", 11/ 2", 2", 21/ 2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18",

Coating: BLACK PAINT

Connection Type: WELDING

Carbon Steel Forged Schedule 40 Pipe Flange Asme B16.5 12"

Coating: BLACK PAINT

Pressure Rating: CLASS150-CLASS2500，Class 150, Class 300,Class 400, Class 600, Class 900, Class 1500 ,Class 2500

Face Type: RF,RTJ.Black Paint, Yellow Paint,transparent Paint, Cold And Hot Dip Galvanize

Technics: Forged

Alloy Steel Sch 40 Flange Asme B16.47 Ser B Coated With Black Paint

Face Type: RF,RTJ.Black Paint, Yellow Paint,transparent Paint, Cold And Hot Dip Galvanize

Material: Carbon Steel, A105,A105N,ASTM A350 LF2，Stainless Steel, Alloy Steel

size: 1/ 2", 3/ 4", 1", 11/ 4", 11/ 2", 2", 21/ 2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18",

Connection Type: WELDING

3/4" Asme B16.5 Carbon Steel Weld Neck Flange Std Thickness Oem Customization

Connection Type: WELDING

thickness: STD, SCH40, SCH80, SCH160. SCHXXS

Pressure Rating: CLASS150-CLASS2500，Class 150, Class 300,Class 400, Class 600, Class 900, Class 1500 ,Class 2500

Face Type: RF,RTJ.Black Paint, Yellow Paint,transparent Paint, Cold And Hot Dip Galvanize

Astm A350 Lf2 Stainless Steel Cast Flange Ansi B16.5 Asme B16.47

Connection Type: WELDING

size: 1/ 2", 3/ 4", 1", 11/ 4", 11/ 2", 2", 21/ 2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18",

Technics: Forged

Material: Carbon Steel, A105,A105N,ASTM A350 LF2，Stainless Steel, Alloy Steel

WELD NECK RF FLANGE WNRF 150LBS 300LBS 600LBS 1500LBS A105N F304 304L F316 316L

WELD NECK RF FLANGE WNRF 150LBS 300LBS 600LBS 1500LBS A105N F304 304L F316 316L

WELD NECK RF FLANGE WNRF 150LBS 300LBS 600LBS 1500LBS A105N F304 304L F316 316L

A105n F304 Weld Neck Rf FLANGE

weld neck raised face flange

FLANGE Wnrf 150lbs 300lbs 316l

Type

Pressure

Process

SORF

1/2"---60"

FORGED, FORGING

ANSI B16.5 Flanges Dimensions

ASME B16.5 Class 150 Dimensions in MM

ANSI B16.5 Class 300 Flange Dimensions, ASME B16.5 Class 300 Flange Dimensions in mm

ANSI B16.5 Class 400 Flange Dimensions

ANSI B16.5 Class 600 Flange Dimensions, ASME B16.5 Class 600 Blind Flange Dimensions

ANSI B16.5 Class 900 Flange Dimenisons

ANSI B16.5 Class 1500 Flange Dimenisons

ASME B16.5 Class 2500 Flange Dimenisons

Carbon Steel ANSI B16.5 Flange,

ANSI B16.5 B16.47 SORF FLANGE,
