Product Details:
|
| Material: | Carbon Steel And Stainless Steel | Collor: | Light Oil |
|---|---|---|---|
| Pressure: | PN2.5,PN06,PN10,PN16, PN25,PN40,PN63,PN100, | Type: | 01,02,04,05 11,12,13,32,34 |
| Size: | 1/2"---80" | E-MAIL: | Info4@hbxfgj.com |
| High Light: | PN06 CARBON STEEL PLATE FLANGE,PN06 PN10 CARBON STEEL PLATE FLANGE,PN06 PN63 PN100 SORF FLANGE |
||
EN1092-1 TYPE01 PLATE SORF CARBON STEEL P245GH PLATE FLANGE PRESSURE PN06 PN10 PN16 PN25 PN40 PN63 PN100
|
STANDARD
|
Type |
Pressure |
Material | size |
Process |
Surface treatment |
|
EN 1092-01
|
01,02,04,05 11,12,13,32,34 |
PN2.5,PN06,PN10,PN16, PN25,PN40,PN63,PN100, |
carbon steel stainless steel |
1/2"---80" |
FORGED, FORGING |
Black paint Yellow paint Light oil |
| EN1092-1 PN16 Weight (kgs.) | ||||||
| SIZE | TYPE 01 PLATE TYPE |
TYPE 02 LOOSE FLANGE |
TYPE 05 BLIND FLANGE |
TYPE 11 WELD NECK FLANGE |
TYPE 12 SLIP ON FLANGE |
TYPE 13 THREADED FLANGE |
| KGS/PC | KGS/PC | KGS/PC | KGS/PC | KGS/PC | KGS/PC | |
| DN 15 | 0.67 | 0.65 | 0.81 | 0.77 | 0.72 | 0.72 |
| DN 20 | 0.94 | 0.91 | 1.14 | 1.09 | 1.04 | 1.04 |
| DN 25 | 1.11 | 1.08 | 1.38 | 1.30 | 1.25 | 1.25 |
| DN 32 | 1.82 | 1.77 | 2.03 | 1.91 | 1.81 | 1.81 |
| DN 40 | 2.08 | 2.02 | 2.35 | 2.15 | 2.06 | 2.06 |
| DN 50 | 2.73 | 2.52 | 2.88 | 2.53 | 2.43 | 2.43 |
| DN 65 | 3.16 | 3.05 | 3.51 | 3.03 | 3.18 | 3.18 |
| DN 80 | 3.60 | 3.48 | 4.61 | 3.92 | 4.12 | 4.12 |
| DN 100 | 4.39 | 4.20 | 5.65 | 4.62 | 4.47 | 4.47 |
| DN 125 | 5.41 | 5.21 | 8.13 | 6.30 | 6.13 | 6.13 |
| DN 150 | 7.14 | 6.89 | 10.50 | 7.81 | 7.92 | 7.92 |
| DN 200 | 9.73 | 9.31 | 16.20 | 11.50 | 9.80 | 9.80 |
| DN 250 | 14.20 | 13.50 | 25.00 | 16.70 | 13.60 | 13.60 |
| DN 300 | 19.00 | 18.00 | 35.10 | 22.10 | 17.20 | 17.20 |
| DN 350 | 28.20 | 27.00 | 48.00 | 32.80 | 27.90 | 27.90 |
| DN 400 | 35.90 | 34.60 | 63.50 | 41.10 | 35.70 | 35.70 |
| DN 450 | 46.10 | 44.60 | 96.60 | 50.60 | 45.00 | 45.00 |
| DN 500 | 64.00 | 62.00 | 133.00 | 66.20 | 60.40 | 60.40 |
| DN 600 | 102.00 | 98.80 | 226.00 | 104.00 | 94.00 | 94.00 |
Material
1) Carbon Steel P245GH,P250GH,S235 & Stainless Steel SS304, SS316, SS316L
Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Black paint coating
Surface antirust 3: Yellow paint coating
Surface antirust 4: Galnavized (Hot Dipped Galvanized or Electro Galvanized)
Connect Face:
Surface 1: Smooth finish
Surface 2: Sprial serrated
Surface 3: Two or three grooves (Water Lines)
(Raised face=RF ,Flat face=FF)
Terms:
1) Payment: Irrevocable L/C at sight or T/T, D/P
2) Delivery term FOB China Port or CIF Buyer’s Port

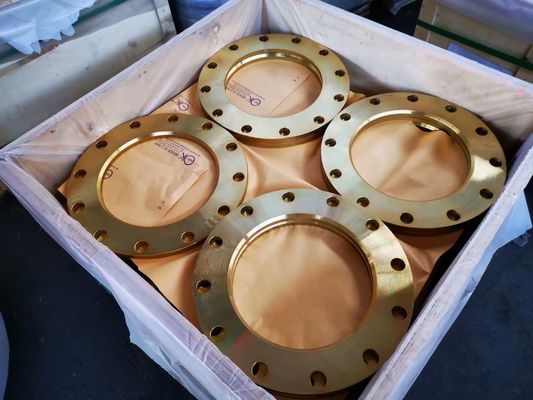

3) Packing: Plywood Pallet/case
Contact:
Sales Manager: Grace Zhang
HEBEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO.,LTD.
Add.: Mencun County,Cangzhou City,Hebei province,China 061400
Mobile:86 18031772015 (wechat, whatsapp)
Tel: 86-317-6725755
Email: info4@hbxfgj.com
Skype: cangzhouzhangnan
FAQ:
1. What is your MOQ?
Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 150m - 200m.
3. What is your delivery time?
We wil deliver in 30-45 days
4. Can you accept mixed products in one container?
Yes, we accept for sure.
