Product Details:
|
| CARBON STEEL: | P245GH;P250GH;A105;SS400;ST37.2 | STAINLESS: | F304;F304L;F316;F316L |
|---|---|---|---|
| SIZE: | 1/2"-48" | PRESSURE: | 150#;300#;600#;900#;1500#;2500# |
| SURFACE TREATMENT: | BLACK;YELLOW;ANTI-RUST OIL;HOT DIPPED GALVANISED | USAGE: | Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects Etc. |
| High Light: | ST37.2 carbon steel pipe flanges,SS400 carbon steel pipe flanges,48 Inch carbon steel forged flanges |
||

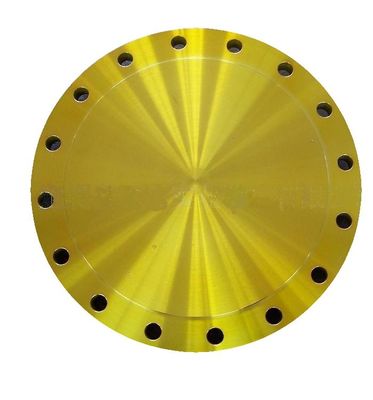

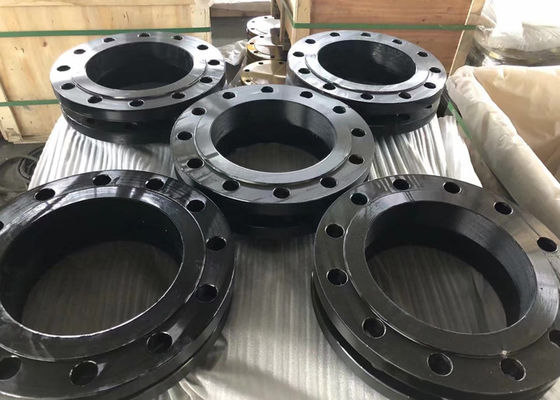

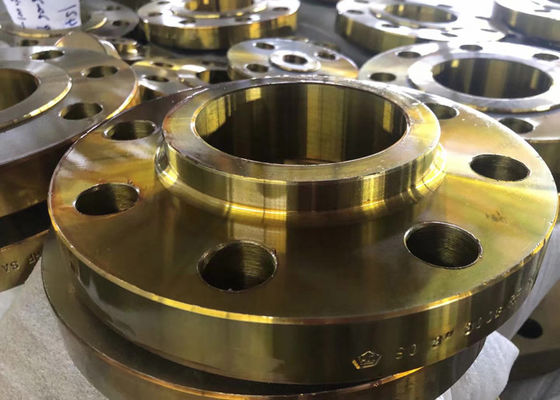

Carbon Steel Flange Ansi B16.5 & Asme B16.47 Black Yellow Color Slip On Weld Neck Blind
Slip-on flanges are a popular type of pipe flanges. These are type of flanges that slide over the end of piping and then welded in place. These flanges are ideal for lower pressure applications. These are easily fitted and welded into different pipes. Welding reduces fabrication costs of these pipes. These are available in wide variety of sizes and applications.

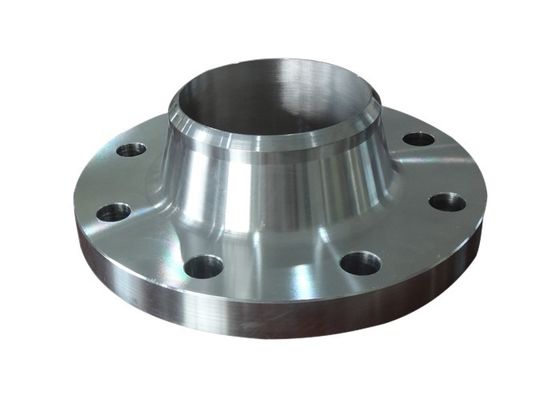

Weld Neck Flanges are designed to be joined to a piping system by butt welding. the WN Flange is relatively expensive because of its long neck, but is preferred for high stress applications. The neck, or hub, transmits stresses to the pipe, reducing stress concentrations at the base of the Welding-Neck flanges. The gradual transition of thickness from the base of the hub to the wall thickness at the butt weld provides important reinforcement of the Weld Neck flange. The bore of the Weld-Neck flange matches the bore of the pipe, reducing turbulence and erosion.
| Specification (Latest edition) | Item Type | Pressure Class | Size Range |
| ASME/ANSI B16.5 | Blind, Weld Neck, Slip-on, Socket Weld, Threaded and Lap Joint Flanges | 150 to 2500LBS | 26“ to 60" |
| 150 to 1500LBS | 26“ to 48" | ||
| ASME/ANSI B16.47 | Orifice Flanges ( Weld neck, Slip-on, Threaded) | 75 to 300LBS | 1/2“ to 12" |
| 400, 600LBS | 26“ to 60" | ||
| 900LBS | 26“ to 48" | ||
| ASME/ANSI B16.36 | Orifice Flanges ( Weld neck, Slip-on, Threaded) | 300 To 2500LBS | 1" to 12" |
| EN 1092-1 / DIN / BS 4504 Flanges | 01 (Plate flange), 02 (Loose plate flange for Types 32—37), 04 (Loose plate flange for Type 34),05 (Blind flange), 11 (Weld-neck flange), 12 (Hubbed slip-on flange), 13 (Hubbed | PN2.5 to PN16 | 10mm to 1800mm |
| PN25 | 10mm to 1000mm | ||
| PN40 | 10mm to 600mm | ||
| PN63 | 10mm to 400mm | ||
| PN100 | 10mm to 350mm | ||
| PN160, PN250 | 10mm to 300mm | ||
| PN320 | 10mm to 250mm | ||
| PN400 | 10mm to 200mm | ||
| BS 10 | Blind, Slip-on and Welding neck flanges | TABLE-A, D, E, F, H, J, K, R, S, T | 15mm to 600mm |
| ASME/ANSI B16.9/MSS SP-43 | Stub end -Type:A, B, C (Short pattern) | S10, S40, S80 | ½” to 24” |
Note: We can also manufacture accordingd to other standards like, API-605, UNI, AWWA and Custom Drawings of customers
Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ), Large Raised face (LRF)
Coating/Surface Treatment (if applicable): Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
