Home ProductsFLANGE GOST 33259

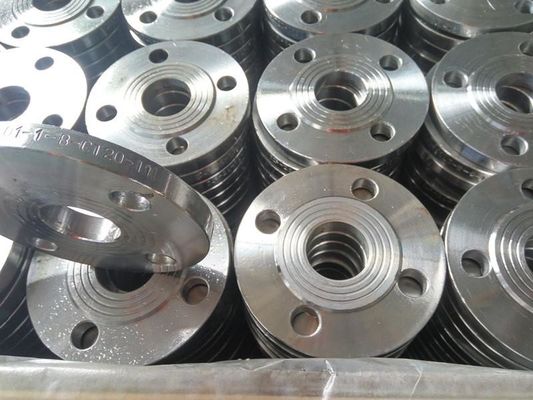

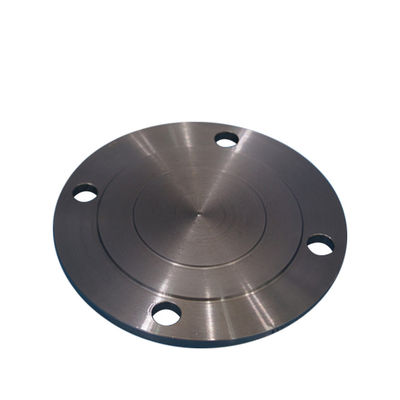

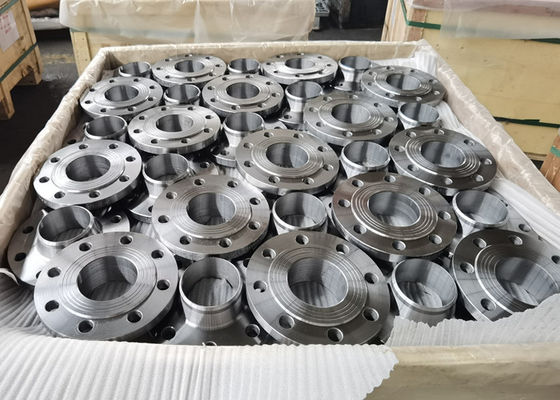

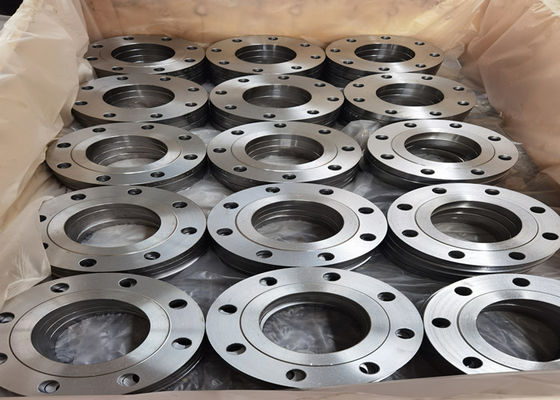

Class 150 To 2500 Forged Carbon Steel Flange GOST 33259 12820 12821 12836

Certification
China Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd. certification
China Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd. certification
I'm Online Chat Now

Class 150 To 2500 Forged Carbon Steel Flange GOST 33259 12820 12821 12836

Class 150 To 2500 Forged Carbon Steel Flange GOST 33259 12820 12821 12836
Class 150 To 2500 Forged Carbon Steel Flange GOST 33259 12820 12821 12836 Class 150 To 2500 Forged Carbon Steel Flange GOST 33259 12820 12821 12836 Class 150 To 2500 Forged Carbon Steel Flange GOST 33259 12820 12821 12836 Class 150 To 2500 Forged Carbon Steel Flange GOST 33259 12820 12821 12836

Large Image :  Class 150 To 2500 Forged Carbon Steel Flange GOST 33259 12820 12821 12836

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: TUV , ISO9001
Model Number: ½" (15 NB) to 48" (1200NB) in GOST 33259,GOST 12820,GOST 12821,GOST 12822,GOST 12836
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: --
Packaging Details: No Fumigate or Fumigate Plywood/Wood Pallet or Case
Delivery Time: 30 DAYS -40DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000-3000 Tons per month

Class 150 To 2500 Forged Carbon Steel Flange GOST 33259 12820 12821 12836

Description
Size: 1/2" NB TO 48"NB Material: Carbon Steel And Stainless Steel
Certificates: ISO TUV Pressure: PN6-100
Package: Plywood Cases And Pallets Surface: Black Paint, Rust Proof Oil,yellow Paint
High Light:

12836 Forged Carbon Steel Flange

,

2500 Forged Carbon Steel Flange

,

Class 150 GOST 33259 Flange

FLANGE GOST 33259,GOST 12820,GOST 12821,GOST 12836 FORGED CARBON STEEL



1) ANSI B16.5, ASME B16.47 FLANGE

Size range: 1/2" to 80" DN15 to DN2000

Design: welding neck, slip on, blind, socket welding, threaded, lap-joint

Pressure: 150#, 300#, 600#,900#,1500#, 2500#

Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS

Material: carbon steel A105, stainless steel 304/304L, 316/316L

Coating: black paint, yellow transparent paint, cold and hot dip galvanize

Package: seaworthy plywooden case, wooden pallet



2) EN1092-1 FLANGE

Size range: DN15 to DN2000

Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking

type12 slip on flange, type 13 threaded flange

Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100

Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L

Coating: black paint, yellow transparent paint, cold and hot dip galvanize

Package: sea worthy plywooden case, wooden pallet



3) DIN FLANGE

Size range: DN15 to DN2000

Design: slip on flange DIN2573,2576,2502,2503, 2543,2545

welding neck falnge DIN2631, 2632,2633,2634,2635

blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40

threaded falnge DIN2565,2566,2567,2567

loose flange DIN 2641,2642,2656,2673

Material: carbon steel ST37.2, stainless steel 1.4301, 1.4404



4) GOST FLANGE

Size range: DN15 to DN 2000

Design : plate falnge 12820-80, welding neck flange 12821-80

Pressure: PN6, PN10, PN16, PN25, PN40

Material: carbon steel CT-20, stainless steel 304/304L, 316/316L

Coating: rust-proof oil, cold and hot galvanize

Package: sea worthy plywooden case, wooden pallet



5) JIS B2220 FALNGE

Size ragne : 15A to 2000A

Design: SOP, BIND, SOH,

Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K

Material: carbon steel SS400, stainless steel SUS304, SUS316

Coating : rust-proof oil, cold and hot galvanize

Packing: sea worthy plywooden case, wooden pallet









Product Despriction

Items Forged Flanges, EN1092-1 & DIN Forged Flanges
Face Finish RF,FF,RTJ,TF,GF
Standard ANSI ANSI B16.5 ASME B16.47 series A/B
DIN DIN 2631 2573 2527 2565 2641
GOST GOST 12820-80,GOST 12821-80, GOST 33259,GOST 12822,GOST 12836  Blind
EN EN1092-1:2002
JIS JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210
BS BS4504,BS10 Table D/E
UNI UNI 2253-67,UNI6091-67,UNI2276-67,UNI2280-67,UNI6089-67
SABS SABS 1123
  ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 ,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Material ANSI CS A105/SA 105N,SS 304/304L,316/316L
DIN CS RST37.2;S235JR SS 304/304L,316/316L
GOST CS CT20;16MN;SS 304/304L,316/316L
EN CS RST37.2;S235JR;C22.8SS 304/304L,316/316L
JIS CS SS400,SF440,SS 304/304L, 316/316L
BS CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L
UNI CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L
SABS CSRST37.2;S235JR;Q235;SS 304/304L,316/316L
  Stainless Steel Forged Flanges: ASTM A182 F 304, 304L, 316, 316L
Carbon Steel Forged Flanges: ,S235JRG2,P245GH ,P250GH,A105,SS400,SF440
Pressure ANSI Class 150, 300, 600, 900, 1500 ,2500
DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100
GOST PN6,PN10,PN16,PN25
EN PN6,PN10,PN16,PN25,PN40,PN64,PN100
JIS 1K,2K,5K,10K,16K,20K,30K,40K
BS PN6,PN10,PN16,PN25,PN40,PN64,PN100
UNI PN6,PN10,PN16,PN25,PN40
SABS 600KPA,1000,1600,2500,4000
Size ANSI 1/2” – 60”
DIN DN15-DN2000
GOST DN10-DN1600
EN DN15-DN2000
JIS 15A-1500A
BS DN15-DN2000
UNI DN10-DN2000
SABS DN10-DN1200
Coating Black Paint, Yellow Paint, Anti-rust oil, Galvanizing etc
Usage Used for the connection of all kinds of pipeline
to convey the water, steam, air, gas and oil
Package Wooden cases/pallets
Delivery Within 30 days
Certificate TUV, ISO9001
Pressure Class Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.As per drawing
