Product Details:
|
| Product: | Butt Welded Pipe Elbow | Wall Thickness: | SCH10, SCH20,SCH30, STD ,SCH40,SCH80,SCH160 |
|---|---|---|---|
| Material: | Carbon Steel ASTM A234 WPB, P265GH | Size: | 1/2" To 24" For Seamless Type; 4" To 72" For Welded Type |
| High Light: | DIN2605 JIS B2311 Elbow,JIS B2311 GOST 17375 Elbow,EN10235 DIN2605 Elbow |
||
ASME B16.9, EN10235, DIN2605, JIS B2311, GOST 17375 ELBOW CARBON STEEL & STAINLESS STEEL

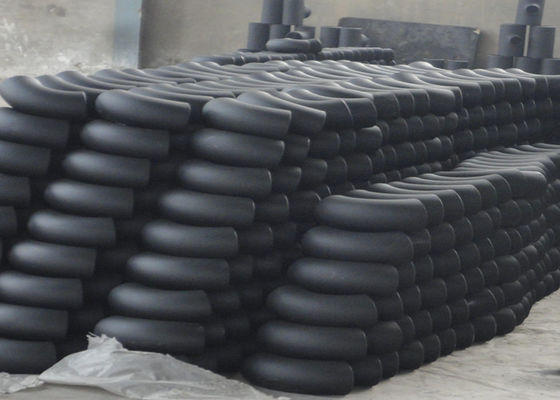

Steel Elbow
Description:The elbow is bent with a complete set of bending equipment, which is divided into two processes: cold simmering and hot pushing.No matter what kind of machine equipment and pipeline, most of the use of elbow, mainly used for oil, gas, infusion, engineering bridge construction.

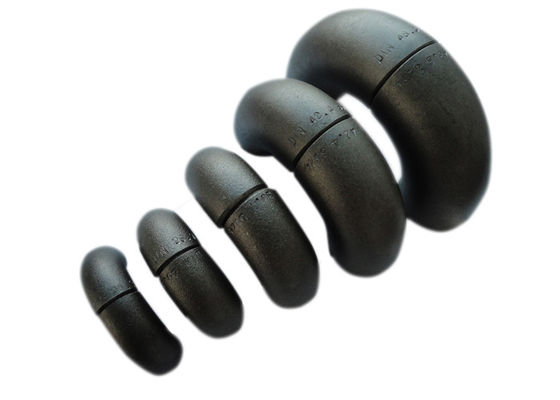

45 Degree/90 Degree/180 Degree Elbow, Long Radius/Short Radius Elbow
• Standards:
ASTM A234 WPB, ASME B16.9,MSS SP-43,DIN 2617,JIS B2313
•Specification
• Process of manufacturing
| Range Of Buttweld [B/W] Fitting | |||||
| Sr. No. | Material | Size | Schedule | Specification | Item |
| 1 | Mild Steel | 15 NB To 500 NB | Sch. 40 to Sch. XXs | A-234 WPB B/W Seamless ANSI B16.9 | Bend (Long & Short) |
| Elbow (180o, 90o & 45o) | |||||
| Tee (Equal & Unequal) | |||||
| Reducer (Con & Ecc) | |||||
| CAP | |||||
| Stubend | |||||
| 200 NB To 600 NB | Sch. 10 To Sch. 80s | A-234 WPW B/W Welded ANSI B16.9 | (Long & Short) | ||
| Nipple (Barrel) | |||||
| 2 | Low Temperature Carbon Steel | 15 NB To 300 NB | Sch. 40 To Sch. XXs | A-420 WPL 6 B/W Seamless ANSI B16.9 | |
| 200 NB To 600 NB | Sch. 10 To Sch. 80s | A-420 WPL 6 B/W Welded ANSI B16.9 |
|||

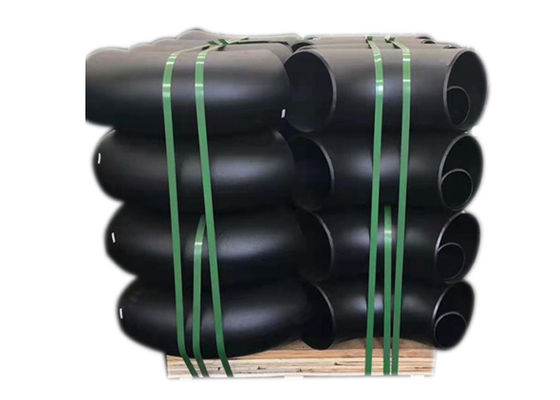

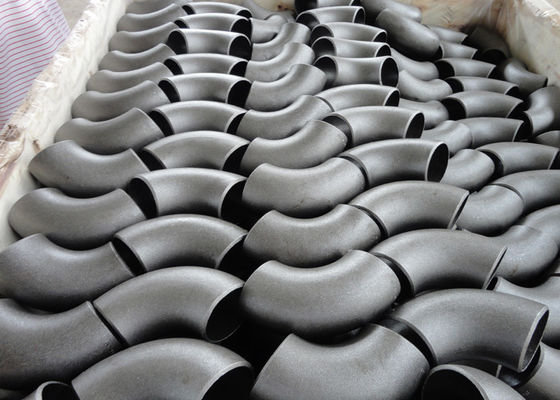

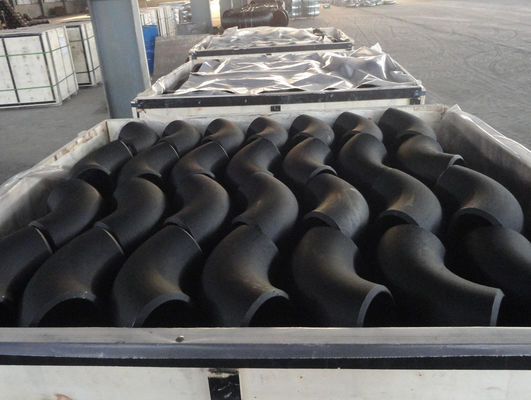

• PACKAGE
Wooden case or wooden pallets or as customer's request.
Contact Person: Miss. Mandy Liu
Tel: 0086 18903173335
Fax: 86-0317-6853077-6723871
