| Product Despriction |
| Product Name |
TYPE1(Plate Flanges); TYPE2(Loose Plate Flanges); TYPE5(Blank Flanges); TYPE11(Weld-neck Flanges); TYPE12(Hubbed Slip-on Flanges For Welding); TYPE13(Hubbed Threaded Flanges) |
| Items |

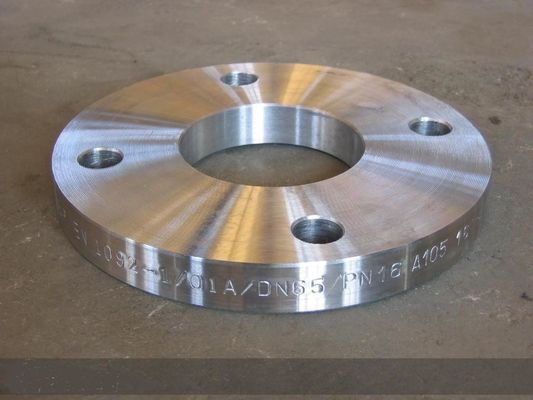

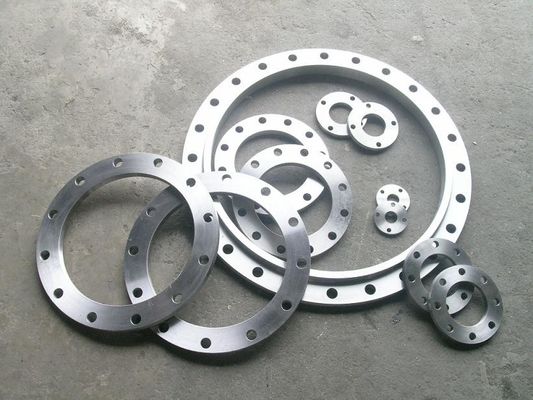

Forged Flanges, EN1092-1 & DIN Forged Flanges |
| Face Finish |
RF,FF,RTJ,TF,GF |
| Standard |
ANSI |
ANSI B16.5 ASME B16.47 series A/B |
| DIN |
DIN 2631 2573 2527 2565 2641 |
| GOST |
GOST 12820-80,GOST 12821-80,Gost Blind |
| EN |
EN1092-1:2002 |
| JIS |
JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210 |
| BS |
BS4504,BS10 Table D/E |
| UNI |
UNI 2253-67,UNI6091-67,UNI2276-67,UNI2280-67,UNI6089-67 |
| SABS |
SABS 1123 |
| |
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 ,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10 |
| Material |
ANSI |
CS A105/SA 105N,SS 304/304L,316/316L |
| DIN |
CS RST37.2;S235JR SS 304/304L,316/316L |
| GOST |
CS CT20;16MN;SS 304/304L,316/316L |
| EN |
CS RST37.2;S235JR;C22.8SS 304/304L,316/316L |
| JIS |
CS SS400,SF440,SS 304/304L, 316/316L |
| BS |
CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L |
| UNI |
CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L |
| SABS |
CSRST37.2;S235JR;Q235;SS 304/304L,316/316L |
| |
Stainless Steel Forged Flanges: ASTM A182 F 304, 304L, 316, 316L
Carbon Steel Forged Flanges: ,S235JRG2,P245GH ,P250GH,A105,SS400,SF440 |
| Pressure |
ANSI |
Class 150, 300, 600, 900, 1500 ,2500 |
| DIN |
PN6,PN10,PN16,PN25,PN40,PN64,PN100 |
| GOST |
PN6,PN10,PN16,PN25 |
| EN |
PN6,PN10,PN16,PN25,PN40,PN64,PN100 |
| JIS |
1K,2K,5K,10K,16K,20K,30K,40K |
| BS |
PN6,PN10,PN16,PN25,PN40,PN64,PN100 |
| UNI |
PN6,PN10,PN16,PN25,PN40 |
| SABS |
600KPA,1000,1600,2500,4000 |
| Size |
ANSI |
1/2” – 60” |
| DIN |
DN15-DN2000 |
| GOST |
DN10-DN1600 |
| EN |
DN15-DN2000 |
| JIS |
15A-1500A |
| BS |
DN15-DN2000 |
| UNI |
DN10-DN2000 |
| SABS |
DN10-DN1200 |
| Coating |
Black Paint, Yellow Paint, Anti-rust oil, Galvanizing etc |
| Usage |
Used for the connection of all kinds of pipeline |
| to convey the water, steam, air, gas and oil |
| Package |
Wooden cases/pallets |
| Delivery |
Within 30 days |
| Certificate |
TUV, ISO9001 |
| Pressure Class |
Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.As per drawing |
| Specialize |
|
