Ansi B16.5 B16.47-A Slip On Weld Neck Thd Lap Joint Blind RF Astm A105N Flange

Ansi B16.5 B16.47-A Slip On Weld Neck Thd Lap Joint Blind RF Astm A105N Flange
Ansi B16.5 B16.47-A Slip On Weld Neck Thd Lap Joint Blind RF Astm A105N Flange Ansi B16.5 B16.47-A Slip On Weld Neck Thd Lap Joint Blind RF Astm A105N Flange Ansi B16.5 B16.47-A Slip On Weld Neck Thd Lap Joint Blind RF Astm A105N Flange Ansi B16.5 B16.47-A Slip On Weld Neck Thd Lap Joint Blind RF Astm A105N Flange

Large Image :  Ansi B16.5 B16.47-A Slip On Weld Neck Thd Lap Joint Blind RF Astm A105N Flange

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO PED
Model Number: 1/2"-80"
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Discussible
Packaging Details: PLYWOODEN CASE
Delivery Time: 4WEEKS
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 4000TON PER MONTH

Ansi B16.5 B16.47-A Slip On Weld Neck Thd Lap Joint Blind RF Astm A105N Flange

Description
Material: ASTM A105/A105N,AISI 304/304L,AISI 316/316L Color: Black Paint,Yellow Paint,Anti Rust Oil
Size: 1/2"-80" Standard: ANSI B16.5 ,ANSI B16.47-A,ANSI B16.47-B
Packing: Plywood Case,pallet Kind: SLIP ON,WELD NECK,BLIND,LAP JOINT,THREADED,SOCKET WELDING,AWWA C207-07-CLASS D
High Light:

A105n ansi 150lb flange

,

Slip On Wnrf Ansi Blind Flange

,

1/2" To 80" ansi 1500 flange

Forged steel flange ANSI B16.5 ASME B16.47 ASTM A105

Ansi Flange A105n 150lbs - 2500lbs Slip On Wnrf Blind Lap Joint Threaded Swrf 1/2" - 80"


STANDARD



Type

Pressure

Material size

Process

Surface

treatment



ANSI B16.5, ASME16.47



SORF

WNRF

BLIND

SWRF

LJFF

150LBS,300LBS,

400LBS,600LB

900LBS,1500LBS,2500LBS

carbon steel

stainless steel



1/2"---60"

FORGED, FORGING

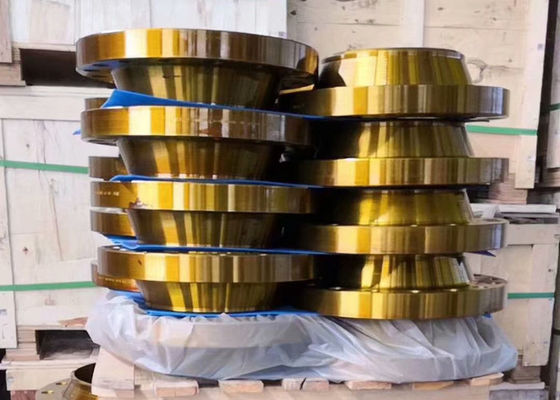

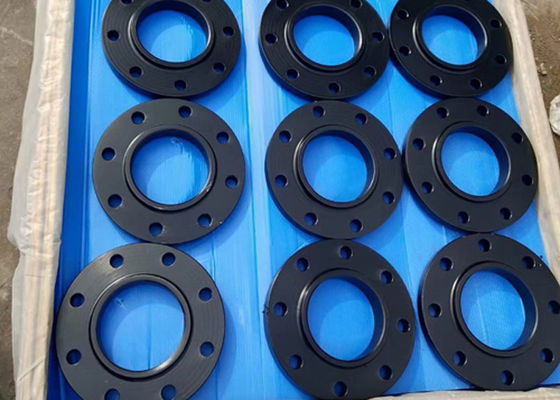

Black paint

Yellow paint

Light oil

Ansi B16.5 B16.47-A Slip On Weld Neck Thd Lap Joint Blind RF Astm A105N Flange 0







ANSI B16.5 Specification

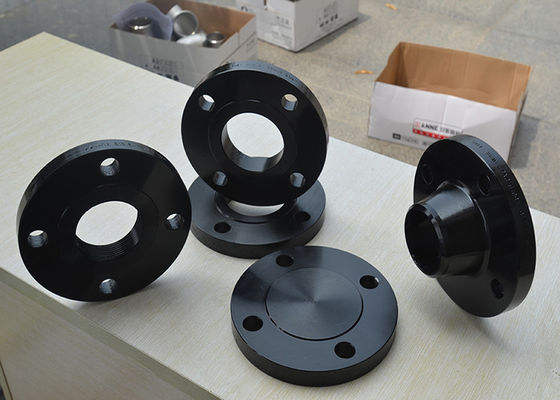

Flange type: welding neck; slip on; blind; lap joint; threaded; socket welding;

Size range: 1/2" to 24"

Pressure: class 150; 300; 400; 600; 900; 1500; 2500

Wall thicnkess: SCH5,SCH10,SCH20,SCH30,XS ,SCH40, SCH80,SCH160,SCH XXS

Sealing joint type: FF (flat face) ; RF ( raisd face) ; LJ (lap joint) RTJ (right joint)



ASME B16.47 Specification

Flange type: welding neck ; blind;

Size range: 12" to 80"

Pressure: class 75; 150; 300; 600; 900;

Wall thicnkess: SCH5,SCH10,SCH20,SCH30,XS ,SCH40, SCH80,SCH160,SCH XXS

Sealing joint type: FF (flat face) ; RF ( raisd face) ; LJ (lap joint) RTJ (right joint)



Material:
1)Carbon Steel: ASTM A105/A105N ,A350 LF1/LF2,A694 F42/46/48/
52/60/75                                                                                                          2) Stainless Steel:ASTM A182 F304/304L,316/316L,F321,F51,ASTM A182 F11/F12/F22

Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Black paint coating
Surface antirust 3: Yellow paint coating
Surface antirust 4: Galnavized (Hot Dipped Galvanized or Electro Galvanized)

Connect Face:
Surface 1: Stock finish
Surface 2: Sprial serrated
Surface 3: Two or three grooves (Water Lines)
Surface 4: Smooth finish

Terms
1) Payment: Irrevocable L/C at sight or T/T, D/P
2) Delivery term FOB China Port or CIF Buyer’s Port
3) Packing: Plywood Pallet/case

ANSI B16.5 Flanges Dimensions



ASME B16.5 Class 150 Dimensions in MM

ASME B16.5 Class 150 Flange Dimensions



Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
SO Bore ID
(SB)
WN Bore ID
(WB)
Dia. Hub Base
(HB)
Dia. of Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
12 3.50 0.38 1.38 4 0.62 2.38 0.88 0.62 1.19 0.84 0.56 1.81
34 3.88 0.44 1.69 4 0.62 2.75 1.09 0.82 1.50 1.05 0.56 2.00
1 4.25 0.50 2.00 4 0.62 3.12 1.36 1.05 1.94 1.32 0.62 2.12
114 4.62 0.56 2.50 4 0.62 3.50 1.70 1.38 2.31 1.66 0.75 2.19
112 5.00 0.62 2.88 4 0.62 3.88 1.95 1.61 2.56 1.90 0.81 2.38
2 6.00 0.69 3.62 4 0.75 4.75 2.44 2.07 3.06 2.38 0.94 2.44
212 7.00 0.81 4.12 4 0.75 5.50 2.94 2.47 3.56 2.88 1.06 2.69
3 7.50 0.88 5.00 4 0.75 6.00 3.57 3.07 4.25 3.50 1.12 2.69
312 8.50 0.88 5.50 8 0.75 7.00 4.07 3.55 4.81 4.00 1.19 2.75
4 9.00 0.88 6.19 8 0.75 7.50 4.57 4.03 5.31 4.50 1.25 2.94
5 10.00 0.88 7.31 8 0.88 8.50 5.66 5.05 6.44 5.56 1.38 3.44
6 11.00 0.94 8.50 8 0.88 9.50 6.72 6.07 7.56 6.63 1.50 3.44
8 13.50 1.06 10.62 8 0.88 11.75 8.72 7.98 9.69 8.63 1.69 3.94
10 16.00 1.12 12.75 12 1.00 14.25 10.88 10.02 12.00 10.75 1.88 3.94
12 19.00 1.19 15.00 12 1.00 17.00 12.88 12.00 14.38 12.75 2.12 4.44
14 21.00 1.31 16.25 12 1.12 18.75 14.14 13.25 15.75 14.00 2.19 4.94
16 23.50 1.38 18.50 16 1.12 21.25 16.16 15.25 18.00 16.00 2.44 4.94
18 25.00 1.50 21.00 16 1.25 22.75 18.18 17.25 19.88 18.00 2.62 5.44
20 27.50 1.62 23.00 20 1.25 25.00 20.20 19.25 22.00 20.00 2.81 5.62
22 29.50 1.75 25.25 20 1.38 27.25 22.22 21.25 24.25 22.00 3.07 5.82
24 32.00 1.81 27.25 20 1.38 29.50 24.25 23.25 26.12 24.00 3.19 5.94

DIMENSIONS ARE IN INCHES
Bolt hole diameter 1/8" larger than bolt diameter



ANSI B16.5 Class 300 Flange Dimensions, ASME B16.5 Class 300 Flange Dimensions in mm

ASME B16.5 Class 300 Flange Dimensions



Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
SO Bore ID
(SB)
WN Bore ID
(WB)
Dia. Hub Base
(HB)
Dia. Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
12 3.75 0.50 1.38 4 0.63 2.62 0.88 0.62 1.50 0.84 0.81 2.00
34 4.62 0.56 1.69 4 0.75 3.25 1.09 0.82 1.88 1.05 0.94 2.19
1 4.88 0.62 2.00 4 0.75 3.50 1.36 1.05 2.12 1.32 1.00 2.38
114 5.25 0.69 2.50 4 0.75 3.88 1.70 1.38 2.50 1.66 1.00 2.50
112 6.12 0.75 2.88 4 0.88 4.50 1.95 1.61 2.75 1.90 1.13 2.63
2 6.50 0.81 3.62 8 0.75 5.00 2.44 2.07 3.31 2.38 1.25 2.69
212 7.50 0.94 4.12 8 0.88 5.88 2.94 2.47 3.94 2.88 1.44 2.94
3 8.25 1.06 5.00 8 0.88 6.62 3.57 3.07 4.62 3.50 1.63 3.06
312 9.00 1.12 5.50 8 0.88 7.25 4.07 3.55 5.25 4.00 1.69 3.13
4 10.00 1.19 6.19 8 0.88 7.88 4.57 4.03 5.75 4.50 1.82 3.32
5 11.00 1.31 7.31 8 0.88 9.25 5.66 5.05 7.00 5.56 1.94 3.82
6 12.50 1.38 8.50 12 0.88 10.62 6.72 6.07 8.12 6.63 2.00 3.82
8 15.00 1.56 10.62 12 1.00 13.00 8.72 7.98 10.25 8.63 2.38 4.32
10 17.50 1.81 12.75 16 1.12 15.25 10.88 10.02 12.62 10.75 2.56 4.56
12 20.50 1.94 15.00 16 1.25 17.75 12.88 12.00 14.75 12.75 2.82 5.06
14 23.00 2.06 16.25 20 1.25 20.25 14.14 13.25 16.75 14.00 2.94 5.56
16 25.50 2.19 18.50 20 1.38 22.50 16.16 15.25 19.00 16.00 3.19 5.69
18 28.00 2.31 21.00 24 1.38 24.75 18.18 17.25 21.00 18.00 3.44 6.19
20 30.50 2.44 23.12 24 1.38 27.00 20.20 19.25 23.12 20.00 3.69 6.32
22 33.00 2.57 25.25 24 1.63 29.25 22.22 21.25 25.25 22.00 3.93 6.43
24 36.00 2.69 27.62 24 1.63 32.00 24.25 23.25 27.62 24.00 4.13 6.56

* For flanges type 21 the outside hub diameter approximately corresponds to the outside pipe diameter.
Note : The p/t rating from ASME B16.5 apply only for flange type 05, 11, 12, 13 and 21 having nominal sizes up to and including DN 600. The p/t rating of all other flanges shall be agreed between the manufacturer and the purchaser.



ANSI B16.5 Class 400 Flange Dimensions

ANSI B16.5 Class 400 Flange Dimensions



Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
SO Bore ID
(SB)
Dia. Hub Base
(HB)
Dia. Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
* WN Bore ID
(WB)
12 3.75 0.56 1.38 4 0.63 2.62 0.88 1.5 0.84 0.88 2.06 *
34 4.62 0.62 1.69 4 0.75 3.25 1.09 1.88 1.05 1.00 2.25 *
1 4.88 0.69 2.00 4 0.75 3.50 1.36 2.12 1.32 1.06 2.44 *
114 5.25 0.81 2.50 4 0.75 3.88 1.70 2.50 1.66 1.12 2.62 *
112 6.12 0.88 2.88 4 0.88 4.50 1.95 2.75 1.90 1.25 2.75 *
2 6.50 1.00 3.62 8 0.75 5.00 2.44 3.31 2.38 1.44 2.88 *
212 7.50 1.12 4.12 8 0.88 5.88 2.94 3.94 2.88 1.62 3.12 *
3 8.25 1.25 5.00 8 0.88 6.62 3.57 4.62 3.50 1.81 3.25 *
312 9.00 1.38 5.50 8 1.00 7.25 4.07 5.25 4.00 1.94 3.38 *
4 10.00 1.38 6.19 8 1.00 7.88 4.57 5.75 4.50 2.00 3.50 *
5 11.00 1.50 7.31 8 1.00 9.25 5.66 7.00 5.56 2.12 4.00 *
6 12.50 1.62 8.50 12 1.00 10.62 6.72 8.12 6.63 2.25 4.06 *
8 15.00 1.88 10.62 12 1.12 13.00 8.72 10.25 8.63 2.69 4.62 *
10 17.50 2.12 12.75 16 1.25 15.25 10.88 12.62 10.75 2.88 4.88 *
12 20.50 2.25 15.00 16 1.38 17.75 12.88 14.75 12.75 3.12 5.38 *
14 23.00 2.38 16.25 20 1.38 20.25 14.14 16.75 14.00 3.31 5.88 *
16 25.50 2.50 18.50 20 1.50 22.50 16.16 19.00 16.00 3.69 6.00 *
18 28.00 2.62 21.00 24 1.50 24.75 18.18 21.00 18.00 3.88 6.50 *
20 30.50 2.75 23.12 24 1.62 27.00 20.20 23.12 20.00 4.00 6.62 *
22 33.00 2.88 25.25 24 1.75 29.25 22.22 25.25 22.00 4.25 6.75 *
24 36.00 3.00 27.25 24 1.88 32.00 24.25 27.62 24.00 4.50 6.88 *

Bolt hole diameter 1/8" larger than bolt diameter



ANSI B16.5 Class 600 Flange Dimensions, ASME B16.5 Class 600 Blind Flange Dimensions

ANSI B16.5 Class 600 Flange Dimensions



Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
SO Bore ID
(SB)
Dia. Hub Base
(HB)
Dia. Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
* WN Bore ID
(WB)
12 3.75 0.56 1.38 4 0.63 2.62 0.88 1.50 0.84 0.88 2.06 *
34 4.62 0.62 1.69 4 0.75 3.25 1.09 1.88 1.05 1.00 2.25 *
1 4.88 0.69 2.00 4 0.75 3.50 1.36 2.12 1.32 1.06 2.44 *
114 5.25 0.81 2.50 4 0.75 3.88 1.70 2.50 1.66 1.12 2.62 *
112 6.12 0.88 2.88 4 0.88 4.50 1.95 2.75 1.90 1.25 2.75 *
2 6.50 1.00 3.62 8 0.75 5.00 2.44 3.31 2.38 1.44 2.88 *
212 7.50 1.12 4.12 8 0.88 5.88 2.94 3.94 2.88 1.62 3.12 *
3 8.25 1.25 5.00 8 0.88 6.62 3.57 4.62 3.50 1.81 3.25 *
312 9.00 1.38 5.50 8 1.00 7.25 4.07 5.25 4.00 1.94 3.38 *
4 10.75 1.50 6.19 8 1.00 8.50 4.57 6.00 4.50 2.12 4.00 *
5 13.00 1.75 7.31 8 1.12 10.50 5.66 7.44 5.56 2.38 4.50 *
6 14.00 1.88 8.50 12 1.12 11.50 6.72 8.75 6.63 2.62 4.62 *
8 16.50 2.19 10.62 12 1.25 13.75 8.72 10.75 8.63 3.00 5.25 *
10 20.00 2.50 12.75 16 1.38 17.00 10.88 13.50 10.75 3.38 6.00 *
12 22.00 2.62 15.00 20 1.38 19.25 12.88 15.75 12.75 3.62 6.12 *
14 23.75 2.75 16.25 20 1.50 20.75 14.14 17.00 14.00 3.69 6.50 *
16 27.00 3.00 18.50 20 1.63 23.75 16.16 19.50 16.00 4.19 7.00 *
18 29.25 3.25 21.00 20 1.75 25.75 18.18 21.50 18.00 4.62 7.25 *
20 32.00 3.50 23.00 24 1.75 28.50 20.20 24.00 20.00 5.00 7.50 *
22 34.25 3.75 25.25 24 1.88 30.63 22.22 26.25 22.00 5.25 7.75 *
24 37.00 4.00 27.25 24 2.00 33.00 24.25 28.25 24.00 5.50 8.00 *



ANSI B16.5 Class 900 Flange Dimenisons

ANSI B16.5 Class 900 Flange Dimensions



Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
SO Bore ID
(SB)
* WN Bore ID
(WB)
Dia. Hub Base
(HB)
Dia. Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
3 9.50 1.50 5.00 8 1.00 7.50 3.57 * 5.00 3.50 2.12 4.00
4 11.50 1.75 6.19 8 1.25 9.25 4.57 * 6.25 4.50 2.75 4.50
5 13.75 2.00 7.31 8 1.38 11.00 5.66 * 7.50 5.56 3.12 5.00
6 15.00 2.19 8.50 12 1.25 12.50 6.72 * 9.25 6.63 3.38 5.50
8 18.50 2.50 10.63 12 1.50 15.50 8.72 * 11.75 8.63 4.00 6.38
10 21.50 2.75 12.75 16 1.50 18.50 10.88 * 14.50 10.75 4.25 7.25
12 24.00 3.12 15.00 20 1.50 21.00 12.88 * 16.50 12.75 4.63 7.88
14 25.25 3.38 16.25 20 1.63 22.00 14.14 * 17.75 14.00 5.12 8.38
16 27.75 3.50 18.50 20 1.75 24.25 16.16 * 20.00 16.00 5.25 8.50
18 31.00 4.00 21.00 20 2.00 27.00 18.18 * 22.25 18.00 6.00 9.00
20 33.75 4.25 23.00 20 2.13 29.50 20.20 * 24.50 20.00 6.25 9.75
24 41.00 5.50 27.25 20 2.63 35.50 24.25 * 29.50 24.00 8.00 11.50





ANSI B16.5 Class 1500 Flange Dimenisons

ANSI B16.5 Class 1500 Flange Dimensions



Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
So Bore ID
(SB)
Dia. Hub Base
(HB)
Dia. Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
* WN Bore ID
(WB)
12 4.75 0.88 1.38 4 0.88 3.25 0.88 1.50 0.84 1.25 2.38 *
34 5.12 1.00 1.69 4 0.88 3.50 1.09 1.75 1.05 1.38 2.75 *
1 5.88 1.12 2.00 4 1.00 4.00 1.36 2.06 1.32 1.62 2.88 *
114 6.25 1.12 2.50 4 1.00 4.38 1.70 2.50 1.66 1.62 2.88 *
112 7.00 1.25 2.88 4 1.12 4.88 1.95 2.75 1.90 1.75 3.25 *
2 8.50 1.50 3.63 8 1.00 6.50 2.44 4.12 2.38 2.25 4.00 *
212 9.62 1.62 4.13 8 1.12 7.50 2.94 4.88 2.88 2.50 4.12 *
3 10.50 1.88 5.00 8 1.25 8.00 - 5.25 3.50 - 4.62 *
4 12.25 2.12 6.19 8 1.38 9.50 - 6.38 4.50 - 4.88 *
5 14.75 2.88 7.31 8 1.63 11.50 - 7.75 5.56 - 6.12 *
6 15.50 3.25 8.50 12 1.50 12.50 - 9.00 6.63 - 6.75 *
8 19.00 3.62 10.63 12 1.75 15.50 - 11.50 8.63 - 8.38 *
10 23.00 4.25 12.75 12 2.00 19.00 - 14.50 10.75 - 10.00 *
12 26.50 4.88 15.00 16 2.12 22.50 - 17.75 12.75 - 11.12 *
14 29.50 5.25 16.25 16 2.38 25.00 - 19.50 14.00 - 11.75 *
16 32.50 5.75 18.50 16 2.63 27.75 - 21.75 16.00 - 12.25 *
18 36.00 6.38 21.00 16 2.88 30.50 - 23.50 18.00 - 12.88 *
20 38.75 7.00 23.00 16 3.12 32.75 - 25.25 20.00 - 14.00 *
24 46.00 8.00 27.25 16 3.63 39.00 - 30.00 24.00 - 16.00 *



ASME B16.5 Class 2500 Flange Dimenisons

ANSI B16.5 Class 2500 Flange Dimensions



Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
Dia. Hub Base
(HB)
Dia. Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
* WN Bore ID
(WB)
12 5.25 1.19 1.38 4 0.88 3.50 1.69 0.84 1.56 2.88 *
34 5.50 1.25 1.69 4 0.88 3.75 2.00 1.05 1.69 3.12 *
1 6.25 1.38 2.00 4 1.00 4.25 2.25 1.32 1.88 3.50 *
114 7.25 1.50 2.50 4 1.12 5.13 2.88 1.66 2.06 3.75 *
112 8.00 1.75 2.88 4 1.25 5.75 3.12 1.90 2.38 4.38 *
2 9.25 2.00 3.63 8 1.12 6.75 3.75 2.38 2.75 5.00 *
212 10.50 2.25 4.13 8 1.25 7.75 4.50 2.88 3.12 5.62 *
3 12.00 2.62 5.00 8 1.38 9.00 5.25 3.50 - 6.62 *
4 14.00 3.00 6.19 8 1.63 10.75 6.50 4.50 - 7.50 *
5 16.50 3.62 7.31 8 1.88 12.75 8.00 5.56 - 9.00 *
6 19.00 4.25 8.50 8 2.12 14.50 9.25 6.63 - 10.75 *
8 21.75 5.00 10.63 12 2.12 17.25 12.00 8.63 - 12.50 *
10 26.50 6.50 12.75 12 2.63 21.25 14.75 10.75 - 16.50 *
12 30.00 7.25 15.00 12 2.88 24.38 17.38 12.75 - 18.25 *

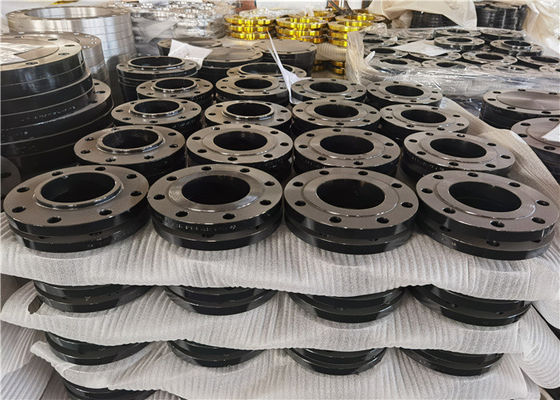

Ansi B16.5 B16.47-A Slip On Weld Neck Thd Lap Joint Blind RF Astm A105N Flange 8Ansi B16.5 B16.47-A Slip On Weld Neck Thd Lap Joint Blind RF Astm A105N Flange 9

1. who are we?
We are based in Hebei, China, start from 1986,sell flange and pipe fitting sold around the world.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Forged Flange, Fitting,Forged Fitting, Seamless Pipe.

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Arabic,French

Contact information:

EMAIL:info11@hbxfgj.com

TEL:+86-317-6016755 FAX:+86-317-6853755

Mob/Wechat/WhatsApp:0086-18031772026

Skype:angela.766437

QQ: 1608691724





Contact Details
Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd.

Contact Person: Miss. Mandy Liu

Tel: 0086 18903173335

Fax: 86-0317-6853077-6723871

Send your inquiry directly to us (0 / 3000)

Other Products
