26'' To 110'' Butt Weld Pipe Fittings 90Deg Elbow Short Black Elbow Sch40 Sch80

26'' To 110'' Butt Weld Pipe Fittings 90Deg Elbow Short Black Elbow Sch40 Sch80
26'' To 110'' Butt Weld Pipe Fittings 90Deg Elbow Short Black Elbow Sch40 Sch80 26'' To 110'' Butt Weld Pipe Fittings 90Deg Elbow Short Black Elbow Sch40 Sch80 26'' To 110'' Butt Weld Pipe Fittings 90Deg Elbow Short Black Elbow Sch40 Sch80 26'' To 110'' Butt Weld Pipe Fittings 90Deg Elbow Short Black Elbow Sch40 Sch80 26'' To 110'' Butt Weld Pipe Fittings 90Deg Elbow Short Black Elbow Sch40 Sch80

Large Image :  26'' To 110'' Butt Weld Pipe Fittings 90Deg Elbow Short Black Elbow Sch40 Sch80

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO,PED,,ADW2000,CE
Model Number: 1/2"-72"
Payment & Shipping Terms:
Minimum Order Quantity: 1TON
Price: NEGOCIATION
Packaging Details: PLY WOODEN CASES,PALLET ,Or as cusomers request
Delivery Time: 10DAYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 10000TONS PER MONTH

26'' To 110'' Butt Weld Pipe Fittings 90Deg Elbow Short Black Elbow Sch40 Sch80

Description
Material: WPB A234,ASTM/ASME A403 WP 304-304L 3016-316L Size: 1/2"-72"
Paintting: Shot Blasted, Rust-proof Black Oil ,balck Color Package: PLAY WOODEN CASES,PALLET ,Or As Cusomers Request
End: Bevel End/BE/buttweld Surface: Nature Color, Varnished, Black Painting, Anti-rust Oil Etc.
High Light:

XF 110'' Butt Weld elbow sch 80

,

XF Short Black Elbow Sch40 Sch80

,

304L Pipe Fittings 90DEG ELBOW

Butt Weld Pipe Fittings/90 Deg. Elbow/Short,Black elbow sch40 sch80

Definition and Details of Butt Weld Fittings

Elbows 45° - 90° - 180° LR/SR

The function of a elbow is to change direction or flow in a piping system. By default, there are 5 opportunities, the 45°, 90° and 180° elbows, all three in the "long radius" version, and in addition the 90° and 180° elbows both in the "short radius" version.

Long and Short Radius

Elbows are split into two groups which define the distance over which they change direction; the center line of one end to the opposite face. This is known as the "center to face" distance and is equivalent to the radius through which the elbow is bent.
The center to face distance for a "long" radius elbow, abbreviated LR always is "1½ x Nominal Pipe Size (NPS) (1½D)", while the center to face distance for a "short" radius elbow, abbreviated SR even is to nominal pipe size.



Specification List

Porduct Name Carbon Steel 90 Degree Elbow
Size 1/2"-36" seamless, 26"-110" welded
Standard ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, MSS SP 75, etc.
Wall thickness STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
Radius

LR/long radius/R=1.5D,SR/Shrot radius/R=1D, Various radius:2.5D,3D,5D

10D, 20D etc.

End Bevel end/BE/buttweld
Surface nature color, varnished, black painting, anti-rust oil etc.
Material

Carbon steel: A234WPB, A420WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,

P235GH, P265GH, P280GH,P295GH,P355GH etc.

Pipeline steel: WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc.
Cr-Mo alloy steel: P11,P22,P5, P9,P91, 10CrMo9-10, 16Mo3 etc.
Application

Petrochemical industy;avation and aerospace industry;pharmaceutical industry;

gas exhaust;power plant;ship buliding;water treament,etc.

Advantages ready stock,faster delivery time;available in all sizes,austomized;high quality

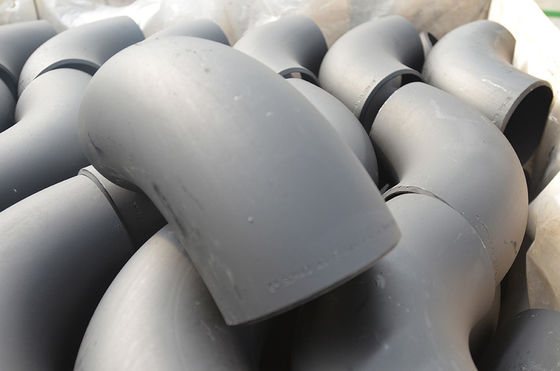

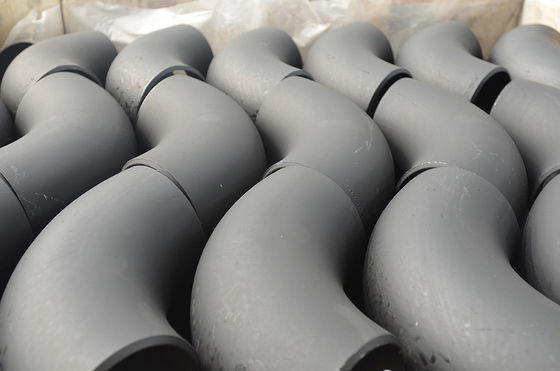

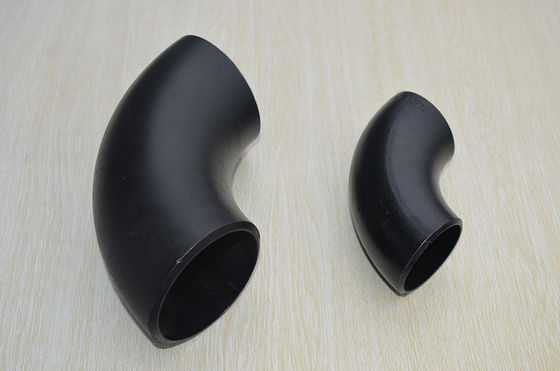

Product Photo






Quality Control

We has the process design, fabrication, welding, heat treatment, chemical cleaning and product testing and inspection abilities.

Carbon Steel 90 degree Elbow quality control

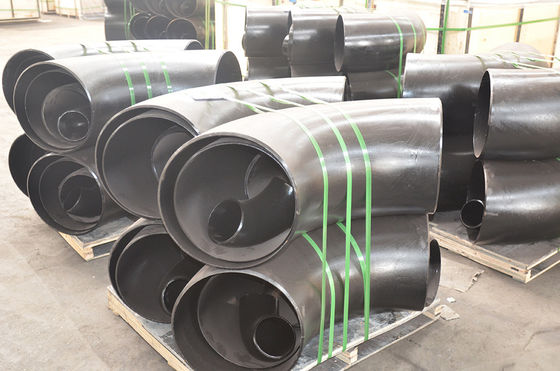

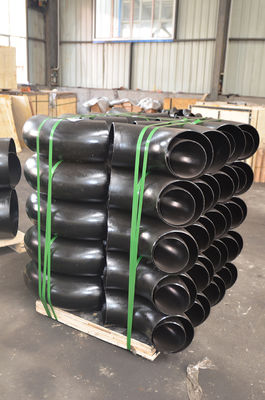

Packing Method



1. Any inquiries will be replied within 24 hours.

2. Professional team.

3. High quality, standard designs, reasonable & competitive price, fast lead time.

4. Faster delivery: Sample will be prepared in 2-3 days.

5. Shipping we have strong cooperation with DHL, TNT, UPS, China Shipping, etc.

6. You can also choose your own shipping forwarder.




Shipping Way



As per customer's request.

Usually by Sea, by Air, by Train or River-and-Sea Coordinated Transport.
