Product Details:
|
| Material: | Carbon Steel And Stainless Steel | Collor: | Light Oil |
|---|---|---|---|
| Pressure: | PN06,PN10,PN16, PN25,PN40,PN64, PN100, | TYPE: | Steel Plane Welded Flanges |
| Type: | SO,BLIND,WN | E-mail: | Info4@hbxfgj.com |
| High Light: | raised face flange to flat face flange,flat face weld neck flange,raised face to flat face flange adapter |
||

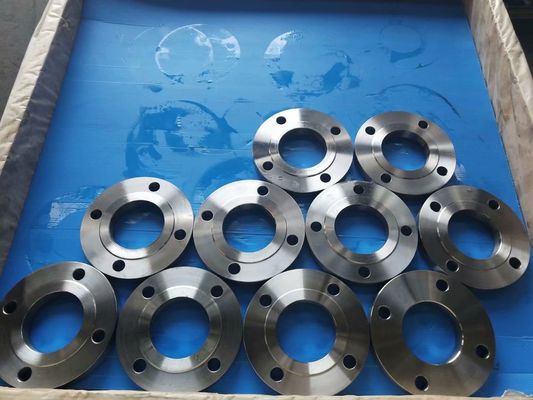

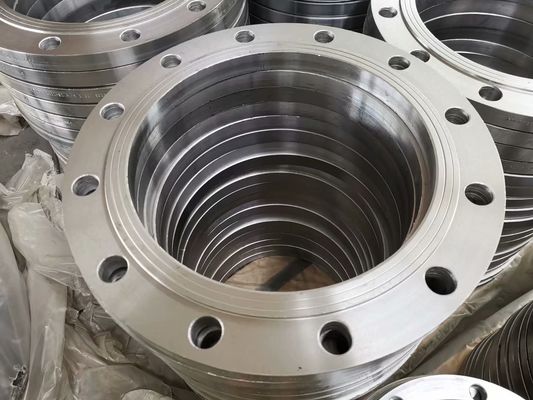

STEEL FLANGE Фланцы ГОСТ 33259-2015 тип 01, плоские, cт. 20 TYPE01,TYPE 02,TYPE 05 ГОСТ 12820 ГОСТ 12821
|
STANDARD
|
Type |
Pressure |
Material | size |
Process |
Surface treatment |
|
ГОСТ33259 ГОСТ12820 ГОСТ12821
|
SO,BLIND,WN
|
PN06,PN10,PN16, PN25,PN40,PN64, PN100, |
carbon steel stainless steel |
DN15-DN3000 |
FORGED, FORGING |
Light oil |
PLATE FLANGE,BLIND FLANGE,WELDING NECK FLANGE
ГОСТ 12820 ,ГОСТ12821,ГОСТ12822,,ГОСТ12836-80
PN06-PN160
ГОСТ 12820 PN06-PN25
Стандартные размеры фланцев (условный диаметр):
Ду15, Ду20, Ду25, Ду32, Ду40, Ду50, Ду65, Ду80, Ду100, Ду125, Ду150, Ду200, Ду250, Ду300, Ду350, Ду400, Ду450, Ду500, Ду600, Ду700, Ду800, Ду1000, Ду1200
| Nomencatlure | Dimensions, mm | Weight, Kg | |||||||
| D | D1 | D2 | d1 | b | h | n, | d | ||
| Pnom = 0,6 MPa (6 kgf/cm2) | |||||||||
| 1-10-6 | 75 | 50 | 35 | 15 | 10 | 2 | 4 | 11 | 0.31 |
| 1-15-6 | 80 | 55 | 40 | 19 | 10 | 2 | 4 | 11 | 0.33 |
| 1-20-6 | 90 | 65 | 50 | 26 | 12 | 2 | 4 | 11 | 0.53 |
| 1-25-6 | 100 | 75 | 60 | 33 | 12 | 2 | 4 | 11 | 0.64 |
| 1-32-6 | 120 | 90 | 70 | 39 | 13 | 2 | 4 | 14 | 1.01 |
| 1-40-6 | 130 | 100 | 80 | 46 | 13 | 3 | 4 | 14 | 1.21 |
| 1-50-6 | 140 | 110 | 90 | 59 | 13 | 3 | 4 | 14 | 1.33 |
| 1-65-6 | 160 | 130 | 110 | 78 | 13 | 3 | 4 | 14 | 1.63 |
| 1-80-6 | 185 | 150 | 128 | 91 | 15 | 3 | 4 | 18 | 2.44 |
| 1-100-6 | 205 | 170 | 148 | 110 | 15 | 3 | 4 | 18 | 2.85 |
| 1-125-6 | 235 | 200 | 178 | 135 | 17 | 3 | 8 | 18 | 3.88 |
| 1-150-6 | 260 | 225 | 202 | 161 | 17 | 3 | 8 | 18 | 4.39 |
| 1-175-6 | 290 | 255 | 232 | 196 | 19 | 3 | 8 | 18 | 5.36 |
| 1-200-6 | 315 | 280 | 258 | 222 | 19 | 3 | 8 | 18 | 5.89 |
| 1-225-6 | 340 | 305 | 282 | 245 | 19 | 3 | 8 | 18 | 6.6 |
| 1-250-6 | 370 | 335 | 312 | 273 | 20 | 3 | 12 | 18 | 7.67 |
| 1-300-6 | 435 | 395 | 365 | 325 | 20 | 4 | 12 | 22 | 10.28 |
| 1-350-6 | 485 | 445 | 415 | 377 | 22 | 4 | 12 | 22 | 12.58 |
| 1-400-6 | 535 | 495 | 465 | 426 | 24 | 4 | 16 | 22 | 15.2 |
| 1-450-6 | 590 | 550 | 520 | 480 | 24 | 4 | 16 | 22 | 17.25 |
| 1-500-6 | 640 | 600 | 570 | 530 | 25 | 4 | 16 | 22 | 19.72 |
| 1-600-6 | 755 | 705 | 670 | 630 | 25 | 5 | 20 | 26 | 26.24 |
| 1-700-6 | 860 | 810 | 775 | 720 | 27 | 5 | 24 | 26 | 36.68 |
| 1-800-6 | 975 | 920 | 880 | 820 | 27 | 5 | 24 | 30 | 46.14 |
| 1-900-6 | 1075 | 1020 | 980 | 920 | 29 | 5 | 24 | 30 | 55.1 |
| 1-1000-6 | 1175 | 1120 | 1080 | 1020 | 31 | 5 | 28 | 30 | 64.36 |
| 1-1200-6 | 1400 | 1340 | 1295 | 1220 | 34 | 5 | 32 | 33 | 99.03 |
| Nomencatlure | Dimensions, mm | Weight, Kg | |||||||
| D | D1 | D2 | d1 | b | h | n, | d | ||
| Pnom = 1,0 MPa (10 kgf/cm2) | |||||||||
| 1-10-10 | 90 | 60 | 42 | 15 | 10 | 2 | 4 | 14 | 0.46 |
| 1-15-10 | 95 | 65 | 47 | 19 | 10 | 2 | 4 | 14 | 0.51 |
| 1-20-10 | 105 | 75 | 58 | 26 | 12 | 2 | 4 | 14 | 0.74 |
| 1-25-10 | 115 | 85 | 68 | 33 | 12 | 2 | 4 | 14 | 0.89 |
| 1-32-10 | 135 | 100 | 78 | 39 | 14 | 2 | 4 | 18 | 1.4 |
| 1-40-10 | 145 | 110 | 88 | 46 | 15 | 3 | 4 | 18 | 1.71 |
| 1-50-10 | 160 | 125 | 102 | 59 | 15 | 3 | 4 | 18 | 2.06 |
| 1-65-10 | 180 | 145 | 122 | 78 | 17 | 3 | 4 | 18 | 2.8 |
| 1-80-10 | 195 | 160 | 133 | 91 | 17 | 3 | 4 | 18 | 3.19 |
| 1-100-10 | 215 | 180 | 158 | 110 | 19 | 3 | 8 | 18 | 3.96 |
| 1-125-10 | 245 | 210 | 184 | 135 | 21 | 3 | 8 | 18 | 5.4 |
| 1-150-10 | 280 | 240 | 212 | 161 | 21 | 3 | 8 | 22 | 6.62 |
| 1-175-10 | 310 | 270 | 242 | 196 | 21 | 3 | 8 | 22 | 7.32 |
| 1-200-10 | 335 | 295 | 268 | 222 | 21 | 3 | 8 | 22 | 8.05 |
| 1-225-10 | 365 | 325 | 295 | 245 | 21 | 3 | 8 | 22 | 9.3 |
| 1-250-10 | 390 | 350 | 320 | 273 | 23 | 3 | 12 | 22 | 10.65 |
| 1-300-10 | 440 | 400 | 370 | 325 | 24 | 4 | 12 | 22 | 12.9 |
| 1-350-10 | 500 | 460 | 430 | 377 | 24 | 4 | 16 | 22 | 15.85 |
| 1-400-10 | 565 | 515 | 482 | 426 | 26 | 4 | 16 | 26 | 21.56 |
| 1-450-10 | 615 | 565 | 532 | 480 | 26 | 4 | 20 | 26 | 22.76 |
| 1-500-10 | 670 | 620 | 585 | 530 | 28 | 4 | 20 | 26 | 27.7 |
| 1-600-10 | 780 | 725 | 685 | 630 | 31 | 5 | 20 | 30 | 39.4 |
| 1-700-10 | 895 | 840 | 800 | 720 | 34 | 5 | 24 | 30 | 59.46 |
| 1-800-10 | 1010 | 950 | 905 | 820 | 37 | 5 | 24 | 33 | 79.16 |
| 1-900-10 | 1110 | 1050 | 1005 | 920 | 40 | 5 | 28 | 33 | 94.13 |
| 1-1000-10 | 1220 | 1160 | 1110 | 1020 | 43 | 5 | 28 | 33 | 118.43 |
| 1-1200-10 | 1455 | 1380 | 1330 | 1222 | 51 | 5 | 32 | 39 | 197.44 |
| 1-1400-10 | 1675 | 1590 | 1530 | 1420 | 60 | 5 | 36 | 45 | 278.92 |
| Nomencatlure | Dimensions, mm | Weight, Kg | |||||||
| D | D1 | D2 | d1 | b | h | n, Number of holes | d | ||
| Pnom = 1,6 MPa (16 kgf/cm2) | |||||||||
| 1-10-16 | 90 | 60 | 42 | 15 | 12 | 2 | 4 | 14 | 0.54 |
| 1-15-16 | 95 | 65 | 47 | 19 | 12 | 2 | 4 | 14 | 0.61 |
| 1-20-16 | 105 | 75 | 58 | 26 | 14 | 2 | 4 | 14 | 0.86 |
| 1-25-16 | 115 | 85 | 68 | 33 | 16 | 2 | 4 | 14 | 1.17 |
| 1-32-16 | 135 | 100 | 78 | 39 | 16 | 2 | 4 | 18 | 1.58 |
| 1-40-16 | 145 | 110 | 88 | 46 | 17 | 3 | 4 | 18 | 1.96 |
| 1-50-16 | 160 | 125 | 102 | 59 | 19 | 3 | 4 | 18 | 2.58 |
| 1-65-16 | 180 | 145 | 122 | 78 | 21 | 3 | 4 | 18 | 3.42 |
| 1-80-16 | 195 | 160 | 133 | 91 | 21 | 3 | 4 | 18 | 3.71 |
| 1-100-16 | 215 | 180 | 158 | 110 | 23 | 3 | 8 | 18 | 4.73 |
| 1-125-16 | 245 | 210 | 184 | 135 | 25 | 3 | 8 | 18 | 6.38 |
| 1-150-16 | 280 | 240 | 212 | 161 | 25 | 3 | 8 | 22 | 7.81 |
| 1-175-16 | 310 | 270 | 242 | 196 | 25 | 3 | 8 | 22 | 8.64 |
| 1-200-16 | 335 | 295 | 268 | 222 | 27 | 3 | 12 | 22 | 10.1 |
| 1-225-16 | 365 | 325 | 295 | 245 | 27 | 3 | 12 | 22 | 11.7 |
| 1-250-16 | 405 | 355 | 320 | 273 | 28 | 3 | 12 | 26 | 14.49 |
| 1-300-16 | 460 | 410 | 370 | 325 | 28 | 4 | 12 | 26 | 17.78 |
| 1-350-16 | 520 | 470 | 430 | 377 | 30 | 4 | 16 | 26 | 22.88 |
| 1-400-16 | 580 | 525 | 482 | 426 | 34 | 4 | 16 | 30 | 31 |
| 1-450-16 | 640 | 585 | 532 | 480 | 38 | 4 | 20 | 30 | 39.64 |
| 1-500-16 | 710 | 650 | 585 | 530 | 44 | 4 | 20 | 33 | 57.01 |
| 1-600-16 | 840 | 770 | 685 | 630 | 45 | 5 | 20 | 39 | 80.03 |
| 1-700-16 | 910 | 840 | 800 | 720 | 47 | 5 | 24 | 39 | 84.21 |
| 1-800-16 | 1020 | 950 | 905 | 820 | 49 | 5 | 24 | 39 | 104.41 |
| 1-900-16 | 1120 | 1050 | 1005 | 920 | 54 | 5 | 28 | 39 | 128.6 |
| 1-1000-16 | 1255 | 1170 | 1110 | 1020 | 58 | 5 | 28 | 45 | 179.37 |
| 1-1200-16 | 1485 | 1390 | 1330 | 1220 | 71 | 5 | 32 | 52 | 297.78 |
| Nomencatlure | Dimensions, mm | Weight, Kg | |||||||
| D | D1 | D2 | d1 | b | h | n, Number of holes | d | ||
| Pnom = 2,5 MPa (25 kgf/cm2) | |||||||||
| 1-10-25 | 90 | 60 | 42 | 15 | 14 | 2 | 4 | 14 | 0.63 |
| 1-15-25 | 95 | 65 | 47 | 19 | 14 | 2 | 4 | 14 | 0.7 |
| 1-20-25 | 105 | 75 | 58 | 26 | 16 | 2 | 4 | 14 | 0.98 |
| 1-25-25 | 115 | 85 | 68 | 33 | 16 | 2 | 4 | 14 | 1.17 |
| 1-32-25 | 135 | 100 | 78 | 39 | 18 | 2 | 4 | 18 | 1.77 |
| 1-40-25 | 145 | 110 | 88 | 46 | 19 | 3 | 4 | 18 | 2.18 |
| 1-50-25 | 160 | 125 | 102 | 59 | 21 | 3 | 4 | 18 | 2.71 |
| 1-65-25 | 180 | 145 | 122 | 78 | 21 | 3 | 8 | 18 | 3.22 |
| 1-80-25 | 195 | 160 | 133 | 91 | 23 | 3 | 8 | 18 | 4.06 |
| 1-100-25 | 230 | 190 | 158 | 110 | 25 | 3 | 8 | 22 | 5.92 |
| 1-125-25 | 270 | 220 | 184 | 135 | 27 | 3 | 8 | 26 | 8.26 |
| 1-150-25 | 300 | 250 | 212 | 161 | 27 | 3 | 8 | 26 | 10.12 |
| 1-175-25 | 330 | 280 | 242 | 196 | 29 | 3 | 12 | 26 | 11.49 |
| 1-200-25 | 360 | 310 | 278 | 222 | 29 | 3 | 12 | 26 | 13.34 |
| 1-225-25 | 395 | 340 | 305 | 245 | 31 | 3 | 12 | 30 | 16.93 |
| 1-250-25 | 425 | 370 | 335 | 273 | 31 | 3 | 12 | 30 | 18.9 |
| 1-300-25 | 485 | 430 | 390 | 325 | 32 | 4 | 16 | 30 | 23.95 |
| 1-350-25 | 550 | 490 | 450 | 377 | 38 | 4 | 16 | 33 | 34.35 |
| 1-400-25 | 610 | 550 | 505 | 426 | 40 | 4 | 16 | 33 | 44.62 |
| 1-450-25 | 660 | 600 | 555 | 480 | 44 | 4 | 20 | 33 | 51.8 |
| 1-500-25 | 730 | 660 | 615 | 530 | 48 | 4 | 20 | 39 | 67.3 |
| 1-600-25 | 840 | 770 | 720 | 630 | 49 | 5 | 20 | 39 | 90.87 |
| 1-700-25 | 960 | 875 | 820 | 720 | 55 | 5 | 24 | 45 | 126.82 |
| 1-800-25 | 1075 | 990 | 930 | 820 | 63 | 5 | 24 | 45 | 181.43 |
Material
1) Carbon Steel Q234 CT20 20# Ст 20 ,Ст 09Г2С
Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Galnavized (Hot Dipped Galvanized or Electro Galvanized)
Connect Face (ГОСТ 12815 ) :

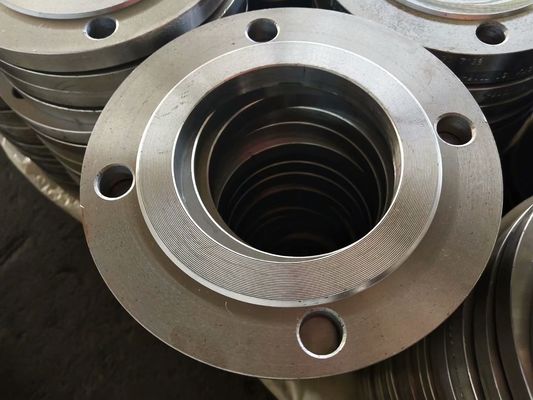

Surface 1: Smooth finish
Surface 2: Sprial serrated
Surface 3: Two or three grooves (Water Lines)
(Raised face=RF ,Flat face=FF)
Фланцы стальные плоские приварные трубопроводов и соединительных частей, а так же на присоединительные фланцы арматуры, соединительных частей машин, приборов, патрубков аппаратов и резервуаров на номинальное давление PN от 1 до 25 кгс/см2; номинальный диаметр DN от 10 до 250 мм, типы фланцев - 01, 02, 11, размерный ряд – 1 / 2, исполнение уплотнительной поверхности - А, В, С, L, D, M, E, F, J, K, сталь – углеродистая, легированная конструкционная, коррозионно-стойкая, группы контроля - I, II, III, IV, изготавливаются в соответствии с требованиями ГОСТ 33259-2015 "Фланцы арматуры, соединительных частей и трубопроводов на номинальное давление до PN 250. Конструкция, размеры и общие технические требования».
Terms:
1) Payment: Irrevocable L/C at sight or T/T, D/P
2) Delivery term FOB China Port or CIF Buyer’s Port
3) Packing: Plywood Pallet/case
Contact:
Sales Manager: Grace Zhang
HEBEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO.,LTD.
Add.: Mencun County,Cangzhou City,Hebei province,China 061400
Mobile:86 18031772015 (wechat, whatsapp)
Tel: 86-317-6725755
Email: info4@hbxfgj.com
Skype: cangzhouzhangnan
FAQ:
1. What is your MOQ?
Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 150m - 200m.
3. What is your delivery time?
We wil deliver in 30-45 days
4. Can you accept mixed products in one container?
Yes, we accept for sure.
