Stainless Steel Flange ASME B16.47 ANSI B16.5 BS10 WN SLIP ON BLIND SS304 SS316

Stainless Steel Flange ASME B16.47 ANSI B16.5 BS10 WN SLIP ON BLIND SS304 SS316
Stainless Steel Flange ASME B16.47 ANSI B16.5 BS10 WN SLIP ON BLIND SS304 SS316 Stainless Steel Flange ASME B16.47 ANSI B16.5 BS10 WN SLIP ON BLIND SS304 SS316 Stainless Steel Flange ASME B16.47 ANSI B16.5 BS10 WN SLIP ON BLIND SS304 SS316 Stainless Steel Flange ASME B16.47 ANSI B16.5 BS10 WN SLIP ON BLIND SS304 SS316 Stainless Steel Flange ASME B16.47 ANSI B16.5 BS10 WN SLIP ON BLIND SS304 SS316

Large Image :  Stainless Steel Flange ASME B16.47 ANSI B16.5 BS10 WN SLIP ON BLIND SS304 SS316

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO,PED,,ADW2000,CE
Model Number: 1/2"-72"
Payment & Shipping Terms:
Minimum Order Quantity: 1TON
Price: NEGOCIATION
Packaging Details: PLAY WOODEN CASES,PALLET ,Or as cusomers request
Delivery Time: 10DAYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 10000TONS PER MONTH

Stainless Steel Flange ASME B16.47 ANSI B16.5 BS10 WN SLIP ON BLIND SS304 SS316

Description
Size: 1/2"-72" Material: ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Standard: JIS B2220,DIN, ANSI B16.5, BS4504 Package: Ply Wooden Cases,pallet
High Light:

Stainless Steel Flange ASME B16.47

,

SS316 flange wn ansi 150

,

BLIND SS304 BS10 Flanges

Description

Stainless steel 304L flanges will be packed by individual protective sleeve and packing box for export or as customer's request, customer can arrange the shipping forwarder by themselves if you want to establish a long term business with China factory for stainless steel 304L flanges, contact us.

Stainless Steel Flange ASME B16.47 ANSI B16.5 BS10 WN SLIP ON BLIND SS304 SS316 0



CLASS Nominal Pipe Size Slip On Threaded Socket Weld Lap Joint Blind Weld Neck
150 lb ½ 1 1 2 1 2 2
  ¾ 2 2 2 2 2 2
  1 2 2 2 2 2 3
  3 3 3 3 3 3
  3 3 3 3 4 4
  2 5 5 5 5 5 6
  8 8 8 8 7 10
  3 9 9 9 9 9 11.5
  11 12 11 11 13 12
  4 13 13 13 13 17 16.5
  5 15 15 15 15 20 21
  6 19 19 19 19 27 26
  8 30 30 30 30 47 42
  10 43 43 43 43 70 54
  12 64 64 64 64 123 88
  14 90 90 90 105 140 114
  16 106 98 98 140 180 140
  18 130 130 130 160 220 165
  20 165 165 165 195 285 197
  22 185 185 185 245 355 225
  24 220 220 220 275 430 268
CLASS Nominal Pipe Size Slip On Threaded Socket Weld Lap Joint Blind Weld Neck
300 lb ½ 2 2 3 2 2 2
  ¾ 3 3 3 3 3 3
  1 3 3 3 3 4 4
  4.5 4.5 4 4.5 6 5
  6.5 6.5 6 6.5 7 7
  2 7 7 7 7 8 9
  10 10 10 10 12 12
  3 13 14 13 14.5 16 18
  17 17 17 17 21 20
  4 23.5 24 22 24 28 26.5
  5 29 31 28 28 37 36
  6 39 39 39 39 50 45
  8 58 58 58 58 81 69
  10 81 81 81 91 124 100
  12 115 115 115 140 185 142
  14 165 165 165 190 250 206
  16 210 220 190 234 315 250
  18 253 280 250 305 414 320
  20 315 325 315 375 515 400
  22 370 370 370 435 640 465
  24 490 490 475

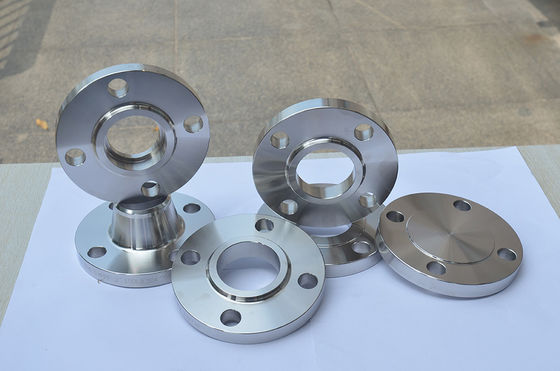

Products Show:

Stainless Steel 304L Flanges are the parts that connect two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected as a group of the combined sealing structure of the detachable connection. The gasket is added between the two flanges and then fastened by bolts.




Workshop:

Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection, usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts can be called "flange type part", but this connection is only part of a device, such as the connection between flange and water pump, it's not inapposite to call water pump as flange type parts, but relative small valve, it can be called as flange type parts.




Quality Assurance:

Regarding product quality, our factory is very professional no matter from testing tools, testing machines, to testing personnel.




Why choose the Stainless Steel 304L Flanges of Yasco:

1. 24 hours online service -- Anytime, anywhere can provide what you want.

2. 100% quality inspection Before Shippment.

3. Reasonable and competitive price.

4. Best production capability, best quality control, best Service.
