JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree

Certification
China Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd. certification
China Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd. certification
I'm Online Chat Now

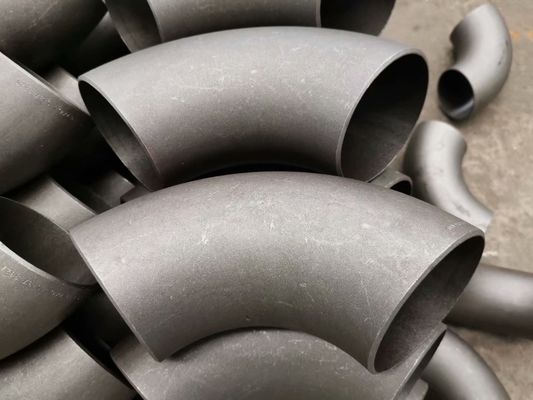

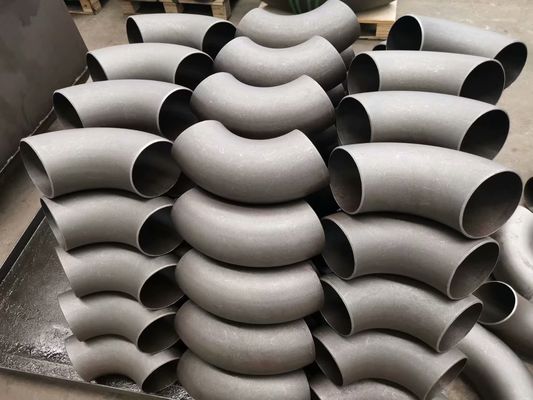

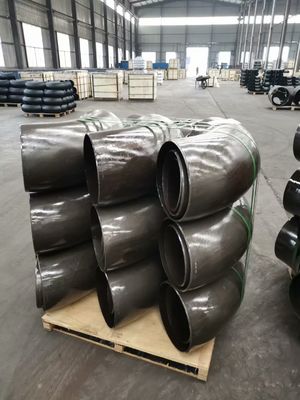

JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree

JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree
JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree

Large Image :  JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO,TUV,CE
Model Number: JIS 2311 SGP
Payment & Shipping Terms:
Minimum Order Quantity: 5 Tons
Packaging Details: plywood case and pallet
Delivery Time: 30-40 days
Payment Terms: L/C,, D/P, T/T
Supply Ability: 3000 tons/month

JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree

Description
Material: Carbon Steel And Stainless Steel Collor: LIGHT OIL
Thickness: SGP Standard: JIS 2311
High Light:

JIS 2311 SGP Carbon Steel Elbow

,

Seamless Welded Pipe Fittings 45 Degree

,

LIGHT OIL 180 Degree Elbow

JIS 2311 SGP CARBON STEEL SEAMLESS AND WELDED PIPE FITTINGS ELBOW TEE REDUCER CAP 90° 45° 180°

FITTINGS Details:

1) Standard: JIS 2311

2) Materials: A234- ST 37 SS400

3) OD: 1/2" - 48".

4) WT:  SGP

5) Surface: Painted with black paint (or varnish), galvanized,Light oil

6) Packaging: wooden case, pallet.

7) Inspection: water pressure test, X-ray inspection

JIS-B2311-B2312-SGP-ELBOW-BEND-DRAWING

45° and 90° SGP elbows dimensions in mm

JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree 0

Nominal OD Center to End 90˚Weight 45 °Weight
(NPS) 90˚(F) 45˚(H) KG/PC KG/PC
A B D Long Shot Long Long Short LONG
15 ½ 21.7 38.1 - 15.8 0.08 0.05 0.04
20 ¾ 27.2 38.1 - 15.8 0.1 0.07 0.05
25 1 34 38.1 25.4 15.8 0.15 0.1 0.08
32 42.7 47.6 31.8 19.7 0.26 0.17 0.13
40 48.6 57.2 38.1 23.7 0.35 0.24 0.18
50 2 60.5 76.2 50.8 31.6 0.64 0.43 0.32
65 76.3 95.3 63.5 39.5 1.12 0.75 0.56
80 3 89.1 114.3 76.2 47.3 1.58 1.05 0.79
90 101.6 133.4 88.9 55.3 2.17 1.45 1.09
100 4 114.3 152.4 101.6 63.1 2.91 1.94 1.46
125 5 139.8 190.5 127 78.9 4.49 2.99 2.25
150 6 165.2 228.6 152.4 94.7 7.09 4.73 3.55
200 8 216.3 304.8 203.2 126.3 14.4 9.61 7.2
250 10 267.4 381 254 157.8 25.4 16.9 12.7
300 12 318.5 457.2 304.8 189.4 38.1 25.4 19.05
350 14 355.6 533.4 355.6 220.9 56.7 37.8 28.35
400 16 406.4 609.6 406.4 252.5 74.3 49.5 37.15
450 18 457.2 685.8 457.2 284.1 94.2 62.8 47.1
500 20 508 762 508 315.6 116 77.7 58
550 22 558.8 838.2 558.8 347.2 141 94.1 70.5
600 24 609.6 914.4 609.6 378.7 168 112 84
650 26 660.4 990.6 660.4 410.3 198 132 99
700 28 711.2 1066.8 711.2 441.9 230 154 115
750 30 762 1143 762 473.4 264 176 132
800 32 812.8 1219.2 812.8 505 301 201 150.5
850 34 863.6 1295.4 863.6 536.6 340 227 170
900 36 914.4 1371.6 914.4 568.1 380 253 190
950 38 965.2 1447.8 965.2 599.7 425 283 212.5
1000 40 1016 1524 1016 631.2 471 314 235.5
1050 42 1066.8 1600.2 1066.8 662.8 518 346 259
1100 44 1117.6 1676.4 1117.6 694.4 570 380 285
1150 46 1168.4 1752.6 1168.4 725.9 623 415 311.5
1200 48 1219.2 1828.8 1219.2 757.5 677 452 338.5

180° SGP elbows Dimensions in mm

Nominal OD C to C End to End 180˚Weight
(NPS) 180˚ (P) 180˚(K) KG/PC
A B D Long Shot Long Shot Long Short
15 ½ 21.7 76.2 - 49 - 0.16 0.1
20 ¾ 27.2 76.2 - 51.7 - 0.2 0.14
25 1 34 76.2 50.8 55.1 42.4 0.3 0.2
32 42.7 95.2 63.6 69 53.2 0.52 0.34
40 48.6 114.4 76.2 81.5 62.4 0.7 0.48
50 2 60.5 152.4 101.6 106.5 81.1 1.28 0.86
65 76.3 190.6 127 133.5 101.7 2.24 1.5
80 3 89.1 228.6 152.4 158.9 120.8 3.16 2.1
90 101.6 266.8 177.8 184.2 139.7 4.34 2.9
100 4 114.3 304.8 203.2 209.6 158.8 5.82 3.88
125 5 139.8 381 254 260.4 196.9 8.98 5.98
150 6 165.2 457.2 304.8 311.2 235 14.18 9.46
200 8 216.3 609.6 406.4 413 311.4 28.8 19.22
250 10 267.4 762 508 514.7 387.7 50.8 33.8
300 12 318.5 914.4 609.6 616.5 464.1 76.2 50.8
350 14 355.6 1066.8 711.2 711.2 533.4 113.4 75.6
400 16 406.4 1219.2 812.8 812.8 609.6 148.6 99
450 18 457.2 - - - - 188.4 125.6
500 20 508 - - - - 232 155.4
550 22 558.8 - - - - 282 188.2
600 24 609.6 - - - - 336 224
650 26 660.4 - - - - 396 264
700 28 711.2 - - - - 460 308
750 30 762 - - - - 528 352
800 32 812.8 - - - - 602 402
850 34 863.6 - - - - 680 454
900 36 914.4 - - - - 760 506
950 38 965.2 - - - - 850 566
1000 40 1016 - - - - 942 628
1050 42 1066.8 - - - - 1036 692
1100 44 1117.6 - - - - 1140 760
1150 46 1168.4 - - - - 1246 830
1200 48 1219.2 - - - - 1354 904




JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree 1 JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree 2 JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree 3

Material
1) Carbon Steel ,S235 & Stainless Steel SS304, SS316, SS316L
Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Black paint coating
Surface antirust 3: Galnavized (Hot Dipped Galvanized or  Electro Galvanized

Terms:
1) Payment: Irrevocable L/C at sight or T/T, D/P
2) Delivery term FOB China Port or CIF Buyer’s Port
3) Packing: Plywood Pallet/case

JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree 4

Contact:

Sales Manager: Grace Zhang

HEBEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO.,LTD.

Add.: Mencun County,Cangzhou City,Hebei province,China 061400

Mobile:86 18031772015 (wechat, whatsapp)

Tel: 86-317-6725755

Email: info4@hbxfgj.com

Skype: cangzhouzhangnan

JIS 2311 SGP Carbon Steel Elbow Seamless Welded Pipe Fittings 45 90 180 Degree 5



FAQ:



1. What is your MOQ?
Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 150m - 200m.
3. What is your delivery time?
We wil deliver in 30-45 days
4. Can you accept mixed products in one container?
Yes, we accept for sure.
