Product Details:
|
| Standard: | JIS B2220,DIN, ANSI B16.5, BS4504 | Size: | 1/2"-60" |
|---|---|---|---|
| Material: | WPB A234,ASTM/ASME A403 WP 304-304L 3016-316L | DIN: | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, |
| Usage: | OIL & GAS | Paintting: | Rust-proof Oil ,black, Yellow |
| Packing: | Ply Wooden Cases,pallets , Or As Customers Request | ||
| High Light: | SS400 Yellow Plate Weld Flange,SOP 5K 10K Plate Weld Flange,25K JIS B2220 72" DIN2573 Flange |
||

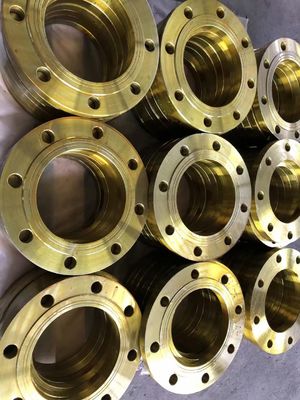

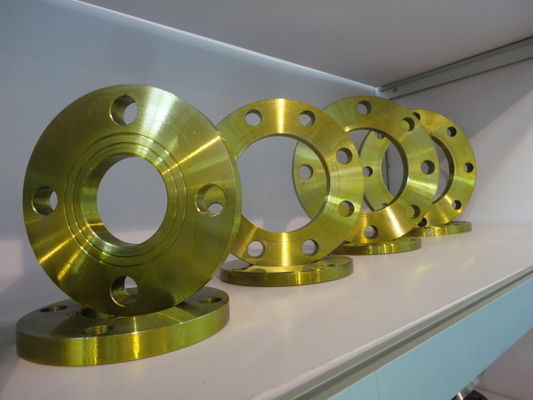

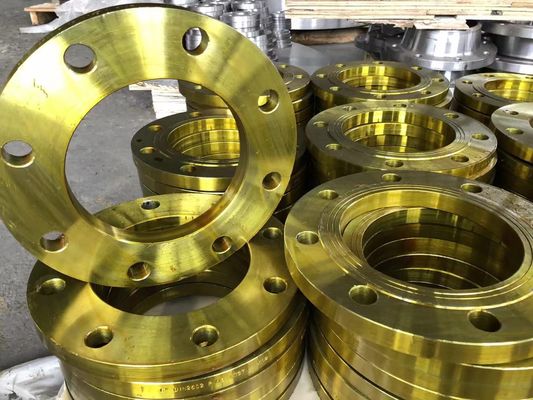

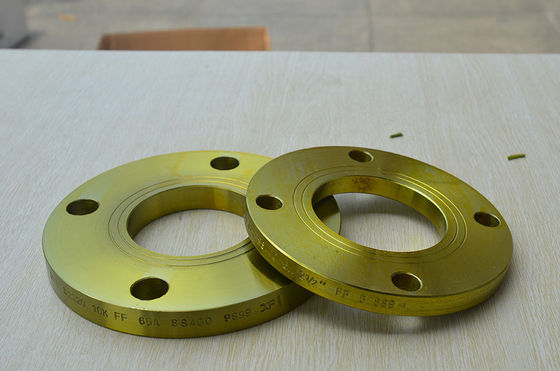

JIS B2220 SOP 5K 10K 25K SS400 Yellow Color Plate Weld Flange
The flat face flange has a gasket surface in the same plane as the bolting circle face. Applications using flat face flanges are frequently those in which the mating flange or flanged fitting is made from a casting.
Flat face flanges are never to be bolted to a raised face flange. ASME B31.1 says that when connecting flat face cast iron flanges to carbon steel flanges, the raised face on the carbon steel flange must be removed, and that a full face gasket is required. This is to keep the thin, bittle cast iron flange from being sprung into the gap caused by the raised face of the carbon steel flange.
Plate flange is different with slip on flange without neck for contact with fitting, it usually include JIS flange and DIN flange, In ANSI, ASME flange system, which have this kind of flange.
“JIS” Stands for Japanese Industrial Standard and are published by the Japanese Standards Association (JSA) which is the equivalent of ANSI in the United States. They are created and updated by the Committee of the Japanese Industrial Standards (JISC). Like JSA to ANSI, the JISC is similar to the American Society of Mechanical Engineers (ASME).
Japan Industrial Standard is yet another option for metric sizes. Provided in JIS5K, JIS10K, JIS15K, and JISK20K pressure classes, we can offer Slip On, Blind, and Weld Neck varieties in Raised Face or Flat Face configurations. These are typically made of 316/L or A105, but as usual, all alloys are available!
Much like DIN / metric flanges, the JIS flange specification offers a slightly wider variety of slip weld configurations for the purposes of space limitations and suitability for existing pipeline equipment. For instance, a customer can request a slip on with or without a hub as standard, or even a ring type flange, and all of this within the same B2220 specification.
JIS flanges are commonly found in exported pressure equipment and pipe assemblies from Japan. Many large ships and sea vessels which travel through international waters and service the Pacific rim will utilize equipment made to this standard, as parts and servicing for this specification are widely available.
| Specification (Latest edition) | Item Type | Pressure Class | Size Range |
| ASME/ANSI B16.5 | Blind, Weld Neck, Slip-on, Socket Weld, Threaded and Lap Joint Flanges | 150 to 2500LBS | 26“ to 60" |
| 150 to 1500LBS | 26“ to 48" | ||
| ASME/ANSI B16.47 | Orifice Flanges ( Weld neck, Slip-on, Threaded) | 75 to 300LBS | 1/2“ to 12" |
| 400, 600LBS | 26“ to 60" | ||
| 900LBS | 26“ to 48" | ||
| ASME/ANSI B16.36 | Orifice Flanges ( Weld neck, Slip-on, Threaded) | 300 To 2500LBS | 1" to 12" |
| EN 1092-1 / DIN / BS 4504 Flanges | 01 (Plate flange), 02 (Loose plate flange for Types 32—37), 04 (Loose plate flange for Type 34),05 (Blind flange), 11 (Weld-neck flange), 12 (Hubbed slip-on flange), 13 (Hubbed | PN2.5 to PN16 | 10mm to 1800mm |
| PN25 | 10mm to 1000mm | ||
| PN40 | 10mm to 600mm | ||
| PN63 | 10mm to 400mm | ||
| PN100 | 10mm to 350mm | ||
| PN160, PN250 | 10mm to 300mm | ||
| PN320 | 10mm to 250mm | ||
| PN400 | 10mm to 200mm | ||
| BS 10 | Blind, Slip-on and Welding neck flanges | TABLE-A, D, E, F, H, J, K, R, S, T | 15mm to 600mm |
| ASME/ANSI B16.9/MSS SP-43 | Stub end -Type:A, B, C (Short pattern) | S10, S40, S80 | ½” to 24” |
