Product Details:
|
| Standard: | ANSI B16.9,EN10253,DIN,JIS | Type: | ELBOW,TEE,REDUCER,CAP |
|---|---|---|---|
| Thickness: | SCH5/10/20/30/STD/40/XS/80/160/XXS | Material: | A234 WPB/P245GH/S235JRG2/ST37-2/P235GH |
| Manufacture: | Seamless And Welded | Export: | Since 1988 |
| Stainless Steel: | A182 F304/304L,A182 F3016/316L | Payment: | 30% Advance Payment,70% Against BL Copy |
| Color: | Black, Rust Proof Oil | Location: | Hebei |
| Using: | Pipe Connection | Usage: | GAS Or Petrolem |
| High Light: | 48" Elbow Pipe Fitting SGP S235JR,B2311 Tee Reducer Cap S235JR,Tee Reducer Cap S235JR ST37-2 |
||

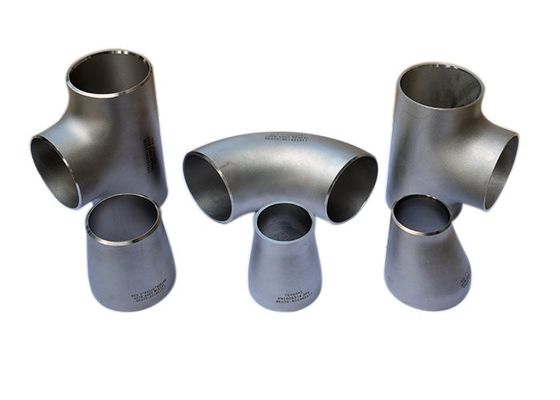

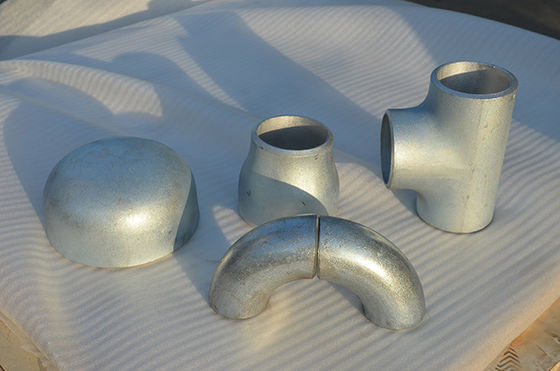

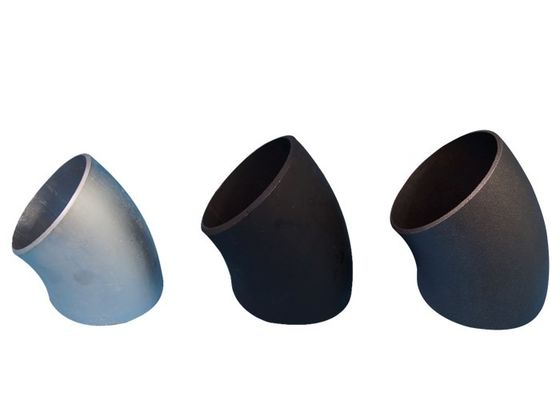

Elbow Pipe Fitting SGP JIS B2311 Tee Reuder Cap S235JR ST37-2
The product range below:
1. Carbon steel pipe fitting
· Kind: Elbow /Tee /Reducer /Cap
· Size: 1/2"-72"
· Material: ASTM A234 WPB
· Thickness: SCH10-SCH160 /STD/XS/XXS
· Standard: ASME B16.9 / B16.28 / B16.25,JIS/DIN/EN10253
2. Stainless steel pipe fitting
· Kind: Elbow /Tee /Reducer /Cap
· Size: 1/2"-72"
· Material: 304/304L,316/316L.
· Thickness: SCH10-SCH160 /STD/XS/XXS
· Standard: ASME B16.9 / B16.28 / B16.25,JIS/DIN/EN10253
JAPANESE STANDARD PIPE FITTING-BUTT WELDING PIPE FITTING JIS B2311 STANDARD:JIS B 2311
PRODUCT:ELBOW LR/SR,45/90/180 DEG; TEE STRAIGHT / REDUCING/CROSS REDUCER CONCENTRIC/ECCENTRIC CAP STUB ENDS SADDLE
WALL THICKNESS: SGP
SIZE: 1/2”-24” SEAMLESS ; 4”-72” SEAM-WELDED
MATERIAL:CARBON STEEL SS400,JIS G3452 STAINLESS STEEL SUS304/304L; SUS316/316L;SUS321
PIPE FITTING DETAIL:
| Products | pipe fittings elbows, bends,tees, reducers caps |
| Size | 1/2" - 48" |
| Wall thickness | Sch5-Sch160 XXS |
| Standard | ANSI, ASME API5L, OCT, DIN and JIS, etc. |
| we can also produce according to drawing and standards provided by customers. | |
| Material | Carbon steel, alloy steel and stainless steel. |
| We can produce according to materials appointed by consumers. | |
| Packaging | Plywood Cases,plywood pallet, plastic bag or as customers requirement |
| Surface Treatment | Shot blasted, rust-proof black oil |
| Delivery Time | 10-60 days |
| Quality | First grade |
| Others | 1.Special design available according to your drawing. |
| 2.anti-corrosion and high-temperature resistant with black painting | |
| 3. All the production process are made under the ISO9001:2000 strictly. | |
| 4. A conformity rate of ex-factory inspection of products. |
JIS Thickness Standard
| SIZE | Outside Diameter | Wall Thickness |
| JIS | SGP | |
| ½" | 21.7 | 2.8 |
| ¾" | 27.2 | 2.8 |
| 1" | 34 | 3.2 |
| 1¼" | 42.7 | 3.5 |
| 1½" | 48.6 | 3.5 |
| 2'' | 60.5 | 3.8 |
| 2½" | 76.3 | 4.2 |
| 3'' | 89.1 | 4.2 |
| 4'' | 114.3 | 4.5 |
| 5" | 139.8 | 4.5 |
| 6" | 165.2 | 5 |
| 8" | 216.3 | 5.8 |
| 10" | 267.4 | 6.6 |
| 12" | 328.9 | 6.9 |
| 14" | 355.6 | 7.9 |
| 16" | 406.4 | 7.9 |
| 18" | 457.2 | 7.9 |
| 20" | 508 | 7.9 |
| 24" | 609.6 |
COMPNAY INTRODUCTION
HEBHEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO., LTD ( XINFENG) was founded in 1988, specializing in the manufacture of forged flanges and pipe fittings.
XINFENG has a group of rich-experienced engineers and technical professionals, making it strong in technical force. Products are manufactured in accordance with international standards such as ANSI,DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. XINFENG has obtained ISO 9002 certificate and follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.
XINFENG was licensed with independent export entitlement in 2006 and now its products are mainly for oversee markets, exported far to South Korea, Russia, countries and regions in middle-east, southeast Asia, south America and west Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.
With a new stance, we hope to tighten our relationships with customers from both abroad and domestics on the purpose of mutual benefit and development for our prosperous future. Warmly welcome customers to us for friendship and business negotiation.
PACKING WAY:
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 7-30days ,if less than 100ton. 40-50days above 100ton.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you want to get more information of the products, send me e-mail or by skype, whatsapp etc.
Q4:How to visit our company?
A: Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
