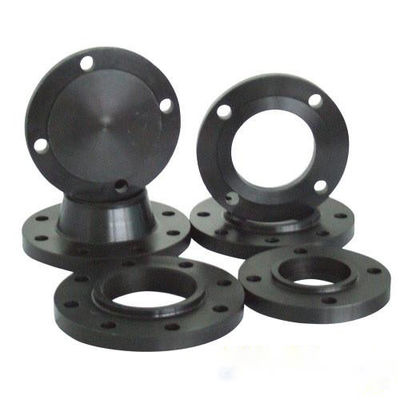

Forged Flange ANSI B16.5 ASME B16.47 ASTM A105 150 LBS 300 LBS Black Painting

Large Image : Forged Flange ANSI B16.5 ASME B16.47 ASTM A105 150 LBS 300 LBS Black Painting

Product Details:

Place of Origin:	CHINA
Brand Name:	XF
Certification:	ISO9001 , PED AND AD2000 W0 ,MTC WITH EN 10204-3.1 Forma
Model Number:	1/2"-72"

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 1-100 One PCS
Packaging Details:	PLYWOODEN AND PALLET
Delivery Time:	15-30DAYS
Payment Terms:	L/C, T/T, D/P, Western Union
Supply Ability:	1500Tons One Month

Contact Now

Forged Flange ANSI B16.5 ASME B16.47 ASTM A105 150 LBS 300 LBS Black Painting

Description

Produce Method:	Forged	Material:	Carbon Steel And Stainless Steel
Size:	1/2"-72"	Pressure:	125lbs ,150lbs, 300lbs ,400lbs, 600lbs ,900lbs ,1500lbs And 2500lbs
Flange Type:	Welding Neck , Slip On , Blind , Socket Welding, Lap Jont And Threaded Flange	Coating:	Black Paint , Yellow Paint , Hot Galvanized , Cold Galvanized And Oil
Surface:	RAISED FACE , FLAT FACE AND RING JOINT	THREADED TYPE:	NPT
Thickness:	STD , SCH10, SCH20, SCH30 ,SCH40, XS,SCH80, SCH100, SCH120 ,SCH160
High Light:	Forged flange ansi b16 5 150 lbs , flange ansi B16.5 300 LBS , Black Painting ASME B16.47

FORGED FLANGE ASME B16.5 &ASME B16.47

Forged Flange ANSI B16.5 &ASME B16.47 ASTM A105 150LBS 300LBS Welding Neck With Black Painting

Material: Carbon Steel ASTM A105/A105N; A694 F42-F70;A-350 LF1/LF2;

Stainless Steel ASTM A182 F304/304L,F316/316L F321 F51

Alloy Steel ASTM A182 F11/F12 /F22

Produce Method: Forged

Flange Type:Welding Neck , Slip On , Blind , Socket Welding, Lap jont and Threaded Flange

Pressure :125lbs ,150lbs, 300lbs ,400lbs, 600lbs ,900lbs ,1500lbs and 2500lbs

Size Range:1/2"-72"

Thickness: SCH10, SCH20, SCH30 ,STD ,SCH40, XS,SCH80, SCH100, SCH120 ,SCH160

Surface :Raised Face(RF), Flat Face(FF), Ring Joint(RTJ)

Threaded Type:NPT and BSP

Marking:XF ASME B16.5/ ASME B16.47 Pressure Material Size RXX Thickness Heat No.

Coating:Black Paint , Yellow Paint , Hot Galvanized , Cold Galvanized and Oil

Certificates:ISO 9001, PED , AD2000 W0 , MTC WITH EN 10204-3.1 Forma

ANSI B16.5 Flanges Dimensions

ASME B16.5 Class 150 Dimensions in MM

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. of Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
1⁄2	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
3⁄4	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
11⁄4	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
11⁄2	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
21⁄2	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
31⁄2	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94

DIMENSIONS ARE IN INCHES
Bolt hole diameter 1/8" larger than bolt diameter

ANSI B16.5 Class 300 Flange Dimensions, ASME B16.5 Class 300 Flange Dimensions in mm

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
1⁄2	3.75	0.50	1.38	4	0.63	2.62	0.88	0.62	1.50	0.84	0.81	2.00
3⁄4	4.62	0.56	1.69	4	0.75	3.25	1.09	0.82	1.88	1.05	0.94	2.19
1	4.88	0.62	2.00	4	0.75	3.50	1.36	1.05	2.12	1.32	1.00	2.38
11⁄4	5.25	0.69	2.50	4	0.75	3.88	1.70	1.38	2.50	1.66	1.00	2.50
11⁄2	6.12	0.75	2.88	4	0.88	4.50	1.95	1.61	2.75	1.90	1.13	2.63
2	6.50	0.81	3.62	8	0.75	5.00	2.44	2.07	3.31	2.38	1.25	2.69
21⁄2	7.50	0.94	4.12	8	0.88	5.88	2.94	2.47	3.94	2.88	1.44	2.94
3	8.25	1.06	5.00	8	0.88	6.62	3.57	3.07	4.62	3.50	1.63	3.06
31⁄2	9.00	1.12	5.50	8	0.88	7.25	4.07	3.55	5.25	4.00	1.69	3.13
4	10.00	1.19	6.19	8	0.88	7.88	4.57	4.03	5.75	4.50	1.82	3.32
5	11.00	1.31	7.31	8	0.88	9.25	5.66	5.05	7.00	5.56	1.94	3.82
6	12.50	1.38	8.50	12	0.88	10.62	6.72	6.07	8.12	6.63	2.00	3.82
8	15.00	1.56	10.62	12	1.00	13.00	8.72	7.98	10.25	8.63	2.38	4.32
10	17.50	1.81	12.75	16	1.12	15.25	10.88	10.02	12.62	10.75	2.56	4.56
12	20.50	1.94	15.00	16	1.25	17.75	12.88	12.00	14.75	12.75	2.82	5.06
14	23.00	2.06	16.25	20	1.25	20.25	14.14	13.25	16.75	14.00	2.94	5.56
16	25.50	2.19	18.50	20	1.38	22.50	16.16	15.25	19.00	16.00	3.19	5.69
18	28.00	2.31	21.00	24	1.38	24.75	18.18	17.25	21.00	18.00	3.44	6.19
20	30.50	2.44	23.12	24	1.38	27.00	20.20	19.25	23.12	20.00	3.69	6.32
22	33.00	2.57	25.25	24	1.63	29.25	22.22	21.25	25.25	22.00	3.93	6.43
24	36.00	2.69	27.62	24	1.63	32.00	24.25	23.25	27.62	24.00	4.13	6.56

* For flanges type 21 the outside hub diameter approximately corresponds to the outside pipe diameter.
Note : The p/t rating from ASME B16.5 apply only for flange type 05, 11, 12, 13 and 21 having nominal sizes up to and including DN 600. The p/t rating of all other flanges shall be agreed between the manufacturer and the purchaser.

ANSI B16.5 Class 400 Flange Dimensions

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	3.75	0.56	1.38	4	0.63	2.62	0.88	1.5	0.84	0.88	2.06	*
3⁄4	4.62	0.62	1.69	4	0.75	3.25	1.09	1.88	1.05	1.00	2.25	*
1	4.88	0.69	2.00	4	0.75	3.50	1.36	2.12	1.32	1.06	2.44	*
11⁄4	5.25	0.81	2.50	4	0.75	3.88	1.70	2.50	1.66	1.12	2.62	*
11⁄2	6.12	0.88	2.88	4	0.88	4.50	1.95	2.75	1.90	1.25	2.75	*
2	6.50	1.00	3.62	8	0.75	5.00	2.44	3.31	2.38	1.44	2.88	*
21⁄2	7.50	1.12	4.12	8	0.88	5.88	2.94	3.94	2.88	1.62	3.12	*
3	8.25	1.25	5.00	8	0.88	6.62	3.57	4.62	3.50	1.81	3.25	*
31⁄2	9.00	1.38	5.50	8	1.00	7.25	4.07	5.25	4.00	1.94	3.38	*
4	10.00	1.38	6.19	8	1.00	7.88	4.57	5.75	4.50	2.00	3.50	*
5	11.00	1.50	7.31	8	1.00	9.25	5.66	7.00	5.56	2.12	4.00	*
6	12.50	1.62	8.50	12	1.00	10.62	6.72	8.12	6.63	2.25	4.06	*
8	15.00	1.88	10.62	12	1.12	13.00	8.72	10.25	8.63	2.69	4.62	*
10	17.50	2.12	12.75	16	1.25	15.25	10.88	12.62	10.75	2.88	4.88	*
12	20.50	2.25	15.00	16	1.38	17.75	12.88	14.75	12.75	3.12	5.38	*
14	23.00	2.38	16.25	20	1.38	20.25	14.14	16.75	14.00	3.31	5.88	*
16	25.50	2.50	18.50	20	1.50	22.50	16.16	19.00	16.00	3.69	6.00	*
18	28.00	2.62	21.00	24	1.50	24.75	18.18	21.00	18.00	3.88	6.50	*
20	30.50	2.75	23.12	24	1.62	27.00	20.20	23.12	20.00	4.00	6.62	*
22	33.00	2.88	25.25	24	1.75	29.25	22.22	25.25	22.00	4.25	6.75	*
24	36.00	3.00	27.25	24	1.88	32.00	24.25	27.62	24.00	4.50	6.88	*

Bolt hole diameter 1/8" larger than bolt diameter

ANSI B16.5 Class 600 Flange Dimensions, ASME B16.5 Class 600 Blind Flange Dimensions

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	3.75	0.56	1.38	4	0.63	2.62	0.88	1.50	0.84	0.88	2.06	*
3⁄4	4.62	0.62	1.69	4	0.75	3.25	1.09	1.88	1.05	1.00	2.25	*
1	4.88	0.69	2.00	4	0.75	3.50	1.36	2.12	1.32	1.06	2.44	*
11⁄4	5.25	0.81	2.50	4	0.75	3.88	1.70	2.50	1.66	1.12	2.62	*
11⁄2	6.12	0.88	2.88	4	0.88	4.50	1.95	2.75	1.90	1.25	2.75	*
2	6.50	1.00	3.62	8	0.75	5.00	2.44	3.31	2.38	1.44	2.88	*
21⁄2	7.50	1.12	4.12	8	0.88	5.88	2.94	3.94	2.88	1.62	3.12	*
3	8.25	1.25	5.00	8	0.88	6.62	3.57	4.62	3.50	1.81	3.25	*
31⁄2	9.00	1.38	5.50	8	1.00	7.25	4.07	5.25	4.00	1.94	3.38	*
4	10.75	1.50	6.19	8	1.00	8.50	4.57	6.00	4.50	2.12	4.00	*
5	13.00	1.75	7.31	8	1.12	10.50	5.66	7.44	5.56	2.38	4.50	*
6	14.00	1.88	8.50	12	1.12	11.50	6.72	8.75	6.63	2.62	4.62	*
8	16.50	2.19	10.62	12	1.25	13.75	8.72	10.75	8.63	3.00	5.25	*
10	20.00	2.50	12.75	16	1.38	17.00	10.88	13.50	10.75	3.38	6.00	*
12	22.00	2.62	15.00	20	1.38	19.25	12.88	15.75	12.75	3.62	6.12	*
14	23.75	2.75	16.25	20	1.50	20.75	14.14	17.00	14.00	3.69	6.50	*
16	27.00	3.00	18.50	20	1.63	23.75	16.16	19.50	16.00	4.19	7.00	*
18	29.25	3.25	21.00	20	1.75	25.75	18.18	21.50	18.00	4.62	7.25	*
20	32.00	3.50	23.00	24	1.75	28.50	20.20	24.00	20.00	5.00	7.50	*
22	34.25	3.75	25.25	24	1.88	30.63	22.22	26.25	22.00	5.25	7.75	*
24	37.00	4.00	27.25	24	2.00	33.00	24.25	28.25	24.00	5.50	8.00	*

ANSI B16.5 Class 900 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	* WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
3	9.50	1.50	5.00	8	1.00	7.50	3.57	*	5.00	3.50	2.12	4.00
4	11.50	1.75	6.19	8	1.25	9.25	4.57	*	6.25	4.50	2.75	4.50
5	13.75	2.00	7.31	8	1.38	11.00	5.66	*	7.50	5.56	3.12	5.00
6	15.00	2.19	8.50	12	1.25	12.50	6.72	*	9.25	6.63	3.38	5.50
8	18.50	2.50	10.63	12	1.50	15.50	8.72	*	11.75	8.63	4.00	6.38
10	21.50	2.75	12.75	16	1.50	18.50	10.88	*	14.50	10.75	4.25	7.25
12	24.00	3.12	15.00	20	1.50	21.00	12.88	*	16.50	12.75	4.63	7.88
14	25.25	3.38	16.25	20	1.63	22.00	14.14	*	17.75	14.00	5.12	8.38
16	27.75	3.50	18.50	20	1.75	24.25	16.16	*	20.00	16.00	5.25	8.50
18	31.00	4.00	21.00	20	2.00	27.00	18.18	*	22.25	18.00	6.00	9.00
20	33.75	4.25	23.00	20	2.13	29.50	20.20	*	24.50	20.00	6.25	9.75
24	41.00	5.50	27.25	20	2.63	35.50	24.25	*	29.50	24.00	8.00	11.50

ANSI B16.5 Class 1500 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	So Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	4.75	0.88	1.38	4	0.88	3.25	0.88	1.50	0.84	1.25	2.38	*
3⁄4	5.12	1.00	1.69	4	0.88	3.50	1.09	1.75	1.05	1.38	2.75	*
1	5.88	1.12	2.00	4	1.00	4.00	1.36	2.06	1.32	1.62	2.88	*
11⁄4	6.25	1.12	2.50	4	1.00	4.38	1.70	2.50	1.66	1.62	2.88	*
11⁄2	7.00	1.25	2.88	4	1.12	4.88	1.95	2.75	1.90	1.75	3.25	*
2	8.50	1.50	3.63	8	1.00	6.50	2.44	4.12	2.38	2.25	4.00	*
21⁄2	9.62	1.62	4.13	8	1.12	7.50	2.94	4.88	2.88	2.50	4.12	*
3	10.50	1.88	5.00	8	1.25	8.00	-	5.25	3.50	-	4.62	*
4	12.25	2.12	6.19	8	1.38	9.50	-	6.38	4.50	-	4.88	*
5	14.75	2.88	7.31	8	1.63	11.50	-	7.75	5.56	-	6.12	*
6	15.50	3.25	8.50	12	1.50	12.50	-	9.00	6.63	-	6.75	*
8	19.00	3.62	10.63	12	1.75	15.50	-	11.50	8.63	-	8.38	*
10	23.00	4.25	12.75	12	2.00	19.00	-	14.50	10.75	-	10.00	*
12	26.50	4.88	15.00	16	2.12	22.50	-	17.75	12.75	-	11.12	*
14	29.50	5.25	16.25	16	2.38	25.00	-	19.50	14.00	-	11.75	*
16	32.50	5.75	18.50	16	2.63	27.75	-	21.75	16.00	-	12.25	*
18	36.00	6.38	21.00	16	2.88	30.50	-	23.50	18.00	-	12.88	*
20	38.75	7.00	23.00	16	3.12	32.75	-	25.25	20.00	-	14.00	*
24	46.00	8.00	27.25	16	3.63	39.00	-	30.00	24.00	-	16.00	*

ASME B16.5 Class 2500 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	5.25	1.19	1.38	4	0.88	3.50	1.69	0.84	1.56	2.88	*
3⁄4	5.50	1.25	1.69	4	0.88	3.75	2.00	1.05	1.69	3.12	*
1	6.25	1.38	2.00	4	1.00	4.25	2.25	1.32	1.88	3.50	*
11⁄4	7.25	1.50	2.50	4	1.12	5.13	2.88	1.66	2.06	3.75	*
11⁄2	8.00	1.75	2.88	4	1.25	5.75	3.12	1.90	2.38	4.38	*
2	9.25	2.00	3.63	8	1.12	6.75	3.75	2.38	2.75	5.00	*
21⁄2	10.50	2.25	4.13	8	1.25	7.75	4.50	2.88	3.12	5.62	*
3	12.00	2.62	5.00	8	1.38	9.00	5.25	3.50	-	6.62	*
4	14.00	3.00	6.19	8	1.63	10.75	6.50	4.50	-	7.50	*
5	16.50	3.62	7.31	8	1.88	12.75	8.00	5.56	-	9.00	*
6	19.00	4.25	8.50	8	2.12	14.50	9.25	6.63	-	10.75	*
8	21.75	5.00	10.63	12	2.12	17.25	12.00	8.63	-	12.50	*
10	26.50	6.50	12.75	12	2.63	21.25	14.75	10.75	-	16.50	*
12	30.00	7.25	15.00	12	2.88	24.38	17.38	12.75	-	18.25	*

Forged Flange ANSI B16.5 ASME B16.47 ASTM A105 150 LBS 300 LBS Black Painting 7

Contact:

Sales Manager: Annie

HEBEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO.,LTD.

Add.: Mencun County,Cangzhou City,Hebei province,China 061400

Mobile:86 18031772012 (wechat, whatsapp)

Tel: 86-317-6016612

Email: info3@hbxfgj.com

Skype: annie1989723

QQ:532326446

FAQ:

1. What is your MOQ?
Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 150m - 200m.
3. What is your delivery time?
We will deliver in 30-35days
4. Can you accept mixed products in one container?
Yes, we accept for sure.

Tag:

Carbon Steel ANSI B16.5 Flange,

ANSI B16.5 B16.47 SORF FLANGE,

FLANGE Wnrf 150lbs 300lbs 316l

Contact Details

Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd.

Contact Person: Miss. Mandy Liu

Tel: 0086 18903173335

Fax: 86-0317-6853077-6723871

Other Products

16" Ansi B16 5 Weld Neck Flange 150 Black Paint Coating

Customization: OEM, ODM

size: 1/ 2", 3/ 4", 1", 11/ 4", 11/ 2", 2", 21/ 2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18",

Coating: BLACK PAINT

Connection Type: WELDING

Carbon Steel Forged Schedule 40 Pipe Flange Asme B16.5 12"

Coating: BLACK PAINT

Pressure Rating: CLASS150-CLASS2500，Class 150, Class 300,Class 400, Class 600, Class 900, Class 1500 ,Class 2500

Face Type: RF,RTJ.Black Paint, Yellow Paint,transparent Paint, Cold And Hot Dip Galvanize

Technics: Forged

Alloy Steel Sch 40 Flange Asme B16.47 Ser B Coated With Black Paint

Face Type: RF,RTJ.Black Paint, Yellow Paint,transparent Paint, Cold And Hot Dip Galvanize

Material: Carbon Steel, A105,A105N,ASTM A350 LF2，Stainless Steel, Alloy Steel

size: 1/ 2", 3/ 4", 1", 11/ 4", 11/ 2", 2", 21/ 2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18",

Connection Type: WELDING

3/4" Asme B16.5 Carbon Steel Weld Neck Flange Std Thickness Oem Customization

Connection Type: WELDING

thickness: STD, SCH40, SCH80, SCH160. SCHXXS

Pressure Rating: CLASS150-CLASS2500，Class 150, Class 300,Class 400, Class 600, Class 900, Class 1500 ,Class 2500

Face Type: RF,RTJ.Black Paint, Yellow Paint,transparent Paint, Cold And Hot Dip Galvanize

Astm A350 Lf2 Stainless Steel Cast Flange Ansi B16.5 Asme B16.47

Connection Type: WELDING

size: 1/ 2", 3/ 4", 1", 11/ 4", 11/ 2", 2", 21/ 2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18",

Technics: Forged

Material: Carbon Steel, A105,A105N,ASTM A350 LF2，Stainless Steel, Alloy Steel

Forged Flange ANSI B16.5 ASME B16.47 ASTM A105 150 LBS 300 LBS Black Painting

Forged Flange ANSI B16.5 ASME B16.47 ASTM A105 150 LBS 300 LBS Black Painting

Forged Flange ANSI B16.5 ASME B16.47 ASTM A105 150 LBS 300 LBS Black Painting

Forged flange ansi b16 5 150 lbs

flange ansi B16.5 300 LBS

Black Painting ASME B16.47

ANSI B16.5 Flanges Dimensions

ASME B16.5 Class 150 Dimensions in MM

ANSI B16.5 Class 300 Flange Dimensions, ASME B16.5 Class 300 Flange Dimensions in mm

ANSI B16.5 Class 400 Flange Dimensions

ANSI B16.5 Class 600 Flange Dimensions, ASME B16.5 Class 600 Blind Flange Dimensions

ANSI B16.5 Class 900 Flange Dimenisons

ANSI B16.5 Class 1500 Flange Dimenisons

ASME B16.5 Class 2500 Flange Dimenisons

Carbon Steel ANSI B16.5 Flange,

ANSI B16.5 B16.47 SORF FLANGE,
