Product Details:
|
| Material: | Carbon Steel And Stainless Steel | Standard: | JIS B2220 |
|---|---|---|---|
| Usage: | Connection | Surface: | Black Paint, Rust Proof Oil,yellow Paint |
| Pressure: | 5K/10L/16K/20K | Certificate: | CE ISO TUV |
| Origin: | China | Package: | Plywood Cases And Pallets |
| High Light: | JIS B2220 SO FLANGE 5K 10K,TUV JIS B2220 SO FLANGE,CE Carbon Steel Gavalnized FLANGE |
||

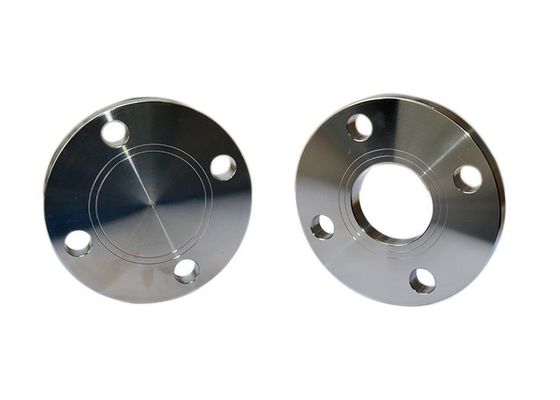

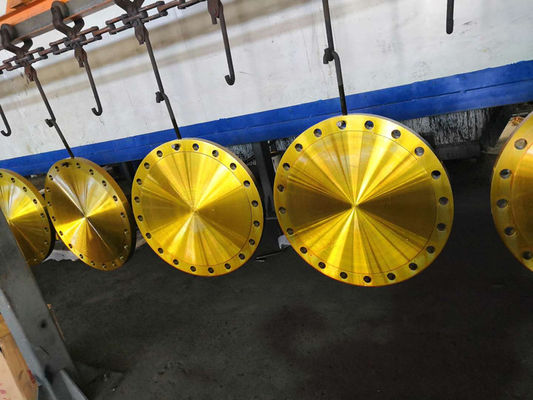

JIS B2220 SO FLANGE 5K/10K Carbon Steel And Stainless Steel painting or gavalnized
HEBHEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO., LTD ( XINFENG) was founded in 1988, specializing in the manufacture of forged flanges and pipe fittings. XINFENG enjoys a pleasant environment and convenient transportation, with Beijing and Tianjin city to the north and the Bohai Sea to the east.
Covering an area of 12000 square meters, equipped with advanced production lines and inspection instruments, Xinfeng now has become one of the biggest flange and pipe manufactures in Hebei Pro., China, Materials available are carbon steel, stainless steel and alloy steel. XINFENG has a group of rich-experienced engineers and technical professionals, making it strong in technical force. ,with an annual capacity of 8000 tons. Its main production equipment includes forging hammers, ring-rolling machine, lathes, drillers, pushing machine, presses, shot blasting machine etc. for the production of flanges, elbows, tees, reducers and caps at different size range. Products are manufactured in accordance with international standards such as ANSI,DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. XINFENG has obtained ISO 9002 certificate and follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.
| JIS 2220 | 5K/10K/16K/20K | SO/BLIND |
| DN15-DN2000 | DN15-DN2000 | DN15-DN2000 |
| SS400 | SS400 | SS400 |
The product range below:
1.Carbon steel pipe fitting
· Kind: Elbow /Tee /Reducer /Cap
· Size: 1/2"-72"
· Material: ASTM A234 WPB
· Thickness: SCH10-SCH160 /STD/XS/XXS
· Standard: ASME B16.9 / B16.28 / B16.25
2.Carbon steel flange (Forged and cast)
· Kind: WN /SO /PL /BL/LJ
· Size: 1/2"-104"
· Material: ASTM A105,SS400,RST37.2,Q235,16Mn,20#,20Mn,S235JR,P245GH,P265GH,P280GH and so on.
· Standard: ASME B,GOST,EN1090-1,DIN,BS4504,AWWA,SABS1123,UNI.
3.Stainless steel pipe fitting
· Kind: Elbow /Tee /Reducer /Cap
· Size: 1/2"-72"
· Material: 304/304L,316/316L.
· Thickness: SCH10-SCH160 /STD/XS/XXS
· Standard: ASME B16.9 / B16.28 / B16.25
4.Stainless steel flange(forged and cast)
· Kind: WN /SO /PL /BL/LJ
· Size: 1/2"-104"
· Material: A182 F304/304L,F316/316L,316Ti,321,317L.
· Standard: ASME B,GOST,EN1090-1,DIN,BS4504,AWWA C207,SABS1123,UNI.
| Despriction |
PRODUCTS
Flanges
Type: Slip on, Weld neck, Binld, Plate, Lap joint, Threadhed, special designed Size: 1/2" - 120" / DN15 - DN3000 Standard: ANSI B16.5; ASME B16.47; EN1092-1; DIN; BS4504; GOST 12820-80 Material: Carbon steel A105; C22.8; S235JR; P245GH; ST37.2; Stalinessl steel: A182 F304/304L; F316/316L; F321
Butt weld Elbow; Tee; Reducer; Cap
Size: 1/2" -24" seamless; 4" -80" seam welded Standard: ASME B16.9; B16.28; DIN; EN10253; GOST17375; JIS Material; carbon steel; stainless steel
Forged fittings ASME B16.11
Product: Elbow; Tee;Cross; Coupling; Cap; Plug; Bushing; Union; Weldolet Pressure: 2000#;3000#;6000#;9000#; Size: 1/8" to 4"
Connection: threadhed and socket weld Material: carbon steel and stainless steel |
|
| Product |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
