Product Details:
|
FLANGE SIZE: | 4"-84" | THE PRESSURE: | CLASS B ,CLASS D |
---|---|---|---|
TYPE: | SLIP ON ,BLIND | MATERIAL: | Q235.A105.ST37.2.S235JR |
PAYMENT: | T/T.L/C.D/P | PAINTING: | BLACK PAINT ,RUST PROOF OIL ,YELLOW PAINT |
PACKAGE: | PLYWOOD CASES .PALLETS | ||
High Light: | A105 Q235 4 Inch Pipe Flange,AWWA C207-07 Class B Flange,AWWA 84 Inch Class D Flange |
AWWA C207-07 CLASSB and CLASS D A105 / Q235 RINGS&BLINDS 4"-84" FLANGE
Specification:
STANDARD:AWWA C207-07
SIZE:4"-84"
PRESSURE:CLASS B,CLASS D

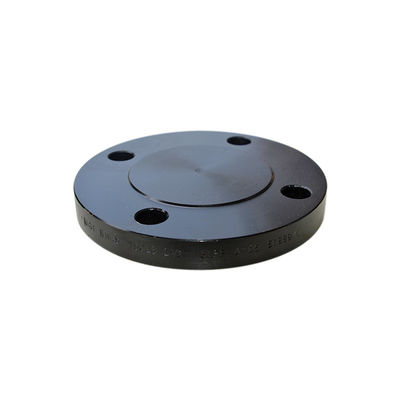

TYPE:SLIP ON , BLIND FLANGE
MATERAIL: A105,Q235.S235JR,ST37.2
COATING:RUST-PROOF OIL,YELLOW PAINT
MIN ORDER :5TONS

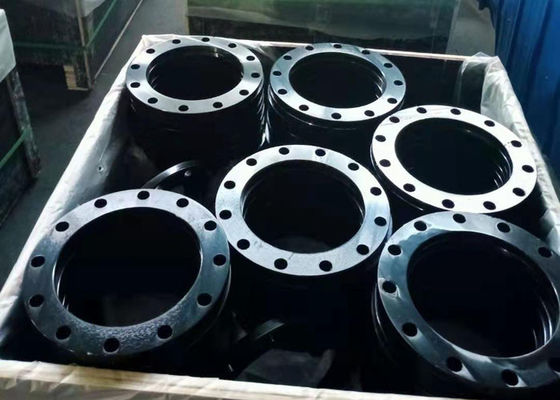

PACKAGE:PLYWOODEN CASE PACKAGE,WOOD PALLET PACKAGE
PAYMENT:L/C,T/T
DELIVERY TIME:15DAYS AFTER THE PAYMENT AND YOUR REQUIRMENTS
We are a leading manufacturer in flanges and pipefittings in China and our products have been exported to customers all over the world ,such as korea,russia,coutries and regions in middle east,southeast Asia,south America and west Europe.
the flanges and the pipefittings collection in th emost standard and material.
We think the quality is the soul of an enterprise,so we put the quality as the first consideration.and now if your quantity can reach 1-2 20 foot containers we can try our best to give you our some discounts ,hope we can get a chance to cooeprate with you and your esteemed company .
further information will be forwarded to you to promote cooperation .
Best regards
尺寸 | BL/PL | DIN/EN1092-1 SO | ANSI B16.5 SO | DIN/EN1092-1 WN | ANSI B16.5 WN | LP | PE | |
1/2" | 15 | 1260 | 2040 | 1940 | 2070 | 2000 | 1250 | 1300 |
3/4" | 20 | 1260 | 2040 | 1940 | 2070 | 2000 | 1250 | 1300 |
1" | 25 | 1260 | 1840 | 1740 | 1870 | 1800 | 1250 | 1300 |
1-1/4" | 32 | 1260 | 1580 | 1480 | 1610 | 1540 | 1250 | 1300 |
1-1/2" | 40 | 1260 | 1580 | 1480 | 1610 | 1540 | 1250 | 1300 |
2" | 50 | 1260 | 1490 | 1390 | 1520 | 1450 | 1250 | 1300 |
2-1/2" | 65 | 1200 | 1340 | 1240 | 1370 | 1300 | 1190 | 1240 |
3" | 80 | 1200 | 1340 | 1240 | 1370 | 1300 | 1190 | 1240 |
4" | 100 | 1200 | 1340 | 1240 | 1370 | 1300 | 1190 | 1240 |
5" | 125 | 1200 | 1340 | 1240 | 1370 | 1300 | 1190 | 1240 |
6" | 150 | 1200 | 1340 | 1240 | 1370 | 1300 | 1190 | 1240 |
8" | 200 | 1200 | 1340 | 1240 | 1370 | 1300 | 1190 | 1240 |
10" | 250 | 1200 | 1340 | 1240 | 1370 | 1300 | 1190 | 1240 |
12" | 300 | 1200 | 1340 | 1240 | 1370 | 1300 | 1190 | 1240 |
|
